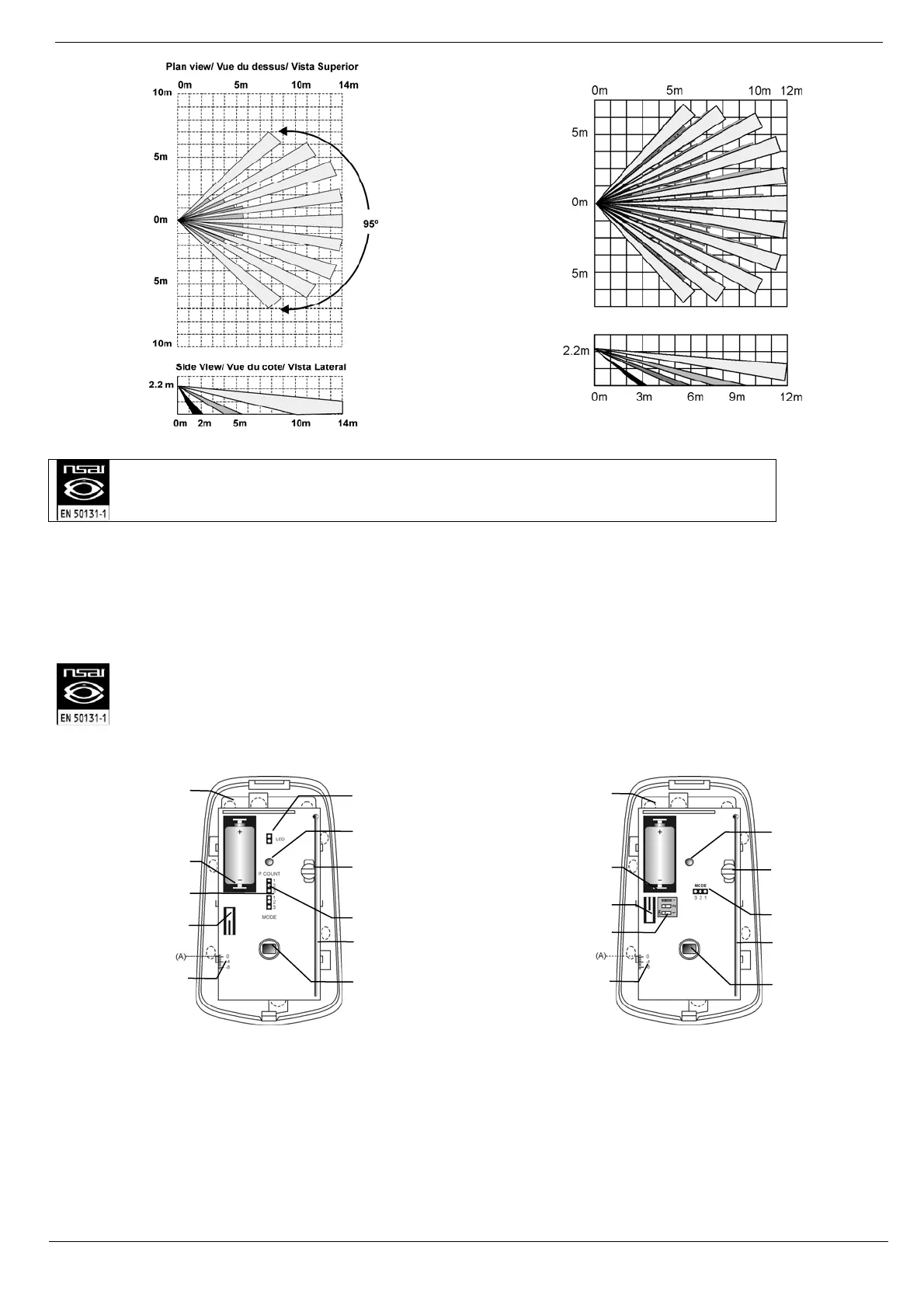

Figure B- 3: Lens Coverage Diagrams EL-2745 (left) and EL-2745PI (right)
EL-2745 complies with EN-50131 2-2 Grade 2 Class II Power Supply Type C
PIR Sensors (EL-2600/EL-2600PI/EL-2645/EL-2645PI)
The EL-2600, EL-2600PI, EL-2645 and EL-2645PI are intelligent wireless PIR sensors for use with the iConnect Control
System. All of these sensors implement a feature to combat the problem of multiple transmissions, which drastically
reduce the life of the batteries. After each transmission, there is a four-minute delay during which further transmissions
will not be sent. When batteries need replacing, the detector sends a low battery indication to the Control System.
Detectors that meet the EN-50131 standard, have a three-minute delay between
transmissions.
The EL-2600PI and EL-2645PI are designed for installations prone to nuisance alarms caused by pets or small animals.
Figure B- 4: PIR Sensors with Cover Removed – EL-2600/EL-
2600PI
igure B- 5: PIR Sensors with Cover Removed – EL-2645/EL-
645PI
Considerations Before Installation
Select a location from which the pattern of the detector is most likely to be crossed by a burglar, should
there be a break in.
Do not place bulky objects in front of the detector.
Avoid a location which comes in direct contact with radiators, heating/cooling ducts, mirrors and air
conditioners.
Tamper
Switch
LED
Jumper
LED
Indicator
Easy
Lock
Pulse Count
Jumper
Pyro
Sensor
Antenna
Battery
Holder
Mounting
Hole
Mode
Jumper
Vertical
Adjustment
Scale
LED
Indicator
Easy
Lock
Mode
Jumper
Pyro
Sensor
Antenna
Battery
Holder
Mounting
Hole
DIP-
Switch
Vertical
Adjustment
S
Tamper
Switch
Plan View
Side View
