Smoke Detector (EL-2603)
The EL-2603 is a brand-name smoke detector with an integrated Electronics Line 3000 transmitter.

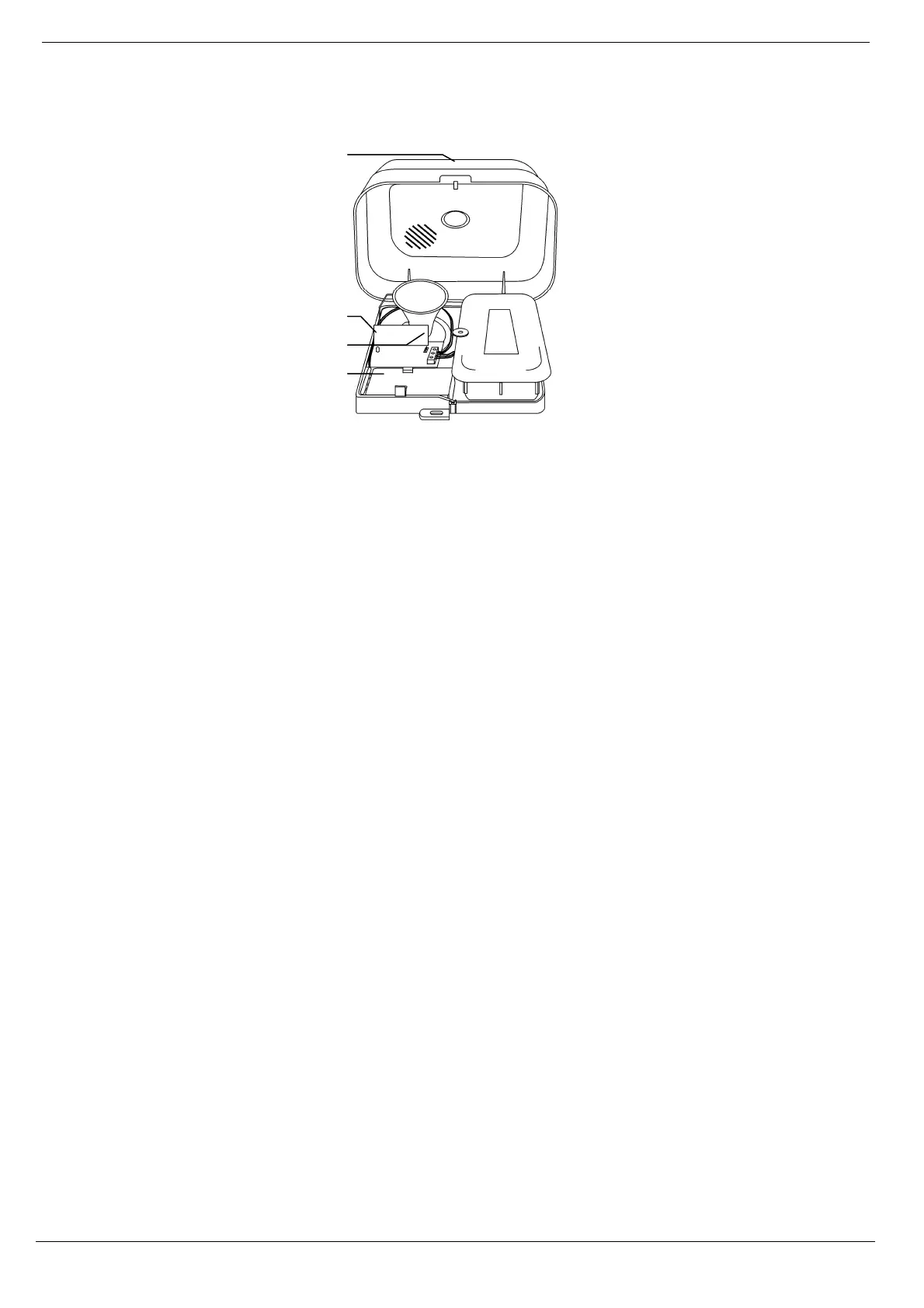

Figure B- 14: EL-2603 (Cover Open)
Installation Procedure
The following procedure explains the installation of the EL-2603 wireless smoke detector and its registration to the
receiver. For further information regarding the smoke detector’s location, test procedures, maintenance and
specifications, refer to the manufacturer’s installation instructions provided with this product.
To install smoke detectors:
1. Open the cover by lifting the opening tab while firmly holding the base with your other hand.
2. Push the cover backwards to separate the cover from the base.
3. Install a 9V battery into the detector’s battery snap.
4. Insert the Test jumper; the EL-2603 enters Test mode and the LED flashes every few seconds.
5. From the Programming menu, select Devices, Zones [911].
6. Select the zone to which you want to register the transmitter; the system initiates Registration mode.
When Save? appears on the Control System’s LCD display, press .
7. After registration, remove the Test jumper and place it over one pin for storage.
8. Before permanently mounting the unit, test the transmitter from the exact mounting position.
9. Attach the mounting base to the ceiling using the screws provided.
10. Replace the cover onto its hinges and close the cover until it snaps together with the base.
Smoke Detector (EL-2630EN)
The EL-2603EN is a brand-name smoke alarm and transmitter designed for use with Electronics Line 3000’s supervised
wireless range of receivers.
Read This First
A smoke alarm is an early warning device. Used correctly it can give the occupants of the house
valuable extra time to escape. When the alarm sounds, immediately evacuate the premises before
beginning any investigation.
A smoke alarm does not prevent fires.
Proper protection usually requires more than one smoke alarm.
Test weekly.
Considerations for Locating the Smoke Alarm
Sufficient smoke must enter the smoke alarm before it will respond. The smoke alarm needs to be within 10 paces
(7.5m) of the fire to respond quickly. The smoke alarms need to be in positions where they can be heard throughout the
