MES53xx, MES33xx, MES23xx Ethernet Switch Series 20
3
OOB
Out-of-band 10/100/1000 Base-T (RJ-45) port for remote device
management.
Management is performed over network other than the transportation
network.
4
F
Functional key that reboots the device and resets it to factory default
configuration:
- pressing the key for less than 10 seconds reboots the device.
- pressing the key for more than 10 seconds resets the device to factory
default configuration.
5
[1-24]
Slots for 1GSFP transceivers.
6
[11-12, 23-24]
Combo ports: 10/100/1000 Base-T (RJ45) ports
7
XG1, XG2
XG3, XG4
Slots for 10GSFP+/ 1GSFP transceivers.

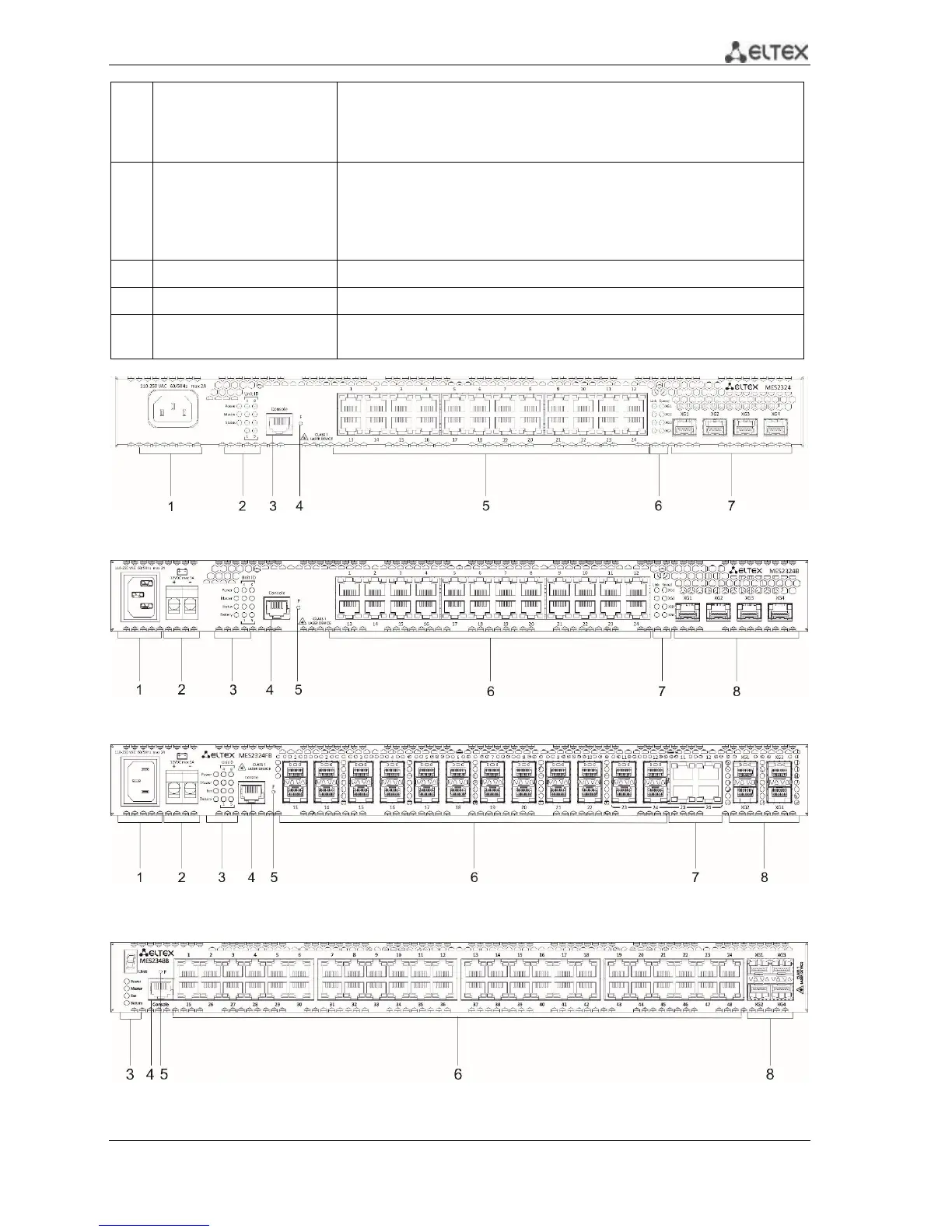

Figure 3. MES2324, front panel
Figure 4. MES2324B, front panel
Figure 5. MES2324FB, front panel
Figure 6. MES2348B, front panel
