ELTRA ELEMENTRAC ONHp2 User Manual

Installation
31
b. Connect the water inlet of the analyser to connection 2 of the heat exchanger.
6. Connect the heat exchanger to the operator's water supply:
a. Connect the inflow of the water supply to connection 3 of the heat exchanger.
b. Connect the drain of the water supply to connection 2 of the heat exchanger.
7. Connect the control line of the heat exchanger to the connection for the heat exchanger
on the rear side of the analyser.
8. Check all water connections for any leaks.
The connection of the supplied heat exchanger is now completed.

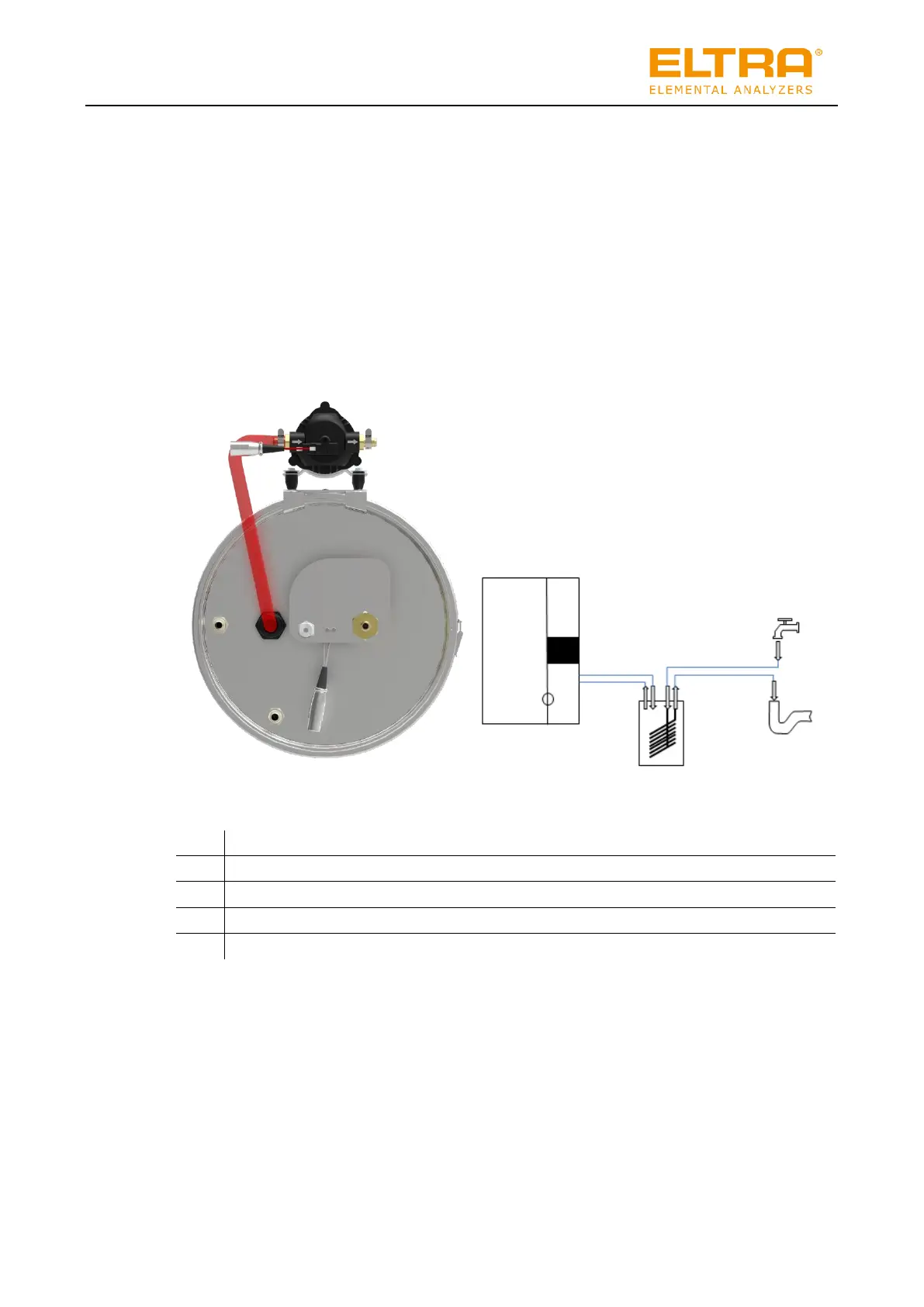

Fig. 4: Water tank connection
1
Connection for the water outlet
2
Connection for the water inlet
3
Connection for the operator’s water supply
4
Connection for the operator’s water disposal
5
Control line to the analyser
4.5.2 Connection of a third-party heat exchanger
When connecting and operating the heat exchanger, please observe the manufacturer's operating
instructions.
1. Fill the heat exchanger with water.
2. Connect the water hoses of the analyser to the heat exchanger:
a. Connect the water outlet of the analyser to the corresponding connection of the
heat exchanger.
1
O
O
N
H
4
2
3
5
3
4
2
1
