ELTRA ELEMENTRAC ONHp2 User Manual
4
of 1
of 1 rating
96 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Spare parts
78
11
Spare parts
11.1
Spare parts
Analyser
11.1.1
Front side of the dev
ice
Fig
.
7:

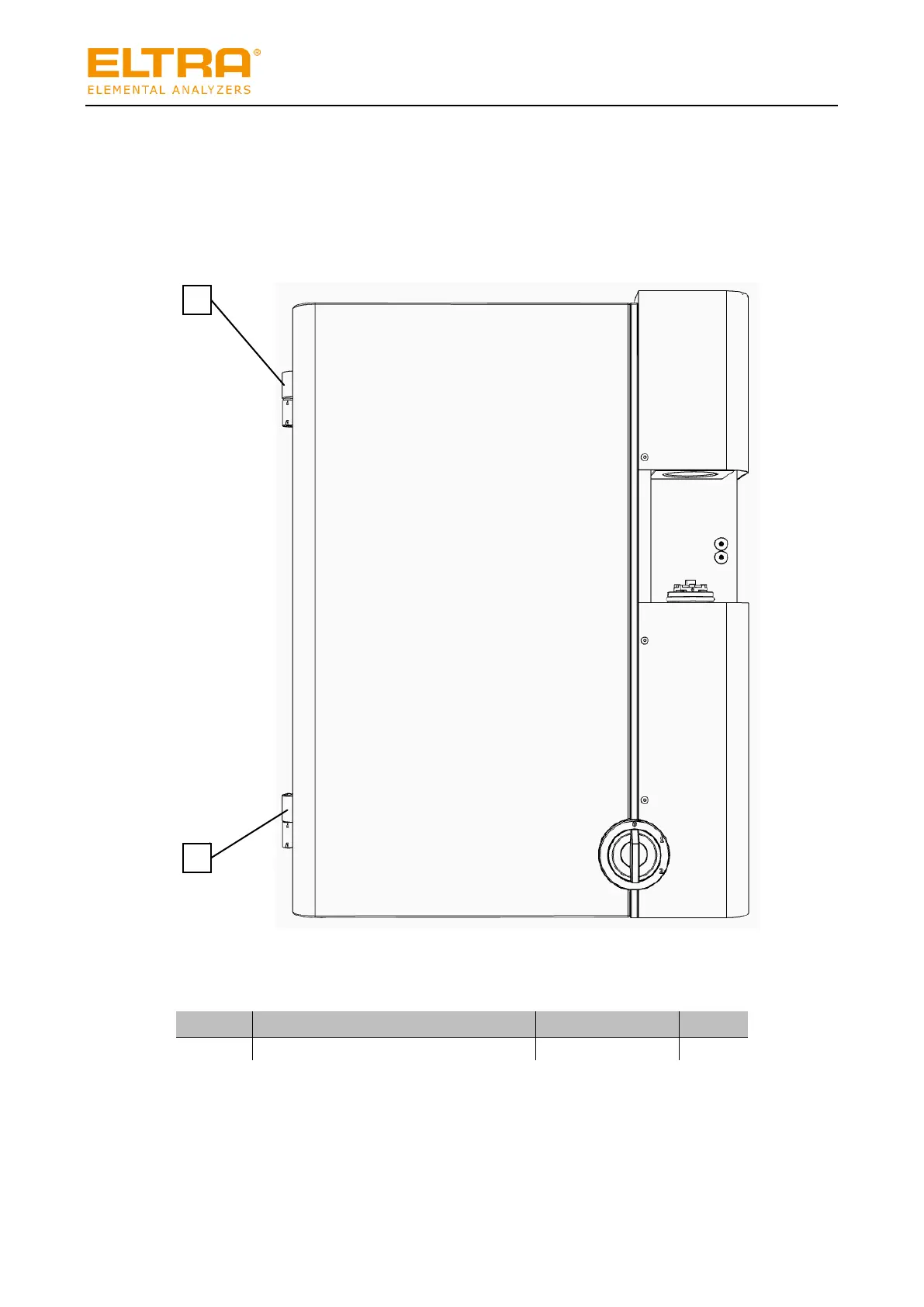

Figure: The front side is close
d
Position
Name
Item number
Quantity
1
Hinge with eccentric p
in
88400-0288
2
1
1
77
79
Table of Contents
Table of Contents
4
Additional Operating Instructions
6
Explanations of Signs and Symbols
6
Disclaimer
6
Copyright
6
Safety
7
Explanations of the Safety Instructions
8
General Safety Instructions
9
Repairs
10
Intended Use
10
Improper Use
10
Safety Symbols on the Device
11
Emergency Stop
12
Remaining Safety Hazards
12
Description
18
Analyser ONH-P 2
18
Front Side
18
Rear Side of the Analyser
20
Auto Cleaner
22
Installation
23
Transport and Unpacking
23
Setting up
25
Filling the Reagent Tubes
27
Providing the Gas Supply
29
The Cooling Water Supply Is Provided
30
Connecting the Supplied Heat Exchanger
30
Connection of a Third-Party Heat Exchanger
31
Connect the Device to the PC
33
Provide Power Supply
33
Installing the Auto Cleaner (Optional)
34
Commissioning
38
Commissioning and Setting up the ELEMENTRAC ONH-P 2
38
Commissioning and Setting up the Auto Cleaner (Optional)
38
Operation of the Device
41
Technical Data
44
Technical Data ELEMENTRAC ONH-P 2
44
Name Plate ELEMENTRAC ONH-P 2
46
List of Standards
47
Troubleshooting on the ELEMENTRAC ONH-P 2
48
Cleaning
48
Exterior Cleaning
48
Cleaning the Dust Trap
49
Cleaning the Sinter Filter
49
Cleaning the Furnace Area
50
Maintenance
51
Overview of the Maintenance Work
51
Removing and Installing of Reagent Tubes
53
Reagents
57
Replacing the Reagent Tube of the Catalyst Furnace
58
Filling of Reagent Tubes
61
Overview of the Reagent Tubes
62
Fill the Reagent Tube of the Catalyst
63
Fill the Reagent Tube of the Gas Processing (Thermal Conductivity Cell, Carrier Gas)
64
Fill the Dust Trap of the Reagent Tube
65
Filling the Reagent Tube of the Water Trap
66
Filling the Reagent Tube of the CO Converter
67
Replacing the O-Rings
67
Maintenance in the Furnace Area
68
Changing the Seal of the Upper Furnace Closure
68
Changing the Seal of the Lower Furnace Lock
70
Replacing the Upper Electrode
71
Replacing an Electrode
71
Complete Electrode Replacement, Including Screws
73
Replace Lower Electrode (Graphite Tip)
76
Replacing the Brush of the Auto Cleaner
77
Spare Parts
78
Spare Parts Analyser
78
Front Side of the Device
78
Front Side (Interior View)
79
Lower Furnace
81
Upper Furnace
82
Rear Side of the Device
83
Left Side of the Device
84
Left Side, Devgate
85
Left Side, Inlet Valves
86
Valve Block, Compressed Air Control
87
Right Side of the Device
88
Upper Mounting Plate
89
Auto Cleaner Spare Parts
91
Fuses
93
Consumables
93
Consumables for Auto Cleaner
93
Decommissioning
94
Storage
94
Disposal
95
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ELTRA ELEMENTRAC ONHp2 and is the answer not in the manual?
Ask a question
ELTRA ELEMENTRAC ONHp2 Specifications
General
Brand
ELTRA
Model
ELEMENTRAC ONHp2
Category
Measuring Instruments
Language
English
Related product manuals
ELTRA ELEMENTRAC CS-i
86 pages
ELTRA Thermostep TGA
75 pages
ELTRA CS-2000
160 pages
ELTRA CS-800
158 pages
ELTRA CS800
28 pages
