ELTRA ELEMENTRAC ONHp2 User Manual

Description
22
3.1.3 Auto cleaner

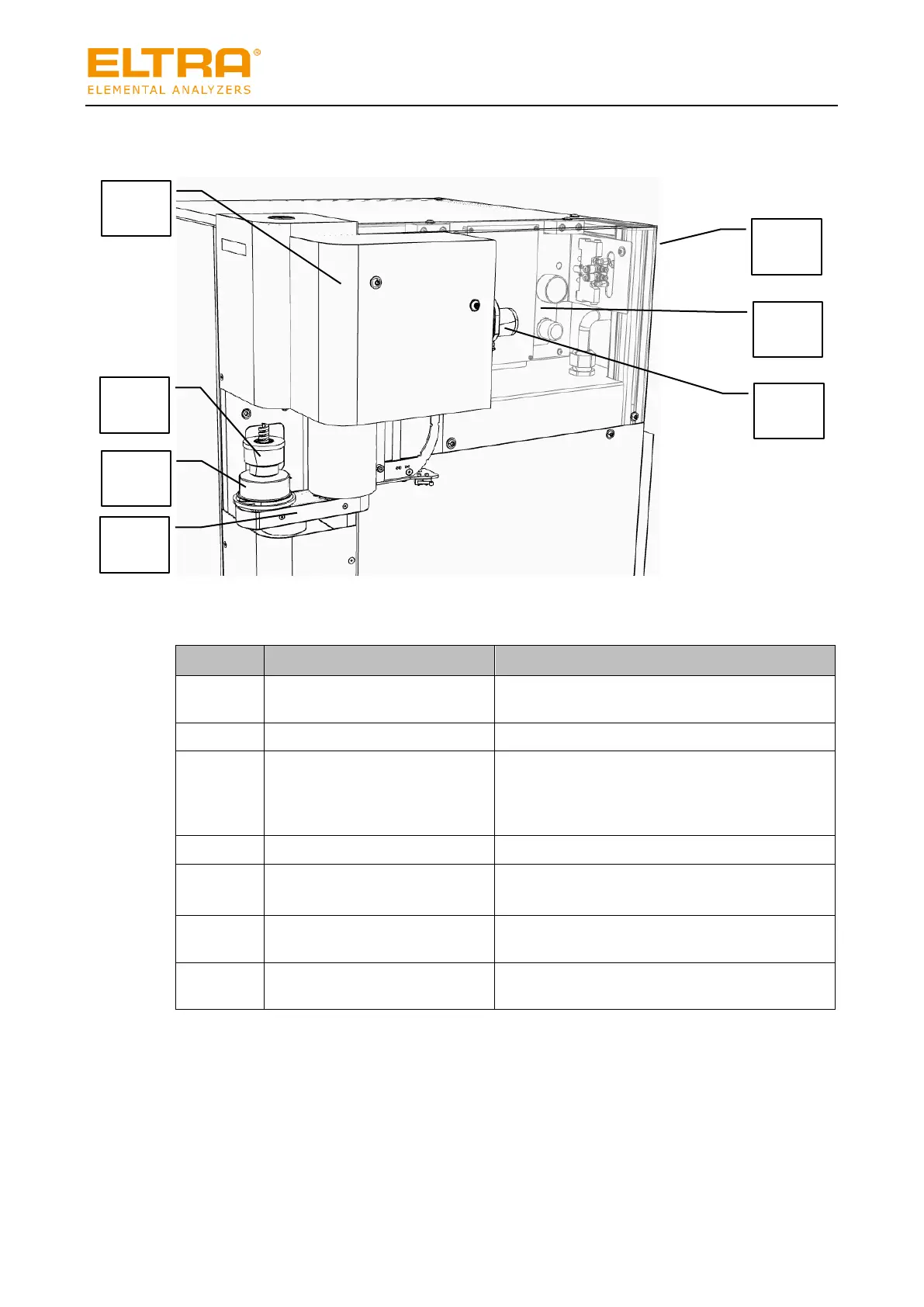

Fig 2: Auto cleaner
Position
Component
Description
1
Auto cleaner
Housing of the auto cleaner with integrated dust
extraction.
2
Brush
Cleaning brush of the auto cleaner.
3
Dust catcher
Ensures that the dust produced during cleaning is not
distributed throughout the room. The dust is
vacuumed up in the housing of the auto cleaner at the
end of the cleaning process.
4
Arm of the auto cleaner
Automatically moving arm of the auto cleaner.
5
Hose clip
(rear side not visible)
The hose of the vacuum cleaner can be fitted to the
analyser here.
6
Control assembly
Electro-pneumatic control assembly for the auto
cleaner.
7
Vacuum cleaner connection
Connection for the vacuum cleaner hose. Vacuum
cleaner is not part of the scope of delivery.
1
2
3
5
6
7
4
