4.8 Installing the auto cleaner (optional)
The following conditions must be met before installing the auto cleaner:
• The device is set up; see “Setting up“.
• The reagent tubes are filled; see “Filling reagent tube”.
• The device is connected to the PC; see “Connecting device with PC”.
• The gas supply has been created; see “Creating gas supply”.
• The power supply has been created; see “Creating power supply”.
The following tools are required to assemble the auto cleaner:
• Hexagon screwdriver 2.5 mm
• Hexagon screwdriver 4 mm
• Hexagon screwdrive 5 mm
• Open-end spanner 8 mm
Assemble the auto cleaner as follows:
1. Disconnect compressed air supply and power supply.
2. Dismantle the top right service cover of the analyser.

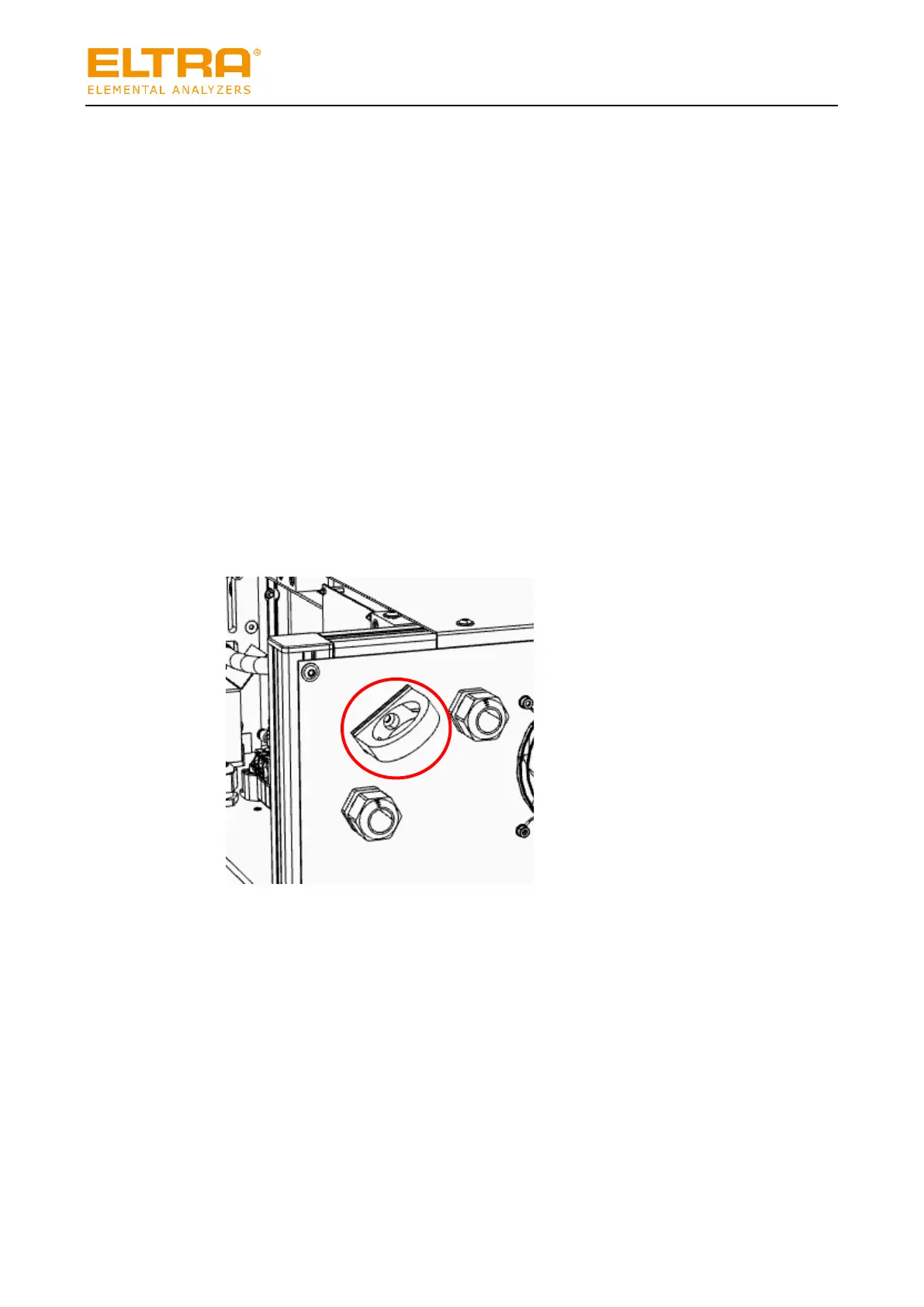

3. Fix the pipe clip for the vacuum cleaner line to the rear side of the analyser and secure it
with an M5x10 and nut.
.
