Installation
35

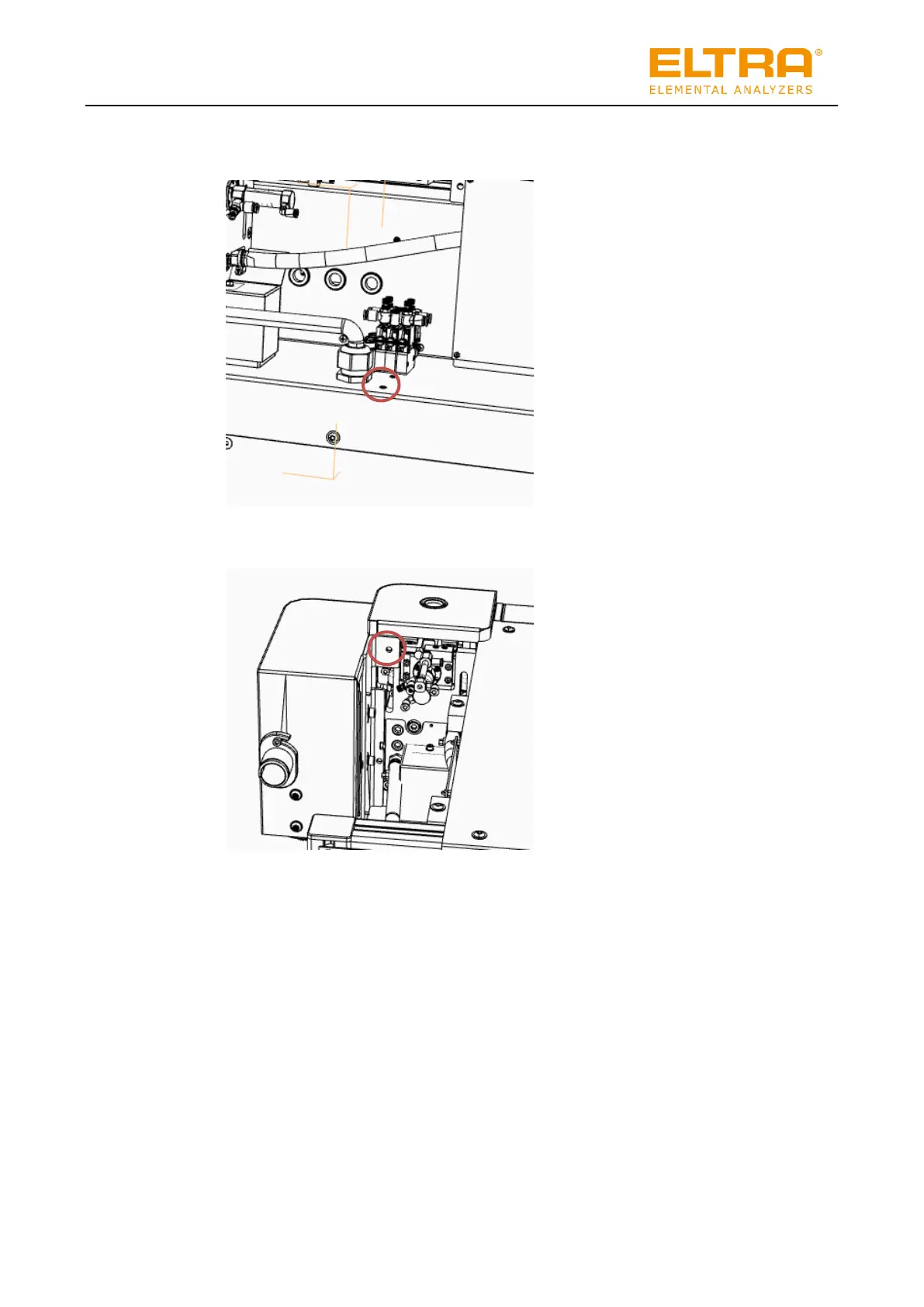

4. Assemble the cable clip and secure it with an M20+ U washer.
5. Remove the compressed air line P4 from the valve unit.
6. Assemble the auto cleaner and secure it initially only with the top screw M6x20.
7. Move the lines of the auto cleaner in the service area:
a. Please route the cables with compressed air lines behind the already installed
valve unit for the oven.
b. Lay the control lines through the cable clip and fix the line loosely with a cable tie.
