Maintenance

10.5.1 Overview of the reagent tubes

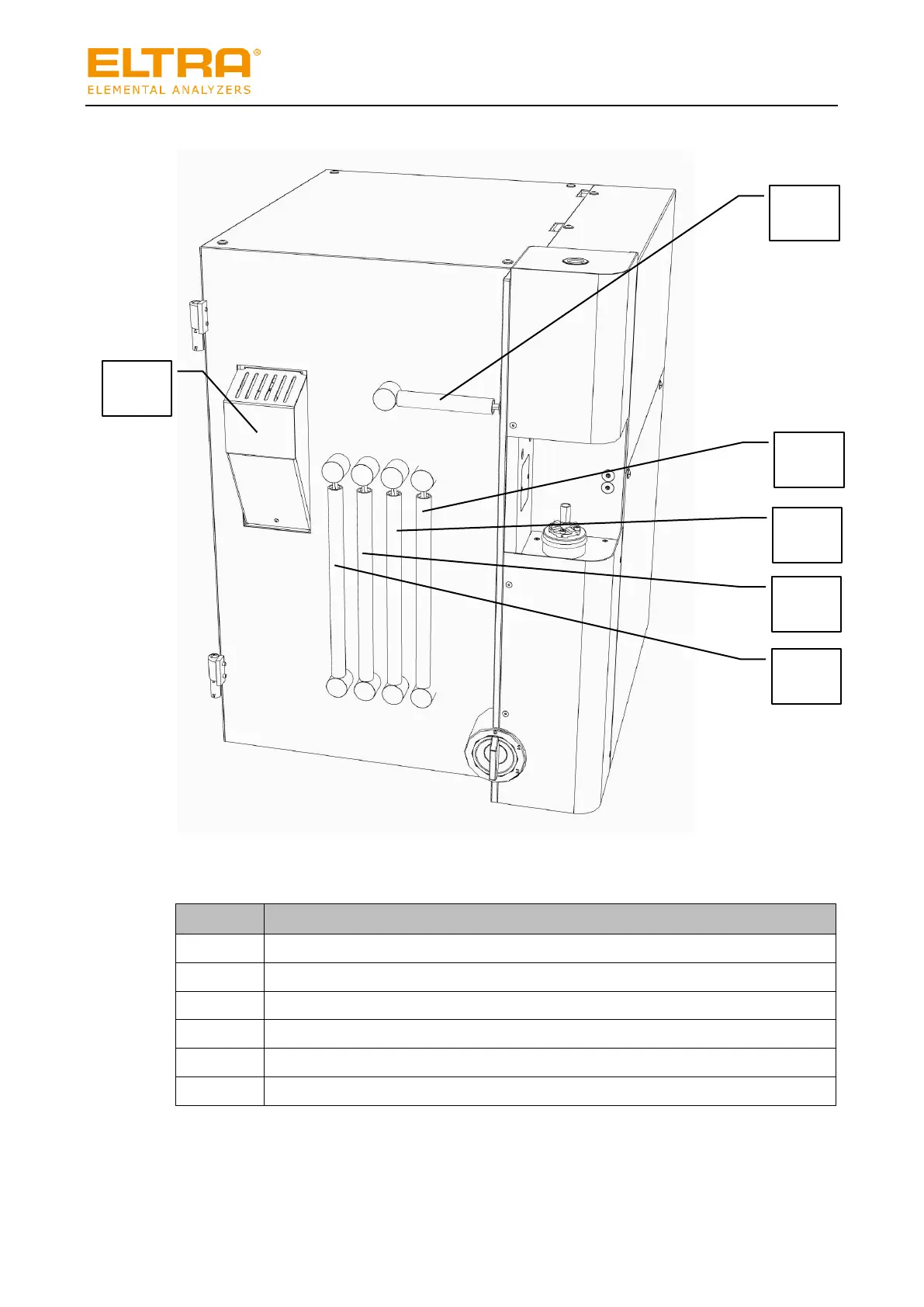

Figure 5: Front side of the analyser with the device door open

Position

Component

Dust trap, sinter filter

Water trap after the catalyst furnace, anhydrone

CO converter, contactors reagent

Gas processing for the carrier gas, anhydrone / sodium hydroxide

Gas processing for the thermal conductivity cell, anhydrone / sodium hydroxide

Catalyst, copper oxide
