ELTRA ELEMENTRAC ONHp2 - Left Side of the Device

Spare parts
84
11.1.6 Left side of the device
CAUTION
C46.0000
Risk of injury
Moving parts
− There are fans inside the left side of the analyser. Spinning fans can cause
injuries to fingers.
• Never reach into a rotating fan.

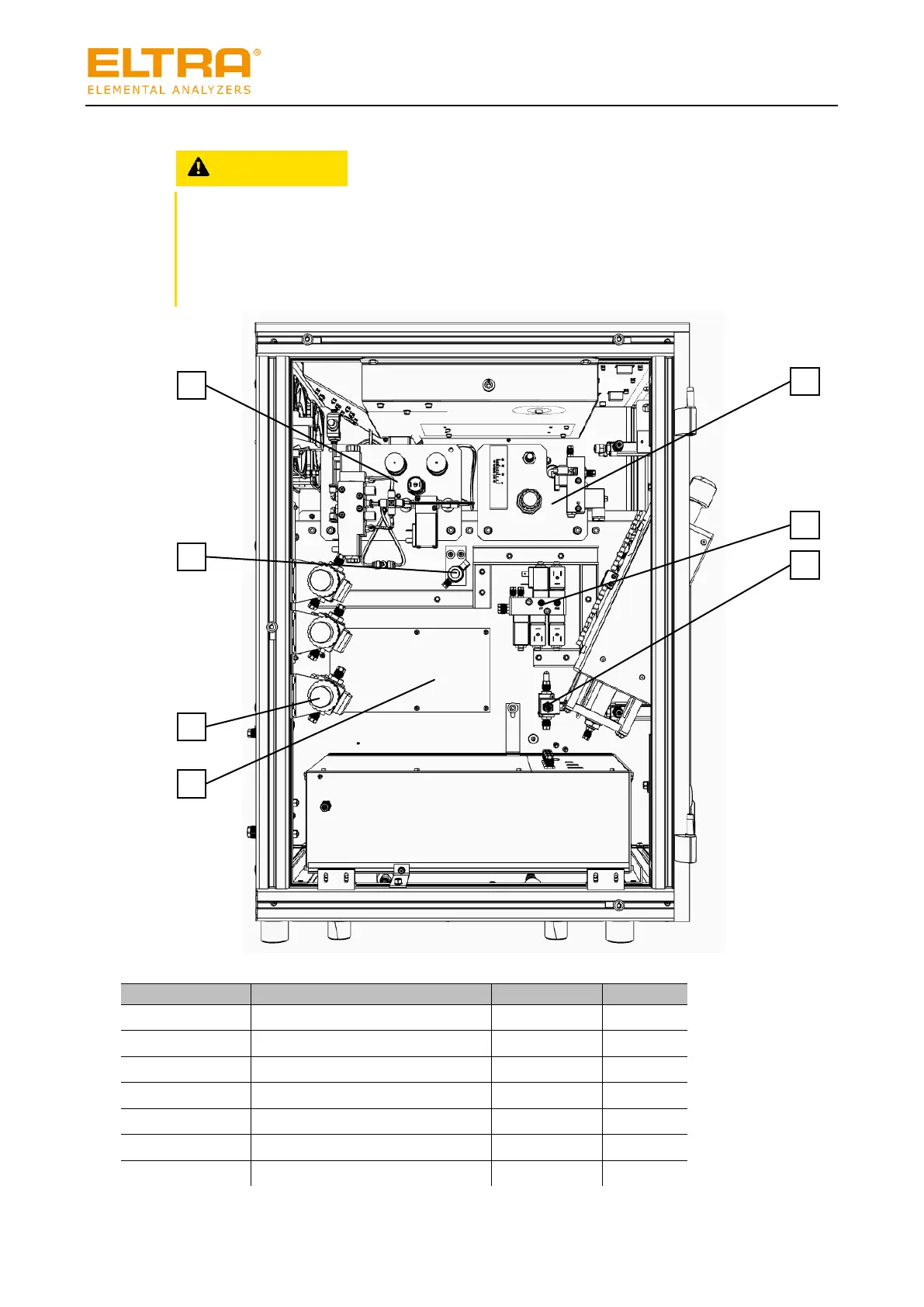

Fig. 12: Left side
Position
Name
Item number
Quantity
1
Gas calibration unit (optional)
27000-2021
1
2
Valve block, complete
27000-2057
1
3
Gas valve, complete
11440-2001
1
4
I/O circuit board
27000-5102
1
5
Pressure regulator, complete
11492-2001
3
6
Proportional valve
11000-2001
1
7
Valve block analytics, complete
27000-2024
1
1
3
5
2
7
4
6
