EMC VNX5500 File Installation Guide
Installing the standby power supply
1. Slide the SPS enclosure into the cabinet rails at the bottom of the rack as shown in Figure 7.
Ensure that the enclosure is fully in the cabinet. The rail stops in the back will seat into the
back of the enclosure at the correct depth, and the front of the enclosure will be flush with the
cabinet face.
2. Attach, but do not tighten, the bezel brackets by inserting the screws through the brackets,
the SPS component, the cabinet rail and then into the gang rail.
3. Do not tighten the screws completely until all of the components are in place.

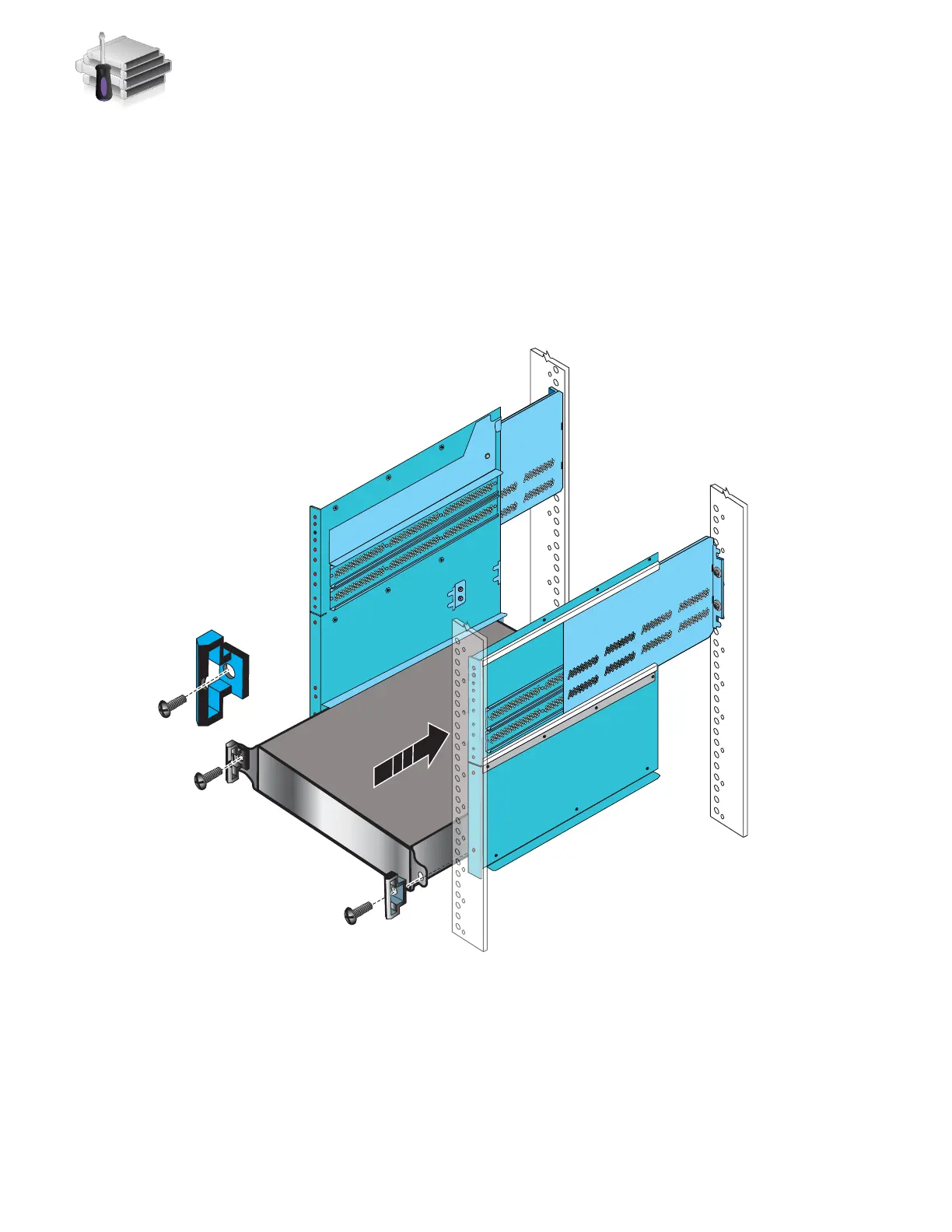

Figure 7 Installing the standby power supply
Standby power
supply enclosure
Front
SPS bezel bracket
The indentation is
toward the inside of
the rack.
VNX-000195
