EMC2 VNX5500 - Cabling for Two Blade Enclosures

38 EMC VNX5500 File Installation Guide
Cabling for two blade enclosures

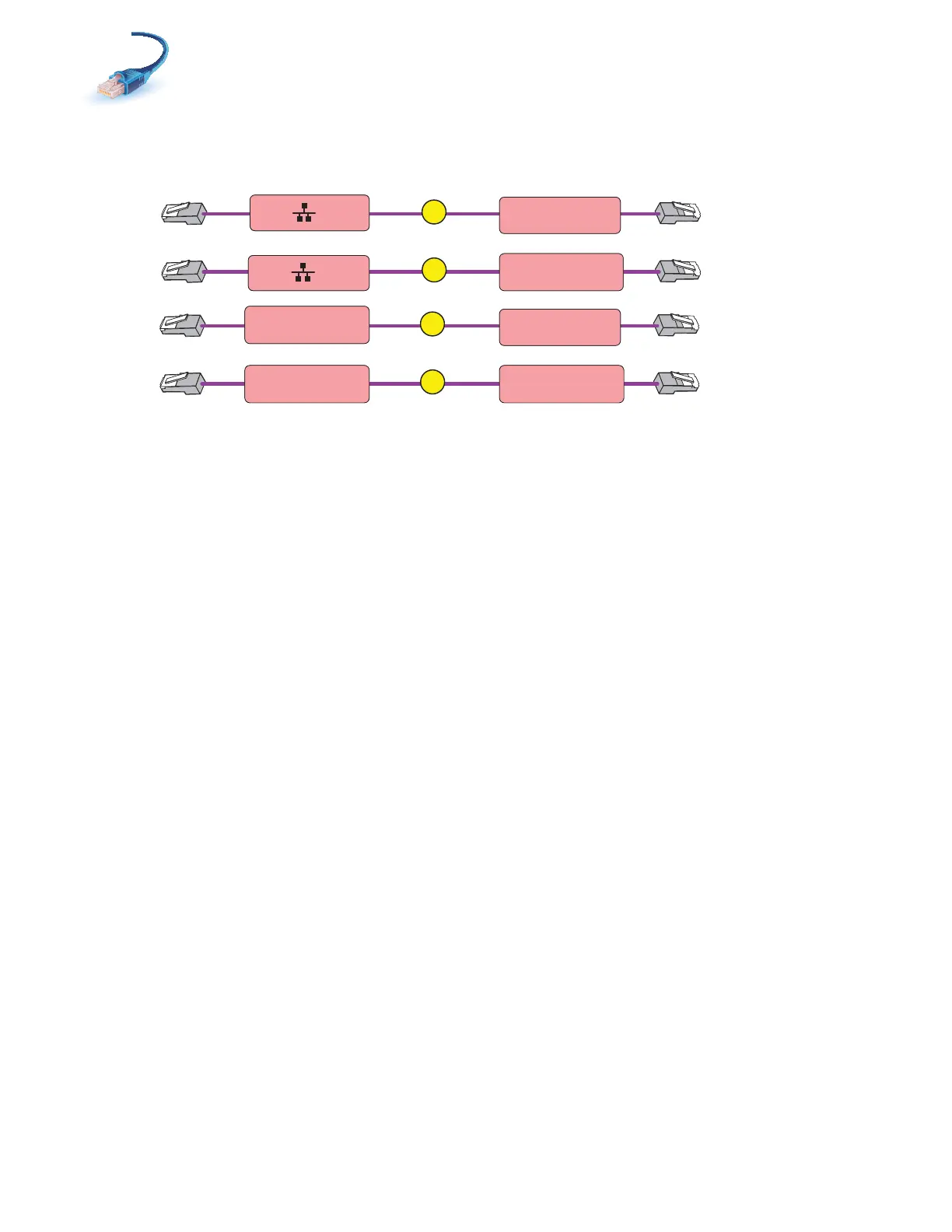

1. Locate the cables as shown in Figure 26.
Figure 26 Blade enclosure cables
A
B
SP A MGMT
Blade Encl 1
MMA Port 0
SP B MGMT
Blade Encl 1
MMB Port 0
C
D
Blade Encl 1
MMA Port 1
Blade Encl 1
MMB Port 1
Blade Encl 0
MMB Port 0
Blade Encl 0
MMA Port 0
VNX-000254
