EMC VNX5500 File Installation Guide
Verify DAE Status
The illustrations used here focus on the LEDs that you need to verify that the system powered up
correctly. The
VNX5500 Hardware Information Guide
provides more details on all LEDs.
Table 5 lists the LEDs that you need to focus on to ensure that 3U and 2U DAEs powered up
correctly.
Verify 3U, 15 3.5'' drive DAE status
1. Verify that the status of a 3U DAE Power LED located on the front is solid blue and the DAE
Fault/Status LED is off as shown in Figure 45.
2. If any fault LEDs are on, or if any power LEDs remain flashing, contact your authorized service
provider.

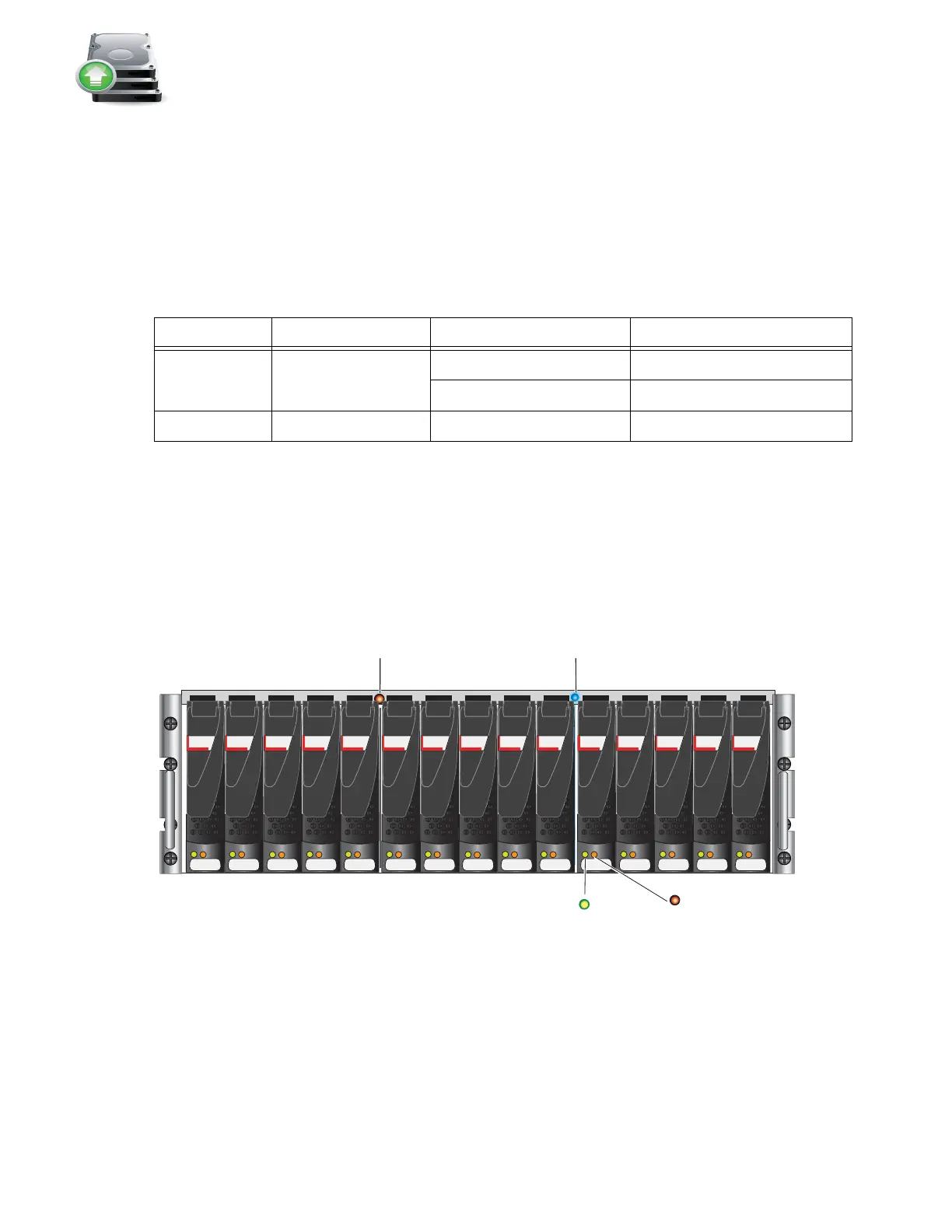

Figure 45 3U, 15 3.5'' drive DAE LEDs
Table 5 3U and 2U DAE LEDs
LEDs Location State/Color Description
DAE
Fault/Status
Front Off OK
Amber Fault has occurred
DAE Power Front On/Blue OK
14
0
3U, 15 3.5” drive Disk-array enclosure
VNX-000743
DAE fault DAE power
Front
SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS
Disk drive
power
Disk drive
fault
