Installing components 23

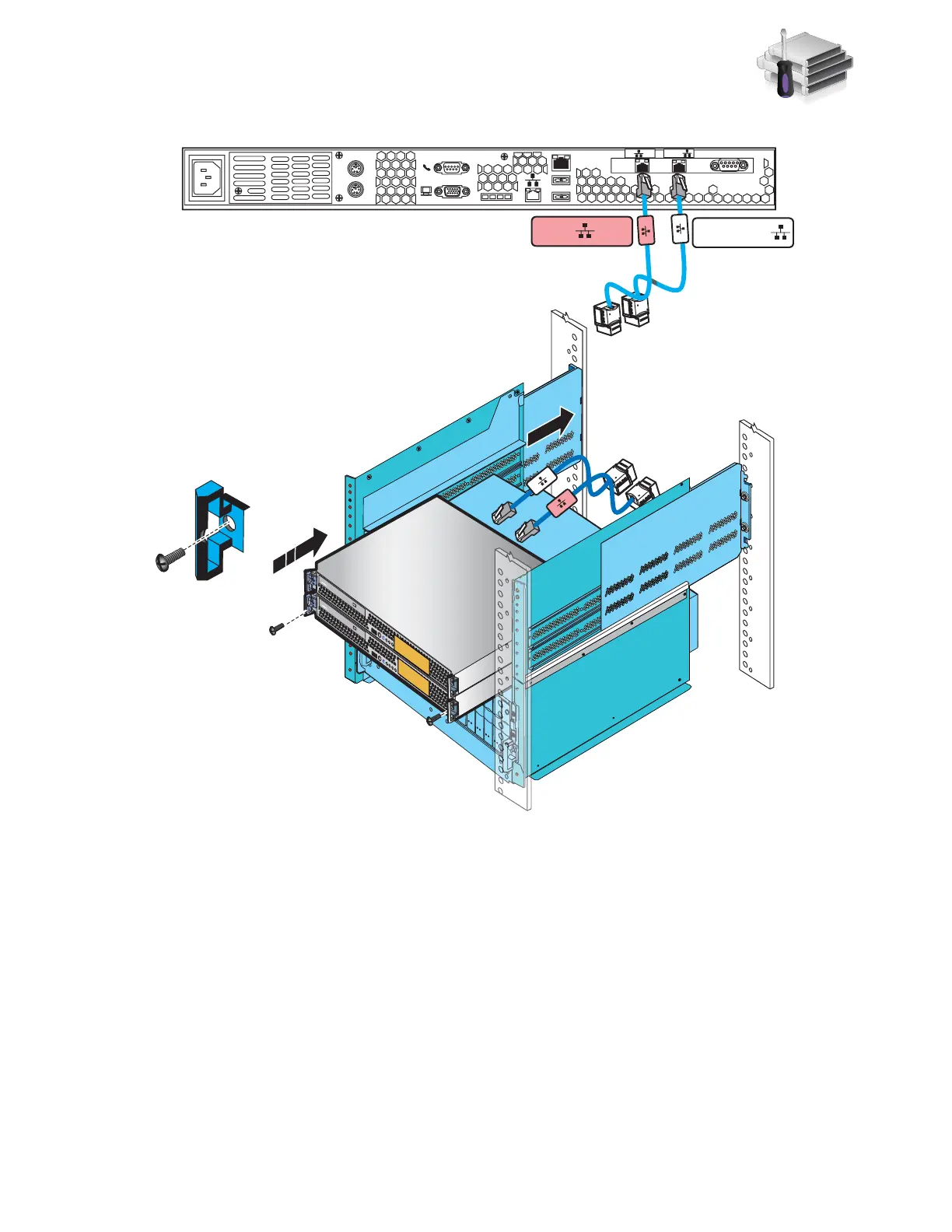

Figure 11 Installing the Control Station(s) and extension cables
Serial
console
MGMT
CS
B
MODEM socket
VGA plug
A
IPMI port
B
MGMT
CS0 B
CS0 MGMT
Control Station 0 Rear
Front
DVD
DVD
Control Station 0
Disk processor enclosure
Standby power supply
Control Station 1
CS bezel bracket
The indentation is
toward the inside of
the rack.
VNX-000197
