ControlWave Instruction Manual (CI-ControlWave)
Loosen the
fasteners at the
top and bottom
of the terminal
board.

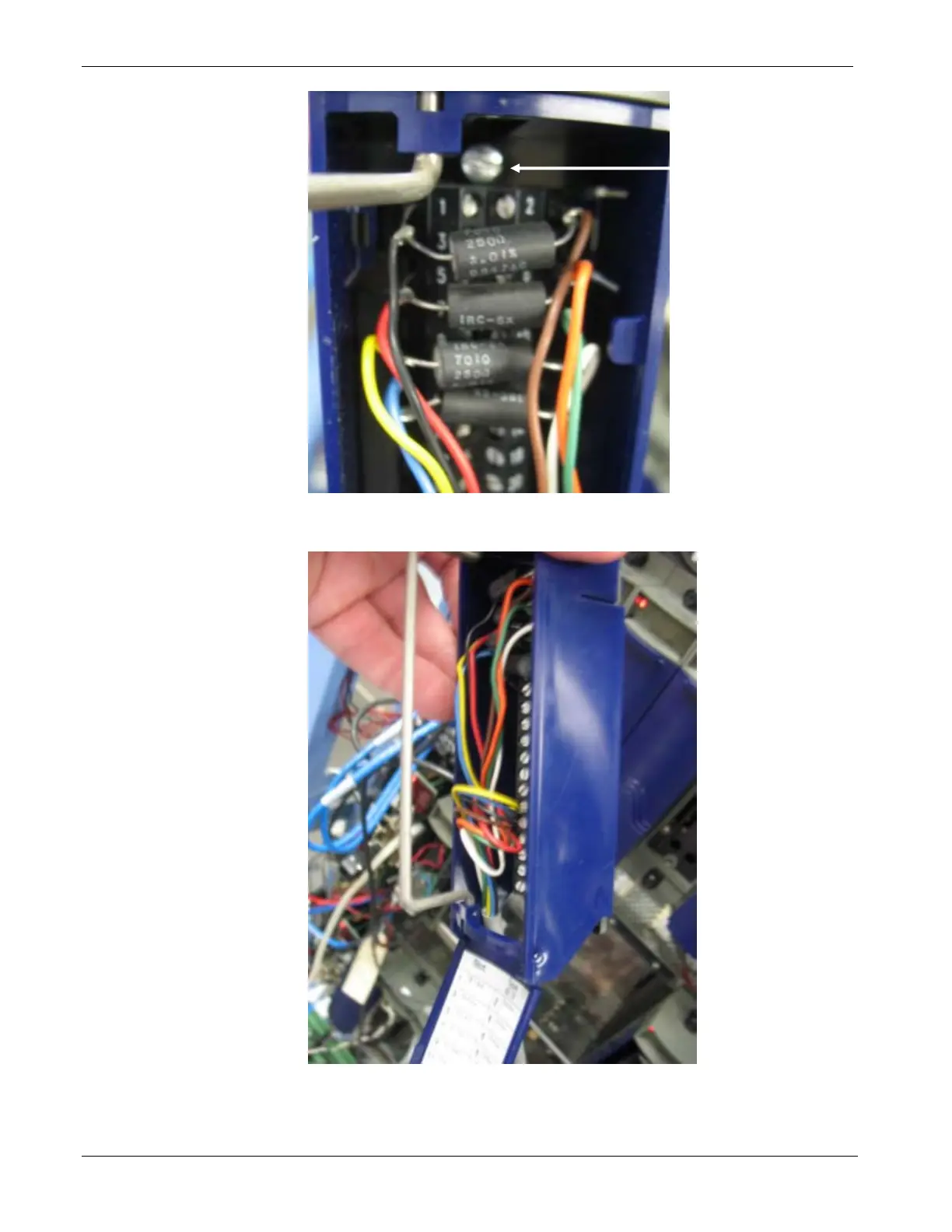

Figure 5-7. Loosening the Top Fastener
Figure 5-8. Terminal Block Board and Terminal Housing Assembly Separated from the Rest of the
Module
