MODEL 1000 SEP 2005
INSTALLATION AND SETUP
3-93

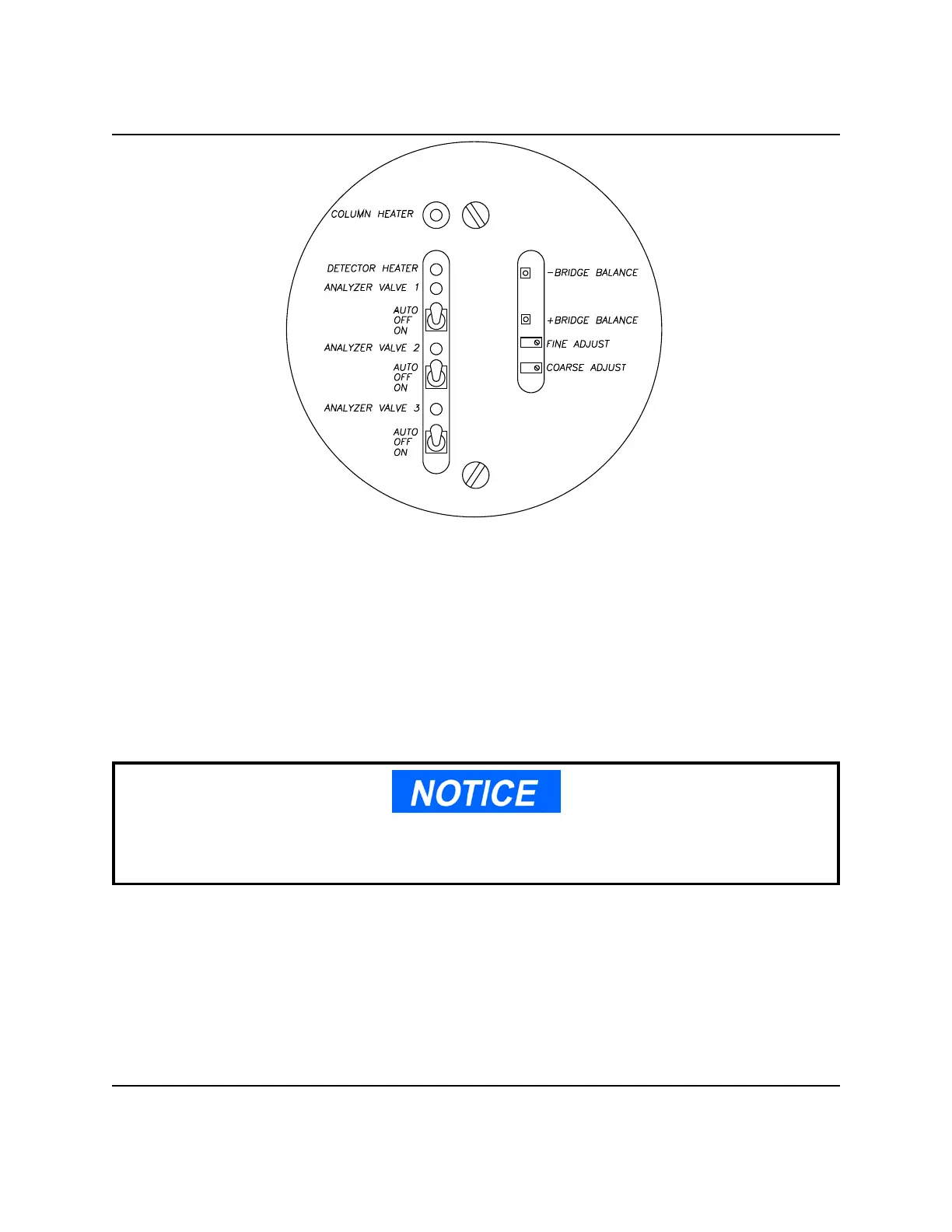

Figure 3-38. Analyzer Valve Switches, Upper Enclosure
(3) Ensure that all of the Analyzer Valve Switches, upper enclosure, are set to the AUTO
position.
(4) Ensure that the carrier gas bottle valve is open.
(5) Set the carrier gas line pressure at 110 psig. Use the dual stage regulator at the carrier gas
bottle to adjust pressure.
Do not use the "Carrier Pressure Adjust" valve (on the Flow Panel of the Analyzer) to adjust
carrier gas line pressure. That valve is factory-set and should not be adjusted.
(6) Allow the Analyzer system temperature to stabilize and the carrier gas lines to become fully
purged with carrier gas.
(a) A period of 4 to 8 hours (or overnight) is recommended, during which all of the
settings described in steps (1) through (5) are maintained. No other settings should
be made.
