EQUIPMENT DESCRIPTION
2-7

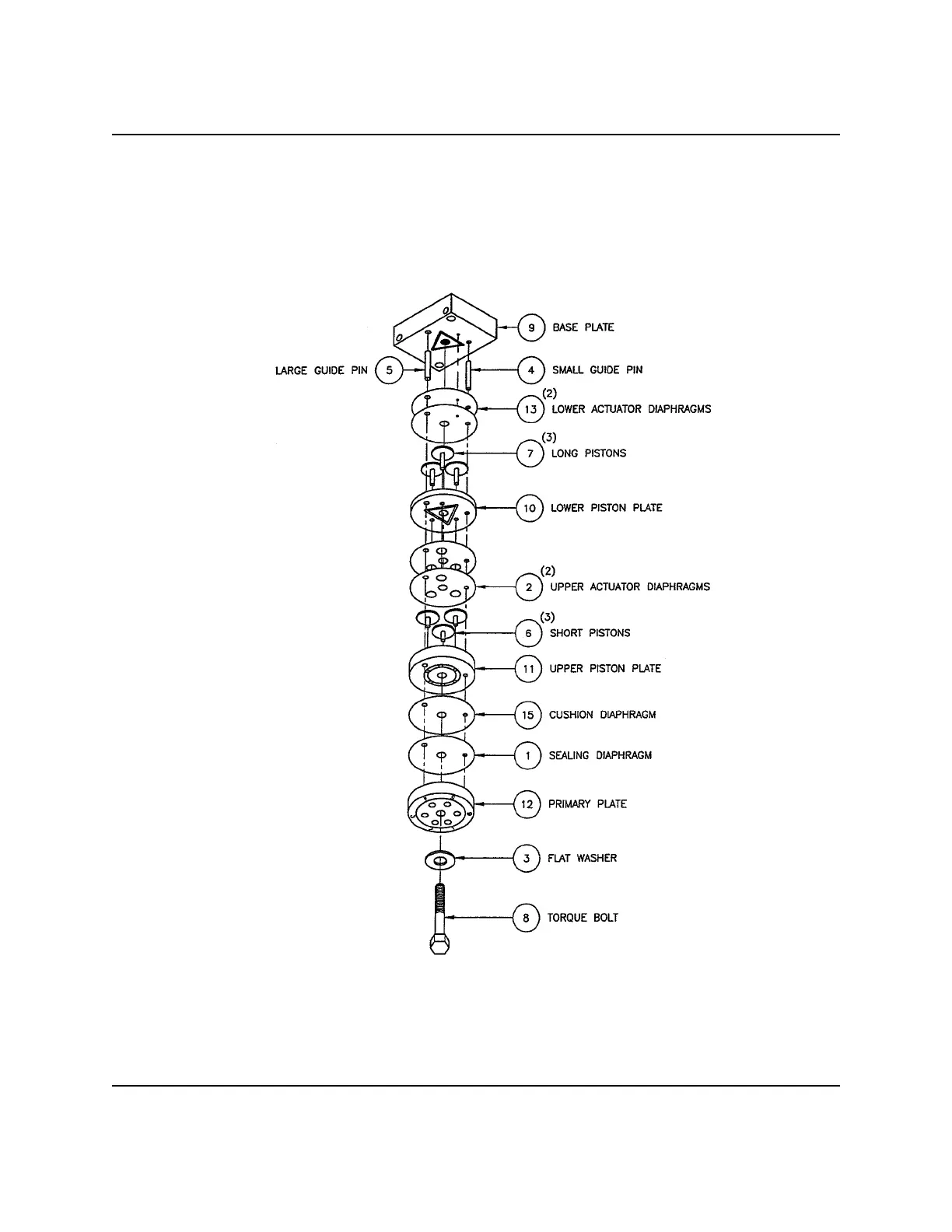

Figure 2-2. Chromatograph Valve
2.2.2 Chromatograph Valves
A chromatograph valve is shown in Figure 2-2 in exploded view. Its pistons are pneumatically
actuated in both switching directions by the actuating assemblies located below the primary plate.
