3.4.4.13 Silicon Disk Configuration
The GC uses the M-Systems' Disk OnChip (DOC) device as a Solid State Disk drive. This section
documents the required hardware configuration for the DiskOnChip device used for the GC. The
Silicon disk array is memory mapped into a 32K byte hole at segment E800H and has an I/O control
register at TECH.

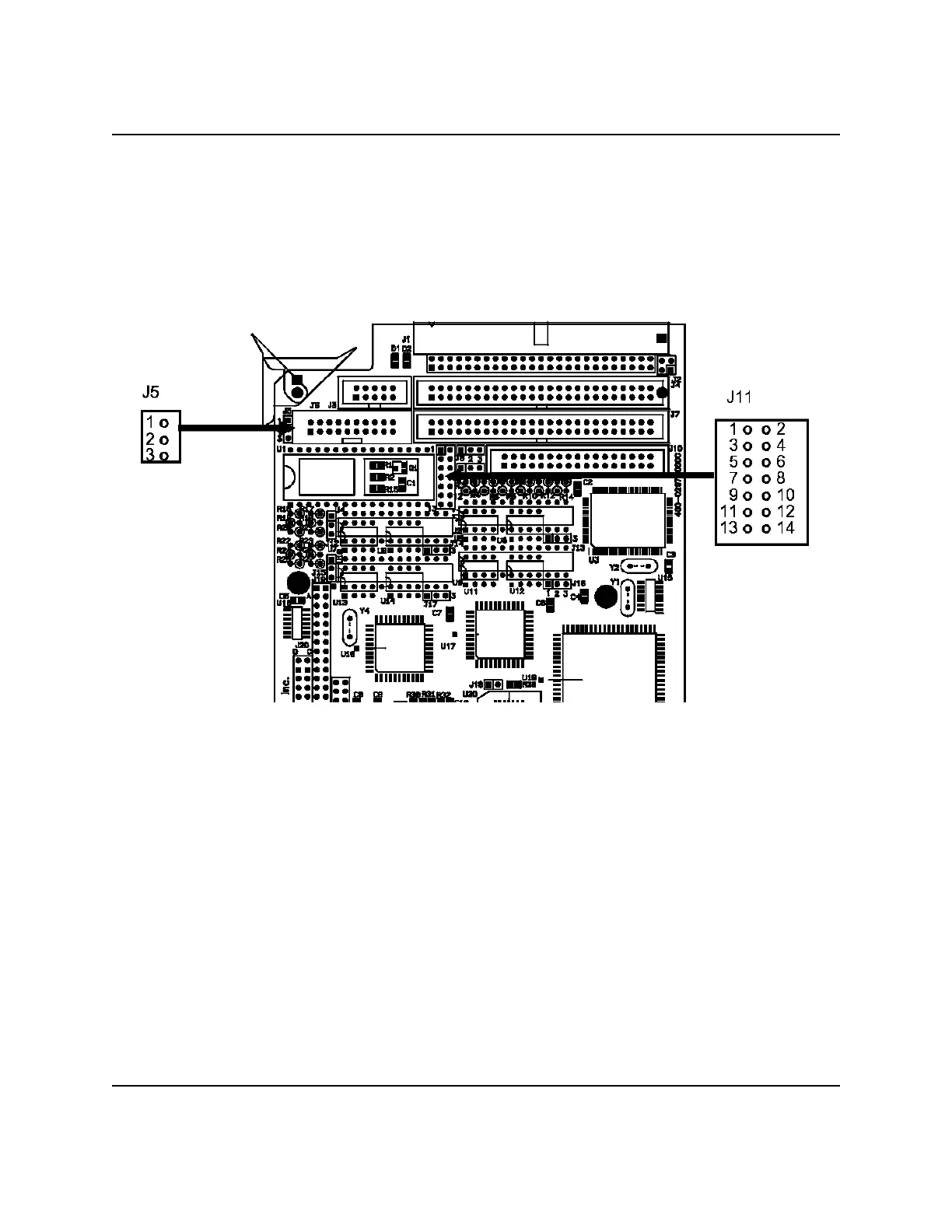

Figure 3-29. Disk Configuration
