OPERATION FROM LOCAL KEYPAD AND DISPLAY
4-5

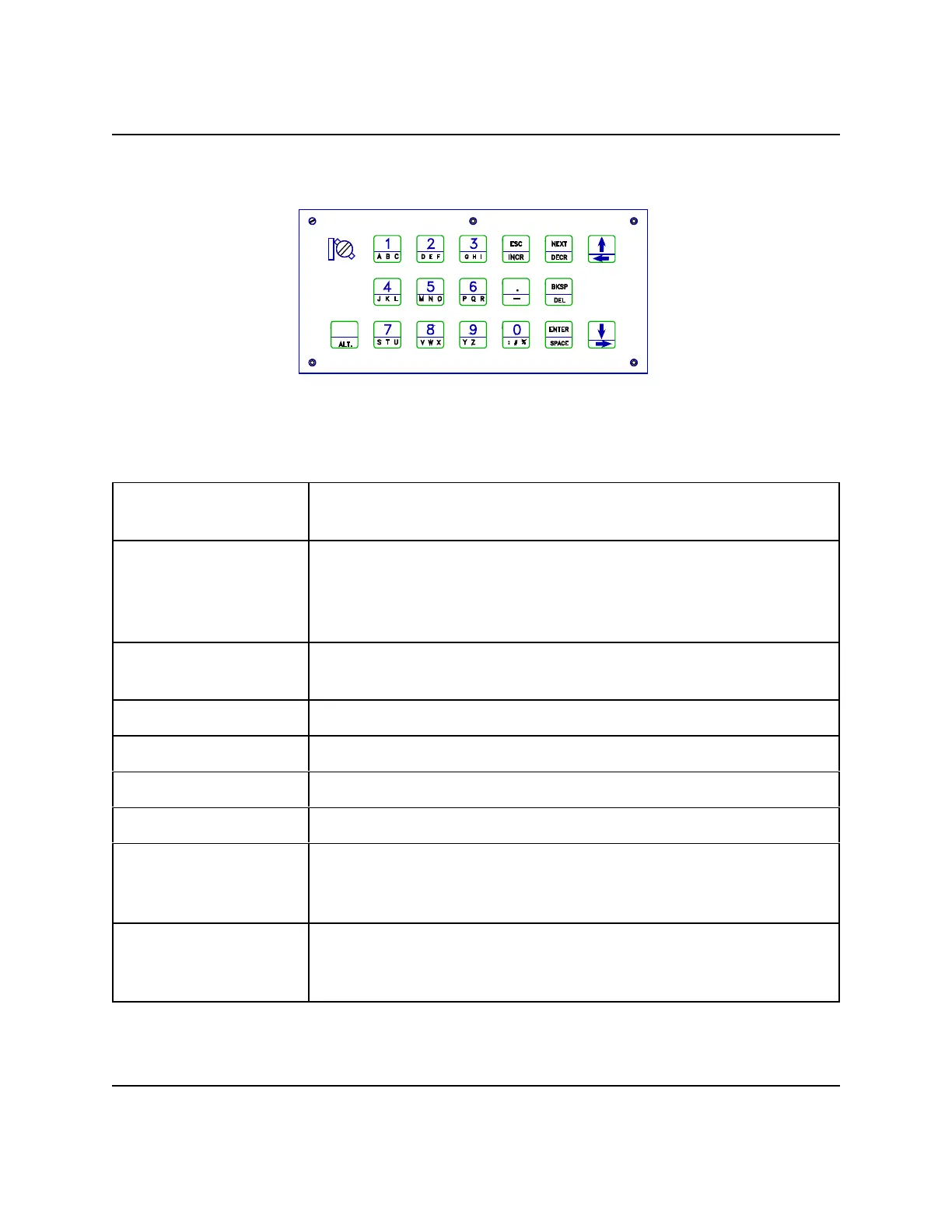

Figure 4-2. Local Site GC Controller Keyboard
Table 4-2. Local Keypad Key Strokes and Their Functions
Numerals, Period (.),
and Minus Sign (-)
For entering numeric data or function codes.
Enter (ENTER) Log on to the menu and/or move to the next field, saving the current
value. Inputs into memory any valid data shown on the
alphanumeric display. If no data has been entered, ENTER causes a
skip to the next field.
Escape (ESC) Exits the current menu and saves the current values. A pop-up
screen will ask if changes should be saved (YES or NO).
Up Arrow (8) Causes a move up one field and saves the current value.
Down Arrow (9) Causes a move down one field and saves the current value.
Left Arrow (ALT 7) Causes a move left one space and saves the current value.
Right Arrow (ALT 6) Causes a move right one space and saves the current value.
Next (NEXT) Goes forward to next set of data; e.g., if stream 1 value set is
displayed, go to data in stream 2. Also exits the current data set and
saves the values.
Increment (INCR) Adds an item to timed event (TEV) or component data (CDT) tables
or used to page up in a list that covers more than one display (ALT
and INCR keys).
To Next Page
