Emerson Process Management GmbH & Co. OHG 4-13
4
Maintenance
X-STREAM XEFD
Instruction Manual
HASXEDE-IM-EX
03/2012

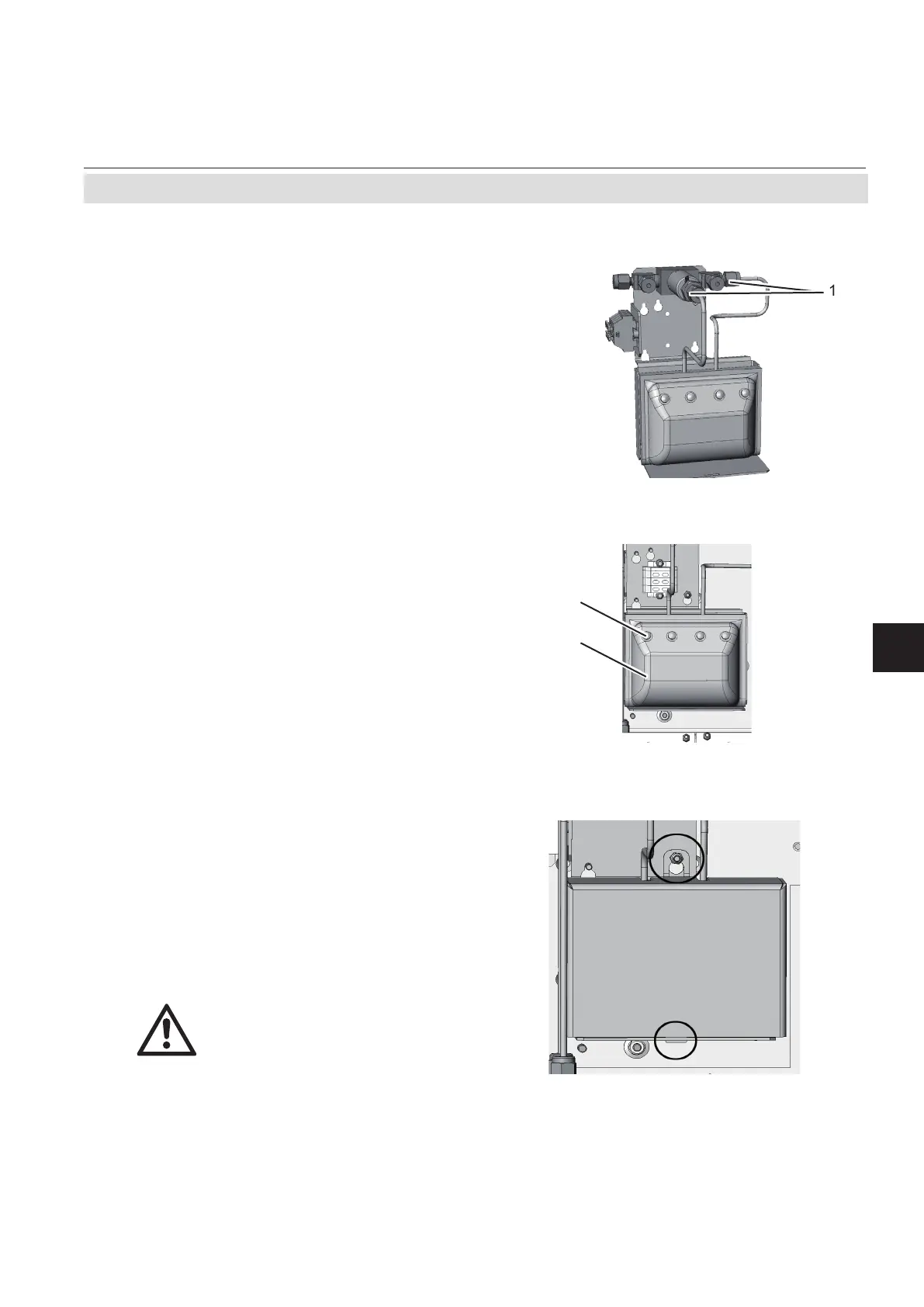

Fig. 4-9: Jacket in converter assembly
1: Jacket
2: Boot hooks
(8 pcs)
1
2
13. Lay the lace cord around the boot hooks
and close the jacket.
Fig. 4-10: Heated jacket
1: Union nuts
4.3 Vapor Recovery Application - Special Information
10. Insert the converter vessel into the jacket
and place it into the assembly.
11. Connect the open gas lines to the ttings
of the solenoid valve (Fig. 4-9). Carefully
x the union nuts.
12. At this point we recommend to perform a
leak test to ensure the gas connections
are tight! If some are not, they are acces-
sible now.
1
Fig. 4-11: Converter metallic cover
14. Install the metallic cover in such a way,
that when it is pushed downwards, the key
ts into the small slot and the screw nut is
on top of the butt strap.
15. Fix the cover with the screw nut.
16. Make sure all installation has been done
properly and close the front door. Fix the
door by means of ALL 20 screws.
Tightening torque:
25 Nm (221 in.lb)
17. You‘re done!
