Emerson Process Management GmbH & Co. OHG1-14
X-STREAM XEFD
Instruction Manual
HASXEDE-IM-EX
03/2012

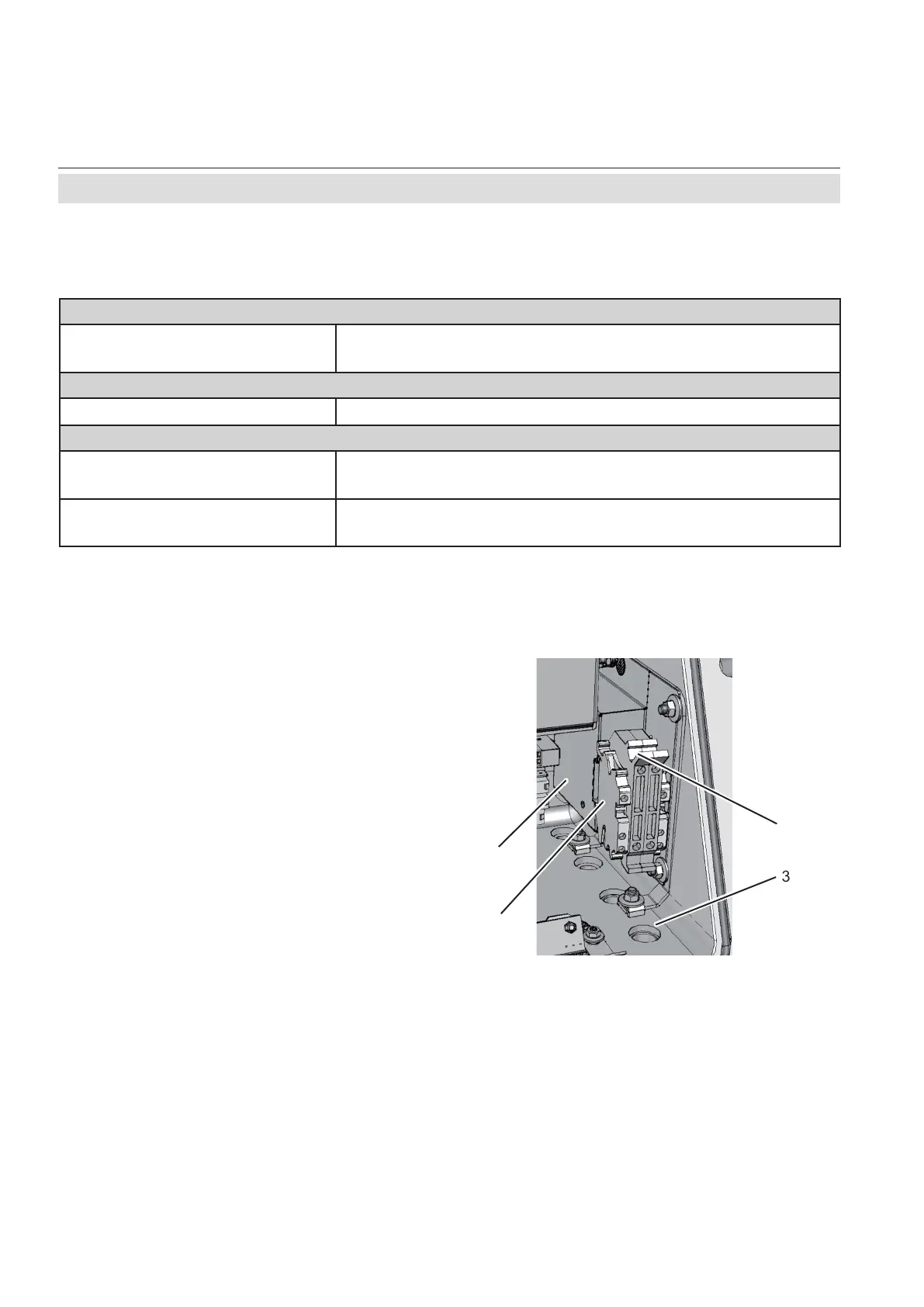

Fig. 1-6: Power Terminals / Fuse Holders
1.7 Technical Data
Power Connection
1 Power terminals with integrated
fuse holders
2 Protective earth terminal (PE)
3 Power cable entry
4 EMI power supply lter
3
2
4
1
Power connections
Power supply
Connection via internal screw terminals near cable entries,
max 4mm² (10 AWG), end sleeves not required.
Power supply fuses
Fuse ratings AC 230 V / T 4 A / 5x20 mm
Cable glands
Types
Cable gland, classied IP 68 or suitable conduit with metric-
to-NPT adaptor
Permissible outer cable dia-
meter
3…13 mm (0.11 to 0.5 inch),
see cable gland / conduit specication
