Emerson Process Management GmbH & Co. OHG2-16
X-STREAM XEFD
Instruction Manual
HASXEDE-IM-EX
03/2012

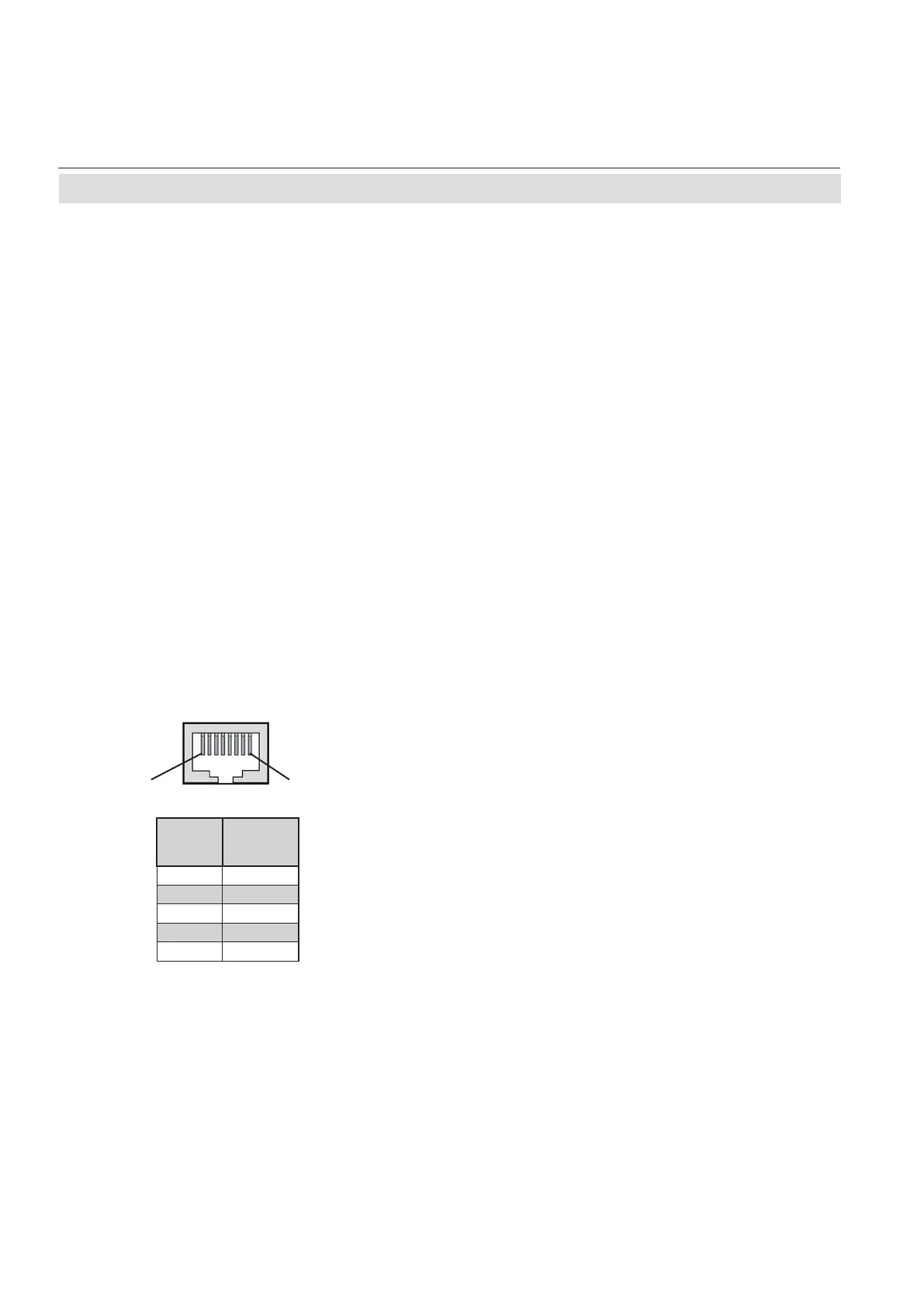

Fig. 2-11: Modbus Interface - Ethernet connector
2.4 Installation - Electrical
To install this connection, a cable must be fed
through the cable entry without a connector.
The connector can be wired on when the free
end has been fed into the instrument:
We recommend the VARIOSUB RJ45 QUICK-
ON connector (PHOENIX CONTACT), which
is supplied with the unit and requires no spe-
cial tools. Wiring instructions can be found
in the separate manual supplied with the
connector.
Modbus RJ45 connection
Pin 1 Pin 8
Pin no.
Signal
1 TX+
2 TX-
3 RX+
6 RX-
other not used
