Emerson Process Management GmbH & Co. OHG2-14
X-STREAM XEFD
Instruction Manual
HASXEDE-IM-EX
03/2012
**)
Conguration of relay output
terminals as per standard factory
setting (NAMUR status signals)

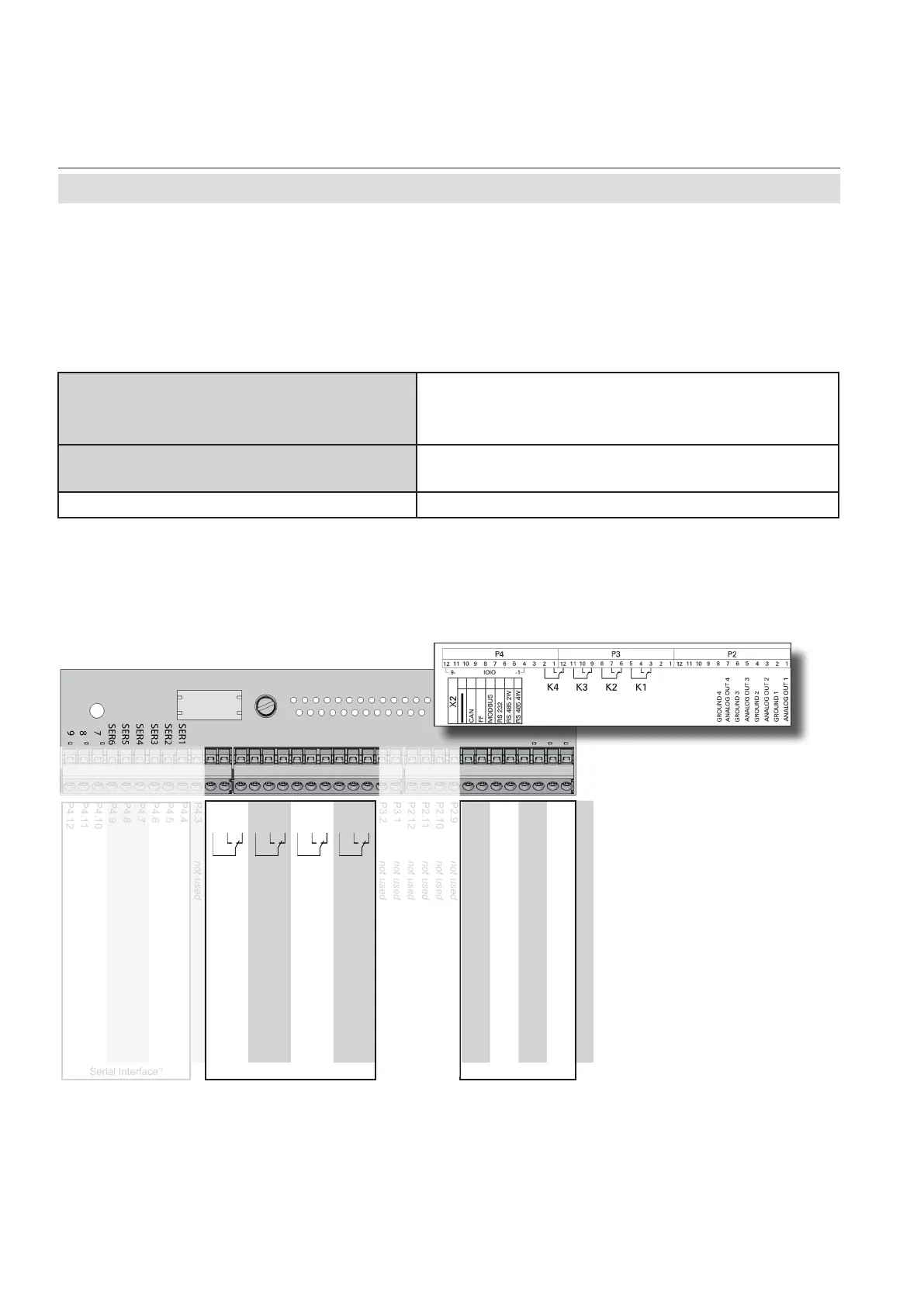

Fig. 2-9: Terminals block X1 - analog signals and relay outputs 1-4
Analog Outputs
Relay Outputs 1 - 4
Terminals for analog signals and relais outputs
1 - 4 are located at the leftmost terminal module
(terminal block X1; g. 2-9).
2.4 Installation - Electrical
Note!
Take care of the special installation instruc-
tions in section 4.5 of the X-STREAM gas
analyzer series manual!
Pin Signal P2.1 Channel 1, (+) 4 (0) - 20 mA P2.2 Channel 1, GND P2.3 Channel 2, (+) 4 (0) - 20 mA P2.4 Channel 2, GND P2.5 Channel 3, (+) 4 (0) - 20 mA P2.6 Channel 3, GND P2.7 Channel 4, (+) 4 (0) - 20 mA P2.8 Channel 4, GND P2.9 not used P2.10 not used P2.11 not used P2.12 not used P3.1 not used P3.2 not used P3.3 Output 1 (Failure), NC P3.4 Output 1 (Failure), NO P3.5 Output 1 (Failure), COM P3.6 Output 2 (Maintenance Request), NC P3.7 Output 2 (Maintenance Request), NO P3.8 Output 2 (Maintenance Request), COM P3.9 Output 3 (Out of Spec), NC P3.10 Output 3 (Out of Spec), NO P3.11 Output 3 (Out of Spec), COM P3.12 Output 4 (Function check), NC P4.1 Output 4 (Function check), NO P4.2 Output 4 (Function check), COM P4.3 not used P4.4 P4.5 P4.6 P4.7 P4.8 P4.9 P4.10 P4.11 P4.12
Relay Outputs
**)
Analog Outputs
Serial Interface
*)
Analog output specication:
4 (0)–20 mA (R
B
≤ 500 Ω)
optically isolated from each other and from analy-
zer electronics
Specication of relay outputs 1-4:
Dry relay change-over contacts, can be used as
NO or NC.
Electrical data: max. 30 VDC, 1 A, 30 W resistive
X
