Emerson Rosemount Xstream Series Instruction Manual Addendum

Emerson Process Management GmbH & Co. OHG 1-7
1
Techn. Description
X-STREAM XEFD
Instruction Manual
HASXEDE-IM-EX
03/2012
1.7 Technical Data
1.7 Technical Data
Cable inlets
(enclosure threads; M20 x 1.5)
Flame arrestors with gas ttings
(enclosure threads: M18 x 1.5)
Eyebolt detail
All dimensions in mm
[inches in brackets]
Transport lugs to be removed after installation

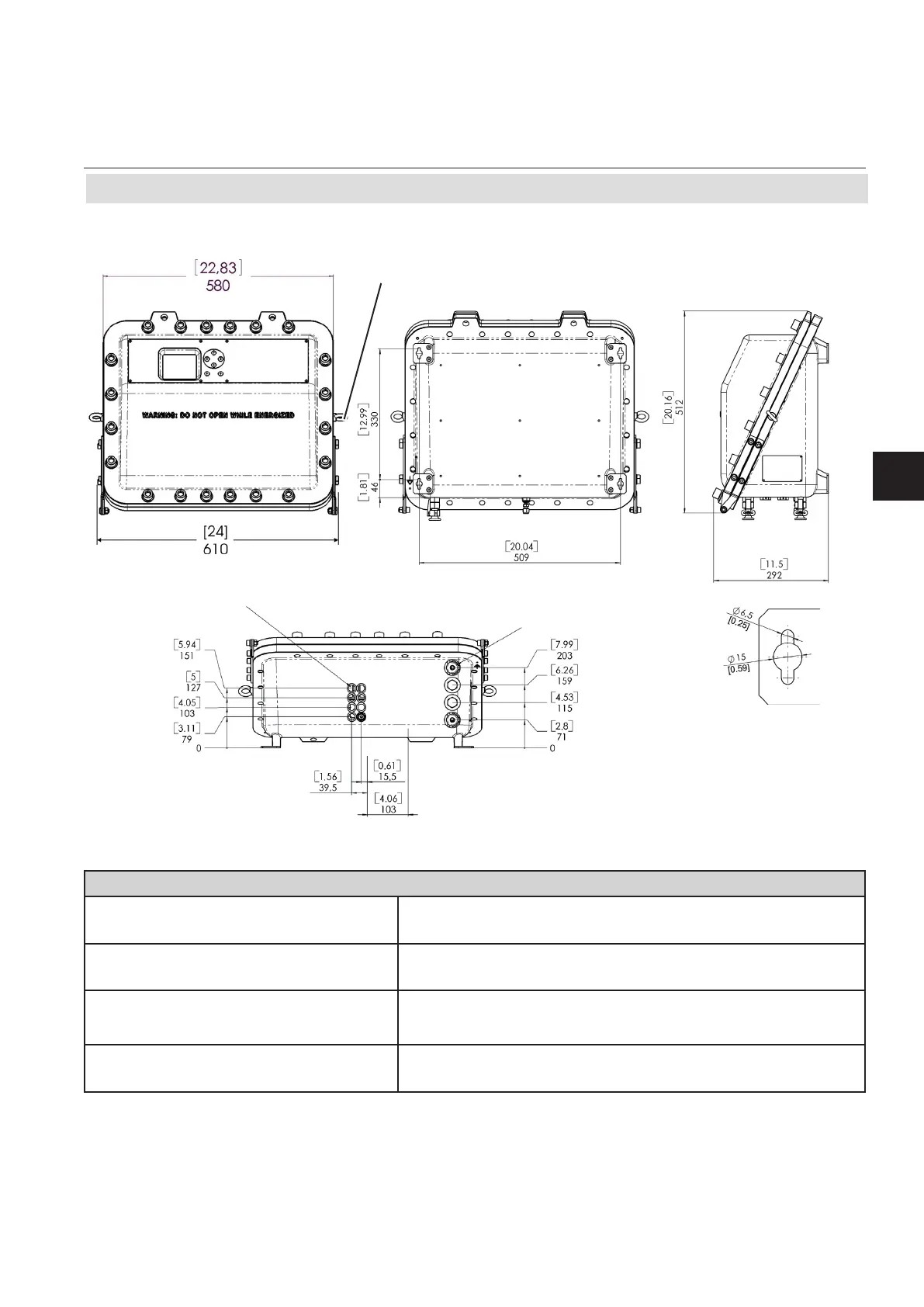

Fig. 1-4: Dimensions
Housing
Permissible operating ambient tem-
perature range
-30 °C to +50 °C (-22 °F to +122 °F)
Permissible storing ambient tempe-
rature range
-30 °C to +70 °C (-22 °F to +158 °F)
Weight
approx. up to 63 kg (139 lbs),
(depending on analyzer conguration)
Protection class
IP 66 (EN 60529) / Type 4X for outdoor installation.
Analyzer must not be exposed to direct sun light
