ENCAD CADJET - Strain Relief Removal;Installation

5-24 Assembly\Disassembly
CadJet 3D Service Manual

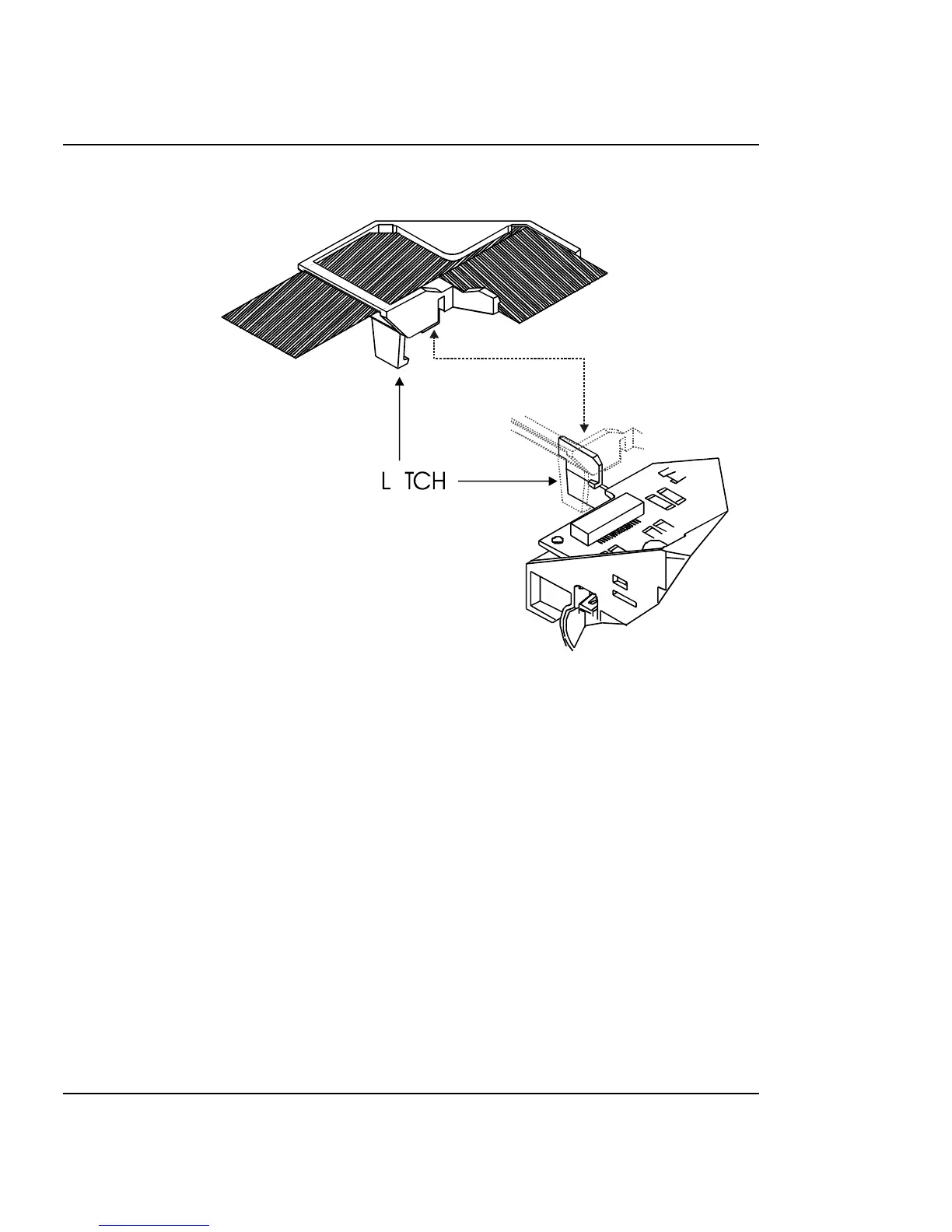

Figure 5-12. Strain Relief Removal/Installation.
5. Remove the Trailing Cable and Strain Relief from the Carriage
Assembly by releasing the latch on the left lower side of the Strain
Relief and lifting it off of the Carriage Assembly. See Figure 5-12.
6. Compress the back of the Frame Tensioner and use the end of a
screwdriver to remove the Carriage Belt from the Servo Motor
pulley. See Figure 5-9.
7. Remove the Compression Spring from the Frame Tensioner and set
it aside.
8. Push the Carriage Belt through the Frame Tensioner enough to
remove the Idler Pulley Assembly from the Frame Tensioner, and
then set aside the Idler Pulley Assembly and the Frame Tensioner.
See Figure 5-13.
