CadJet 3D Service Manual
MAINTENANCE
Maintenance 3-9
J1
STEPPER
MOTOR
J2
SERVO
MOTOR
J3
NOT
USED
J6
NOT
USED
J8
P.S.
COOLING
FAN
J9
PARALLEL
I/O PORT
J5
VACUUM
FAN
J7
TRAILING
CABLE
J4
LOAD
SENSOR
J15
POWER
SUPPLY
J12
DISPLAY
DATA
J14
SERIAL
I/O PORT
J13
KEYPAD
J17
SIMM
EXPANSION
J18
SIMM

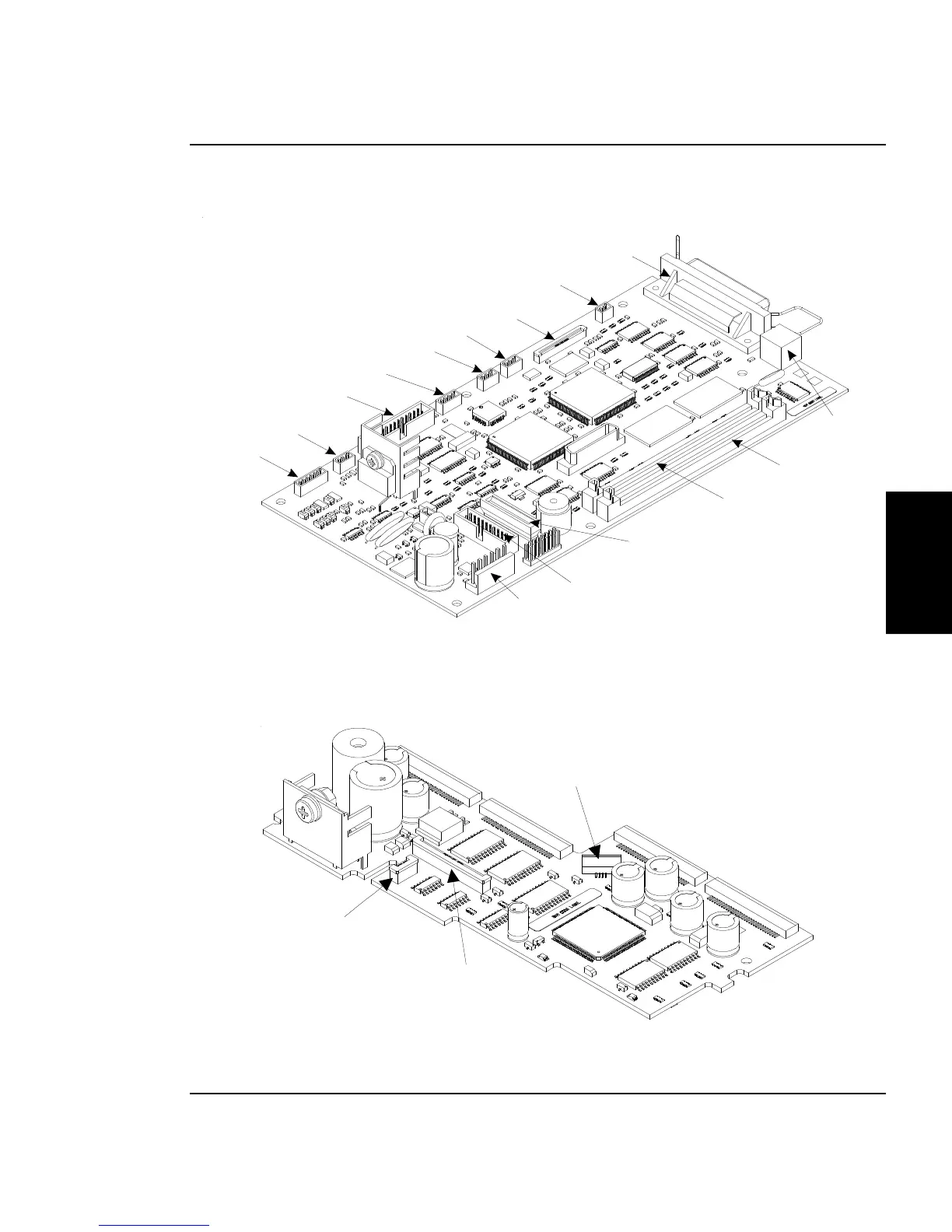

Figure 3-4. Main PCB Connection Locations.
J1 BLACK J2 CYAN
J3 MAGENTA J4 YELLOW
J5
ENCODER
SENSOR
J6
TRAILING CABLE
J7
PAPER SENSOR
Figure 3-5. Carriage PCB Connection Locations.
