Function and design PlasmaQuant 9100 (Elite)
18
1
2
3
4
5
6
7

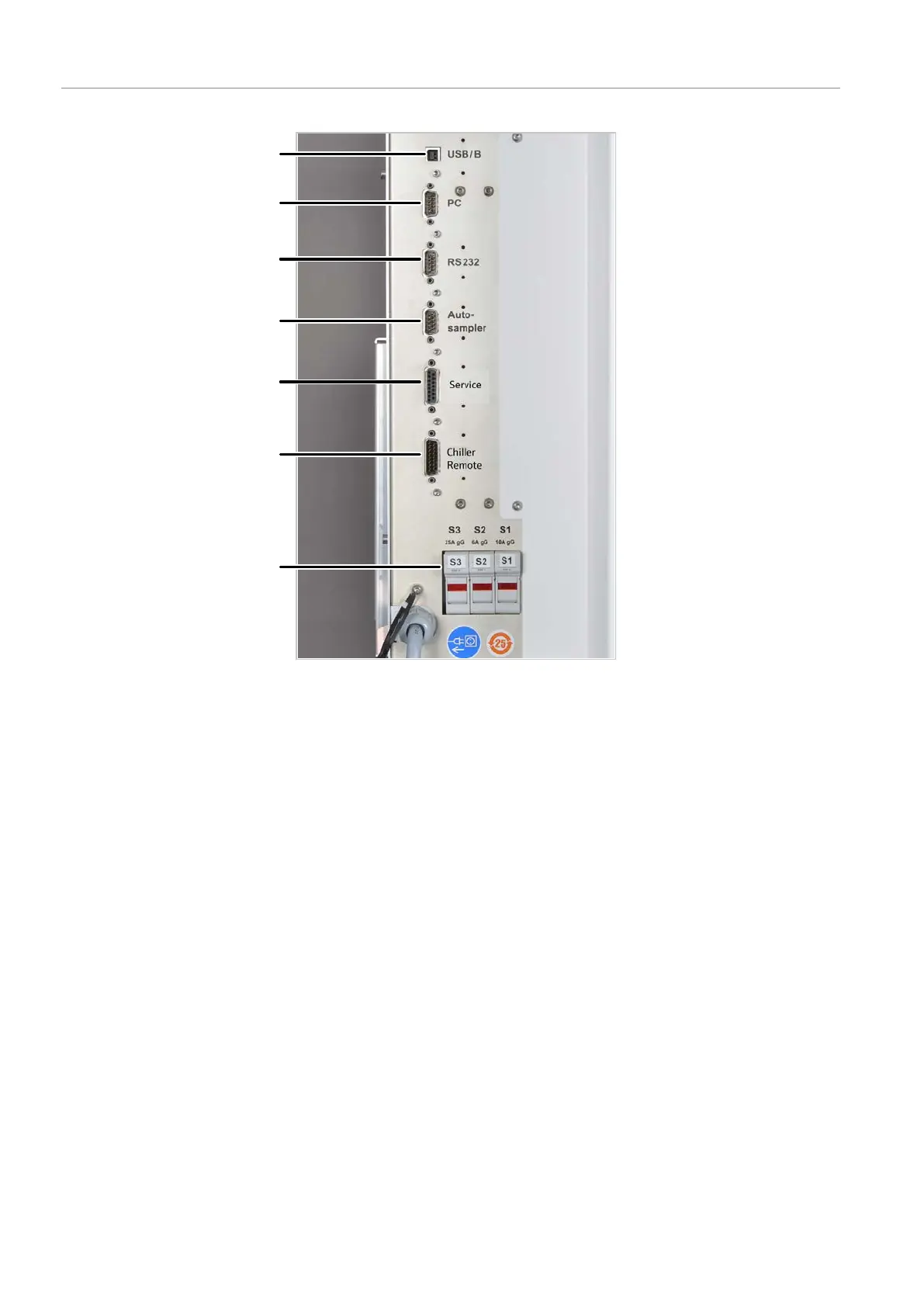

Figure7 Interfaces and fuses
1 "USB/B" for PC connection via USB 2 "PC" for serial PC connection (op-
tional)
3 "RS 232" (service only) 4 "Autosampler" for serial autosampler
connection (12V)
5 "Service" 6 "Chiller remote"
7 Device fuses S1, S2, S3
The "Chiller remote" connection also optionally provides control of the recirculating
chiller via the emission spectrometer.
