Installation and commissioning PlasmaQuant 9100 (Elite)
44
4.4.4 Installing the inline filter
1
2
3

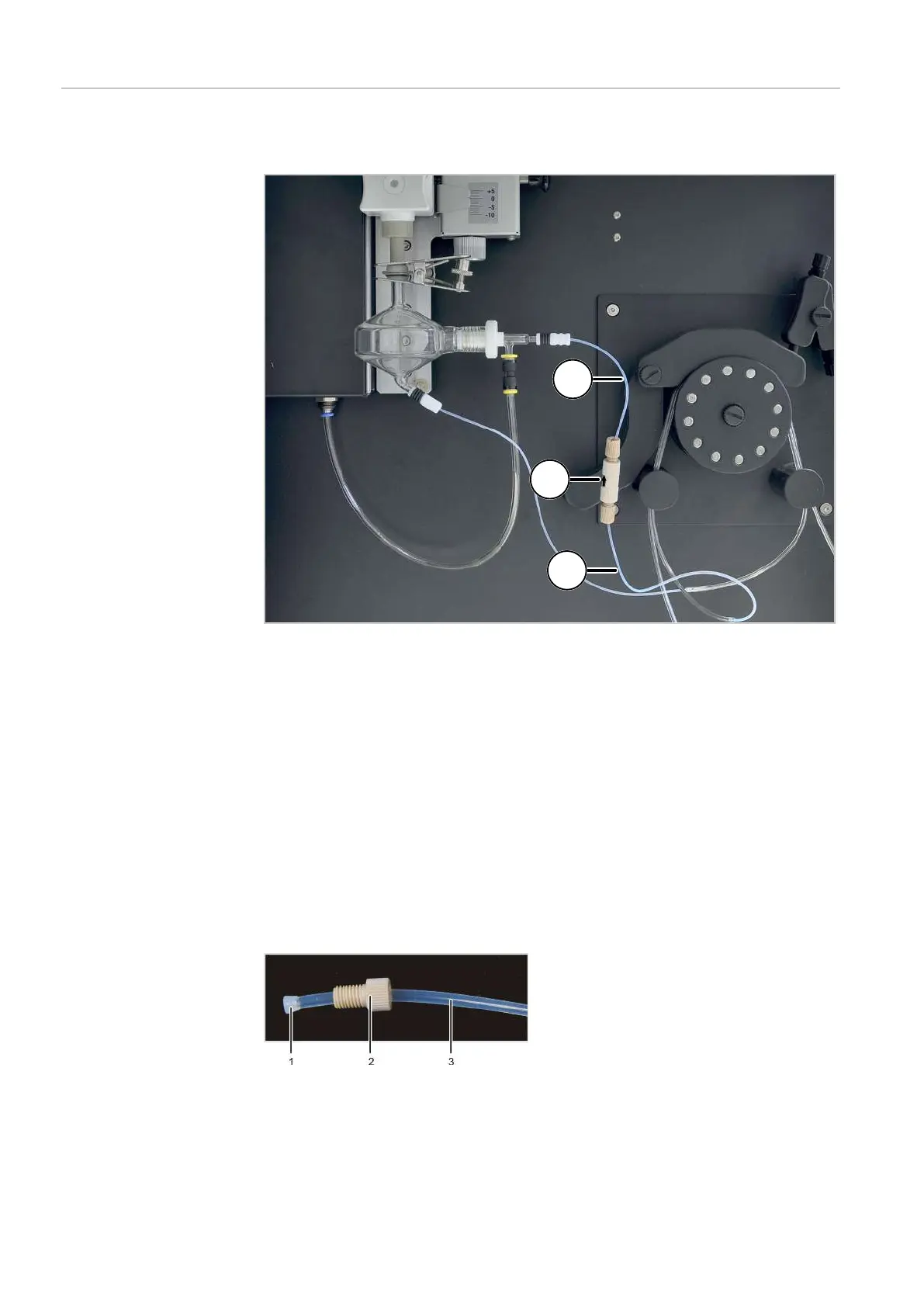

Figure28Installing the inline filter
1 Sample hose to the nebulizer 2 Filter block with hose connectors
3 Sample pump hose
} Insert the inline filter in the hoses so that the arrow on the filter block point in the
flow direction (i.e. in the direction of the nebulizer).
} Assemble the inline filter as described in the accompanying datasheet.
} To do so, insert the nebulizer hose in the banjo bolt via a ferrule. The conical side of
the ferrule must point toward the banjo bolt.
} Screw the hose connector into the outlet of the filter block.
} Screw a short capillary hose into the inlet of filter block via hose connector.
} Connect the capillary hose with the sample pump hose. To do this, push the capillary
hose into the pump hose.
} Connect the nebulizer hose with the nebulizer.
Figure29Fit of the ferrule in the banjo bolt
1 Ferrule 2 Banjo bolt
3 Hose
