4.3 Putting the ASPQ 3300 into operation
Connections

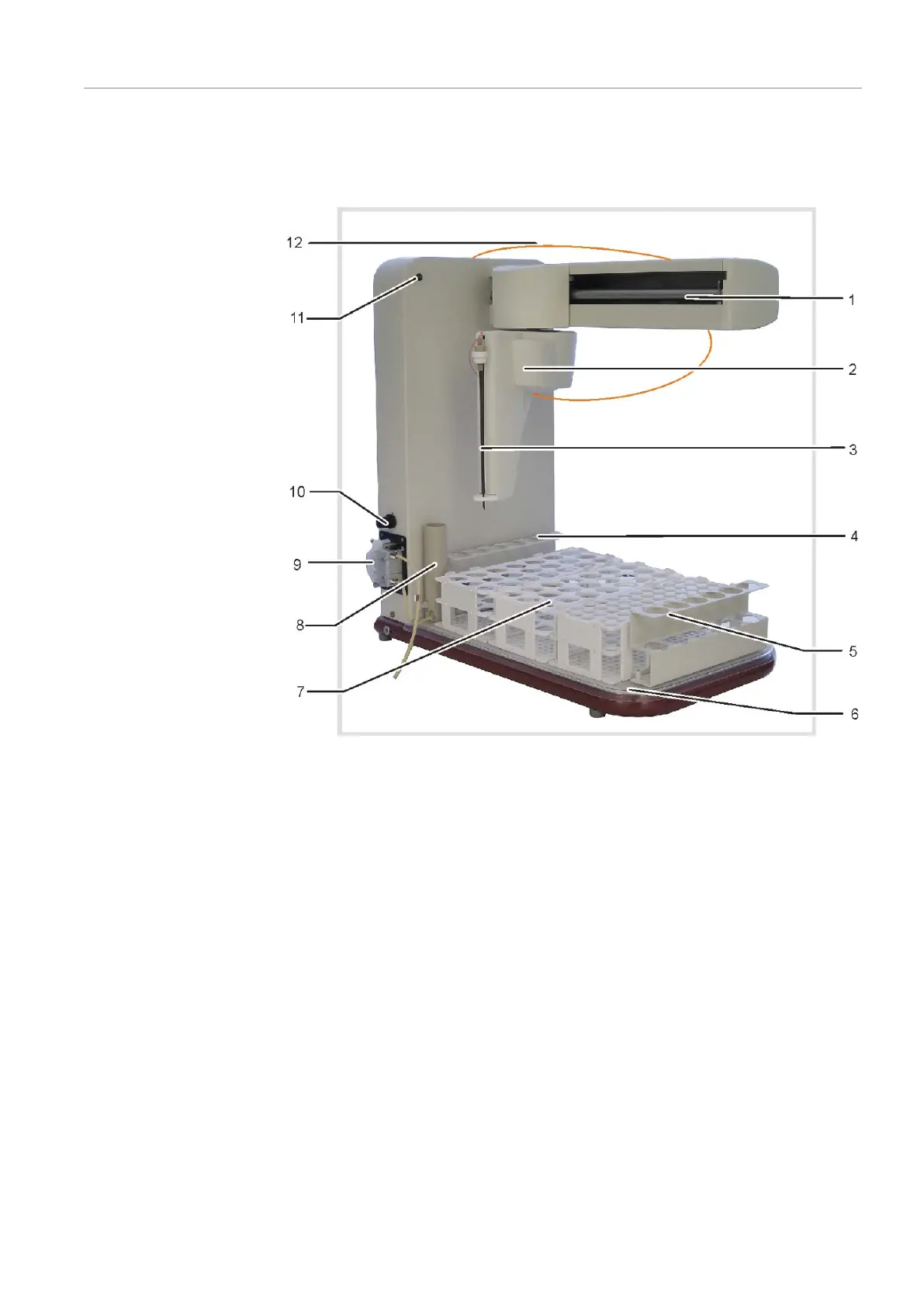

Figure17ASPQ 3300 sampler
1 Sampler arm 2 Sampler head with cannula holder
3 Cannula 4 Rack for special samples
5 Rack for special samples 6 Base plate for racks
7 Sample racks 8 Purging vessel
9 Purging vessel pump 10 Controller for purging vessel pump
11 Power LED 12 Sample intake hose
