4.4.3 Installing the argon humidifier
1
2
3
4
ONOFF

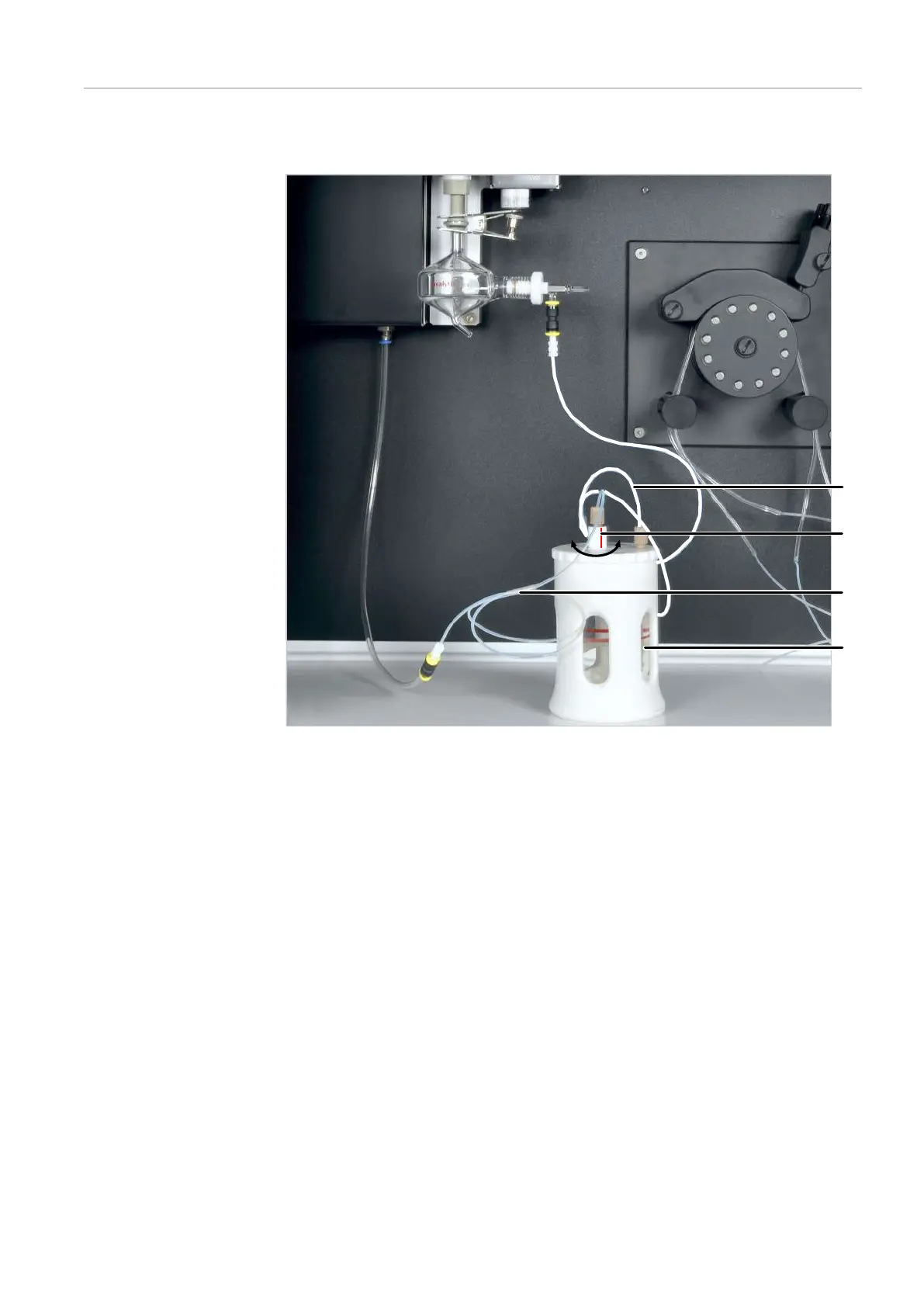

Figure27Installing the argon humidifier
1 Gas outlet: Argon hose to the
nebulizer
2 Bypass valve
3 Gas inlet: Argon hose from the
ICP-OES
4 Glass vessel with membrane coil
} Assemble the argon humidifier as described in the accompanying datasheet. Ensure
that the membrane coil is not damaged.
} Fill the glass vessel with the membrane coil (4) with deionized water up to the mark-
ing.
} Connect the hose on the gas outlet of the argon humidifier (1) with the nebulizer via
a plug-in connector.
} Connect the hose on the gas outlet (3) with the argon hose of the emission spec-
trometer via a plug-in connector.
} Turn the bypass valve (2) until the colored marking is at "ON".
Argon humidification can be switched on and off via the bypass valve without discon-
necting hose lines.
