Commissioning with the FF configuration program Cerabar M, Deltabar M, Deltapilot M
148 Endress+Hauser
3 Select the measuring mode if necessary:
• Select the "Level" option by means of the Primary
Value Type/PRIMARY_VALUE_TYPE parameter.
Or:
A0017658

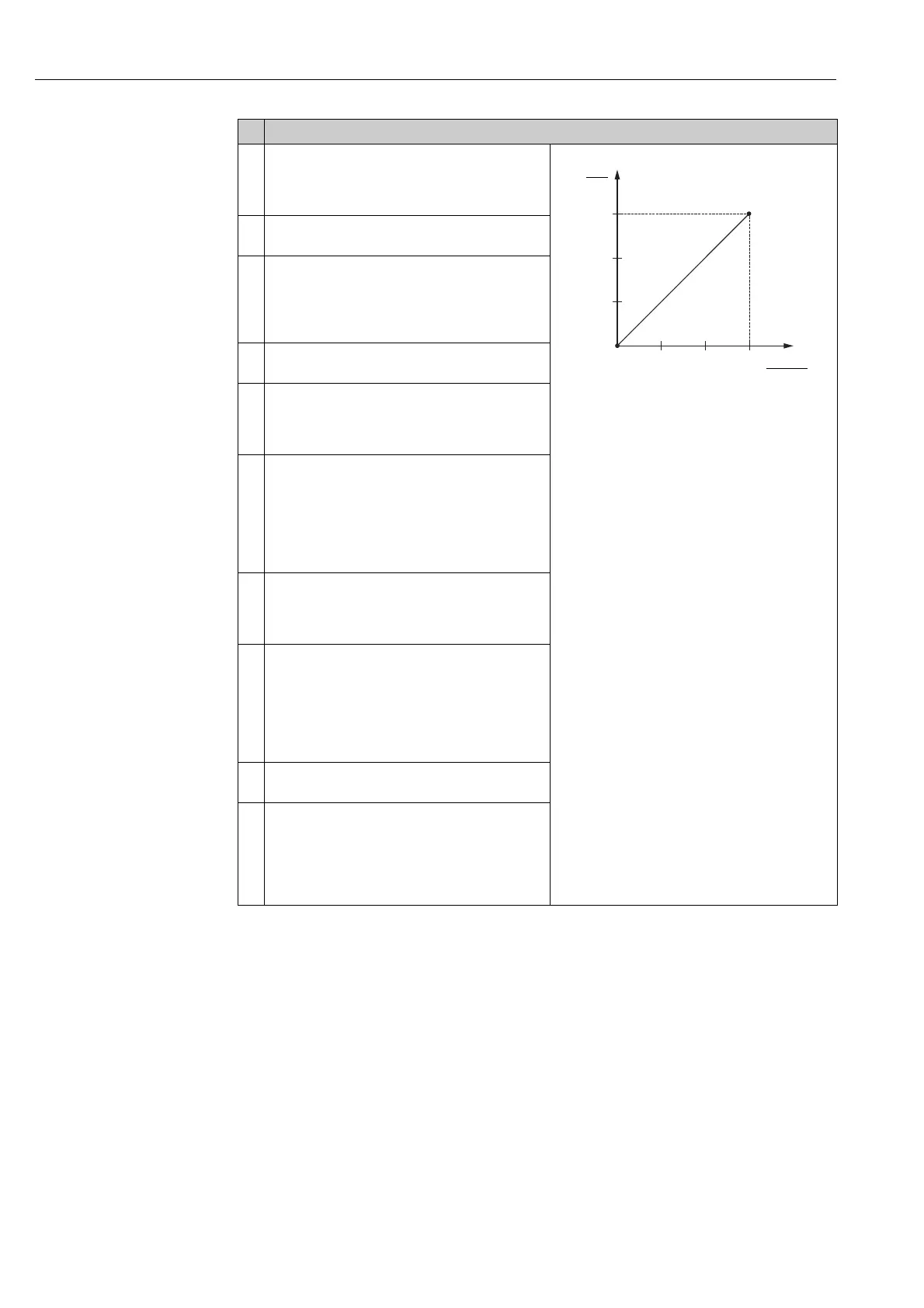

Fig. 41: Calibration with reference pressure –
wet calibration
C See Table, Step 8.
D See Table, Step 9.
4 Select the "In pressure" option via the Level selection/
LEVEL_ADJUSTMENT parameter.
5 By means of the "Units index" Scale Out/SCALE_OUT
parameter, select the "m" option.
Or select a level unit by means of the Unit before
Lin./OUT_UNIT_EASY parameter, here "m" for
example.
6 Select the "Wet" option by means of the Calibration
mode/LEVEL_ADJUST_MODE_EASY parameter.
7 Fill the container up to the lower level point.
The associated pressure value can be viewed by
means of the Meas. pressure/
PRESSURE_1_FINAL_VALUE parameter.
8 By means of the Scale Out/SCALE_OUT
1)
record
parameter, "EU at 0%/
E_ENGINERING_UNIT_0_PERCENT" elements,
enter a level value, here 0 m for example.
Or enter a level value via the Empty calibration/
LOW_LEVEL_EASY parameter, here 0 m for
example.
9 Fill the container up to the upper level point.
The associated pressure value can be viewed by
means of the Meas. pressure/
PRESSURE_1_FINAL_VALUE parameter.
10 By means of the Scale Out/SCALE_OUT
)
record
parameter, "EU at 100%/
E_ENGINERING_UNIT_100_PERCENT" elements,
enter a level value, here 3 m for example.
Or enter a level value via the Full calib./
HIGH_LEVEL_EASY parameter, here 3 m for
example.
11 Set the Pressure Transducer Block to the "Auto" block
mode.
12 If necessary, configure the
Channel/CHANNEL ( ä 211),
Linearization Type/L_TYPE ( ä 212),
Transducer Scale/XD_SCALE ( ä 210) and
Output Scale/OUT_SCALE ( ä 211) parameters
by means of the Analog Input Block.
1) Is only supported by host systems that permit write access to individual elements of the record.
