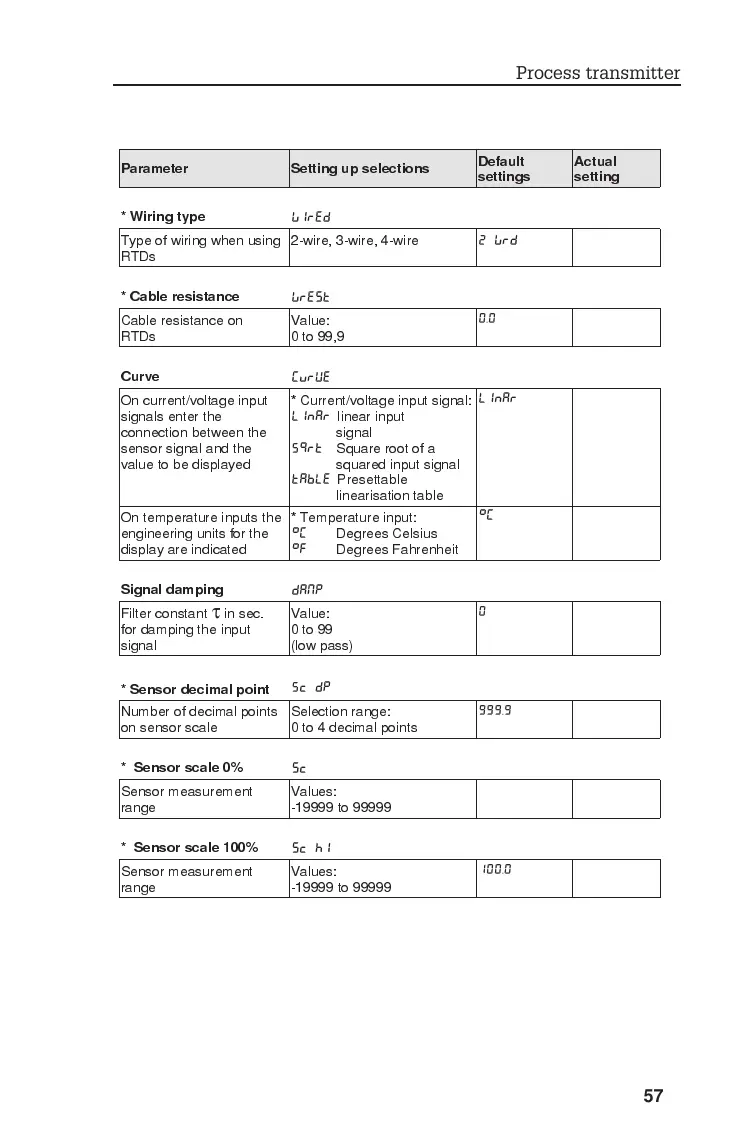

Endress+Hauser RMA 421 - Page 59

Parameter Setting up selections
Default
settings
Actual
setting
* Wiring type
WIRED
Type of wiring when using
RTDs
2-wire, 3-wire, 4-wire 2 WRD
* Cable resistance
WREST
Cable resistance on
RTDs
Value:
0to99,9
0,0
Curve
CURVE
On current/voltage input
signals enter the
connection between the
sensor signal and the
value to be displayed
* Current/voltage input signal:
LINAR linear input
signal
5QRT Square root of a
squared input signal
TABLE Presettable
linearisation table
LINAR
On temperature inputs the
engineering units for the
display are indicated
* Temperature input:
°C Degrees Celsius
°F Degrees Fahrenheit
°C
Signal damping
DAMP
Filter constant τ in sec.
for damping the input
signal
Value:
0to99
(low pass)
0
* Sensor decimal point
5c DP
Number of decimal points
on sensor scale
Selection range:
0 to 4 decimal points
999,9
* Sensor scale 0%
Sc LO
Sensor measurement
range
Values:
-19999 to 99999
0,0
* Sensor scale 100%
Sc HI
Sensor measurement
range
Values:
-19999 to 99999
100,0
Process transmitter
57
