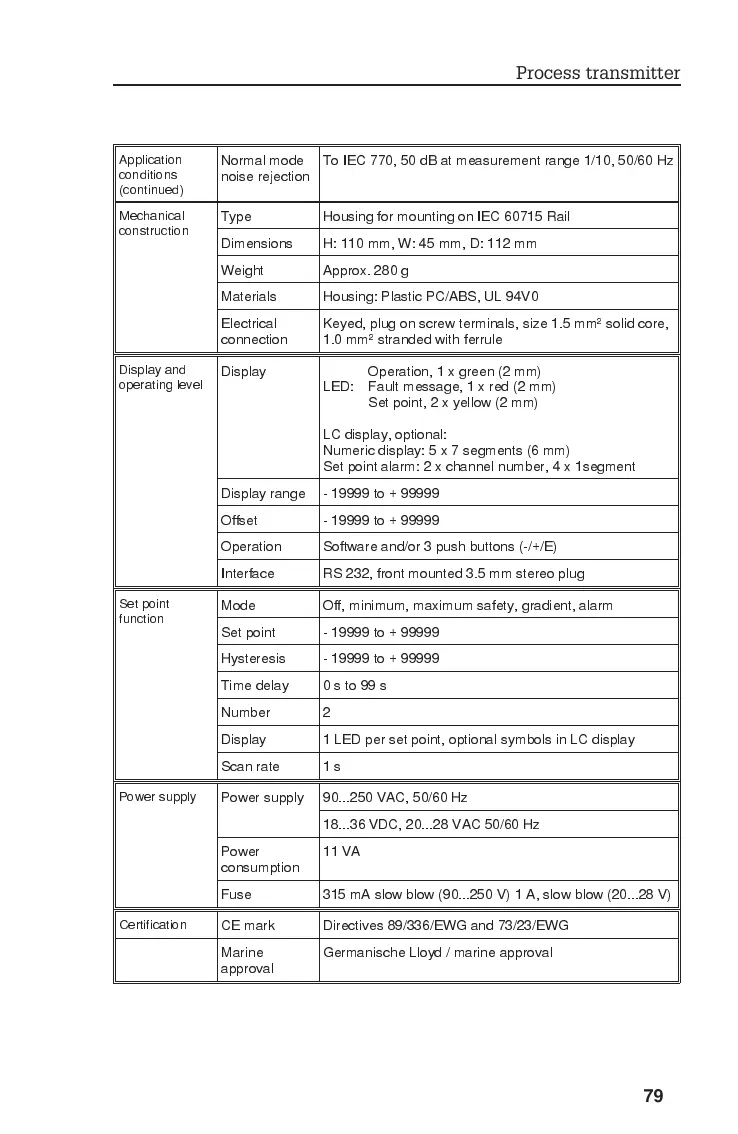

Application
conditions
(continued)
Normal mode
noise rejection
To IEC 770, 50 dB at measurement range 1/10, 50/60 Hz
Mechanical
construction
Type Housing for mounting on IEC 60715 Rail
Dimensions H: 110 mm, W: 45 mm, D: 112 mm
Weight Approx. 280 g
Materials Housing: Plastic PC/ABS, UL 94V0
Electrical
connection
Keyed, plug on screw terminals, size 1.5 mm² solid core,
1.0 mm² stranded with ferrule
Display and
operating level
Display Operation, 1 x green (2 mm)
LED: Fault message, 1 x red (2 mm)
Set point, 2 x yellow (2 mm)
LC display, optional:
Numeric display: 5 x 7 segments (6 mm)
Set point alarm: 2 x channel number, 4 x 1segment
Display range - 19999 to + 99999
Offset - 19999 to + 99999
Operation Software and/or 3 push buttons (-/+/E)
Interface RS 232, front mounted 3.5 mm stereo plug
Set point
function
Mode Off, minimum, maximum safety, gradient, alarm
Set point - 19999 to + 99999
Hysteresis - 19999 to + 99999
Time delay 0 s to 99 s
Number 2
Display 1 LED per set point, optional symbols in LC display
Scan rate 1 s
Power supply
Power supply 90...250 VAC, 50/60 Hz
18...36 VDC, 20...28 VAC 50/60 Hz
Power
consumption
11 VA
Fuse 315 mA slow blow (90...250 V) 1 A, slow blow (20...28 V)
Certification
CE mark Directives 89/336/EWG and 73/23/EWG
Marine
approval
Germanische Lloyd / marine approval
Process transmitter
79
