SS2100 TDLAS H
2
S Gas Analyzer BA02191C
3-4 Endress+Hauser
2. Locate the mounting holes on your unit. Refer to drawings in
Appendix A.
3. Mark the centers of the top mounting holes.
4. Drill the appropriate size holes for the screws or concrete studs you
are using.
5. Hold the analyzer in place and fasten with the top screws.
6. Repeat for the bottom mounting holes.
Once all screws are tightened, the analyzer should be very secure and ready
for the electrical connections.
Connecting Electrical Power to the Analyzer
Depending on your configuration, your SS2100 H
2
S analyzer system will be set
up for either 120 VAC or 240 VAC at 50/60 Hz single-phase input, or optionally
24 VDC input. Check the rating label to determine the power input
requirements. All work must be performed by qualified personnel. Conduit
seals should be used where appropriate in compliance with local regulations.

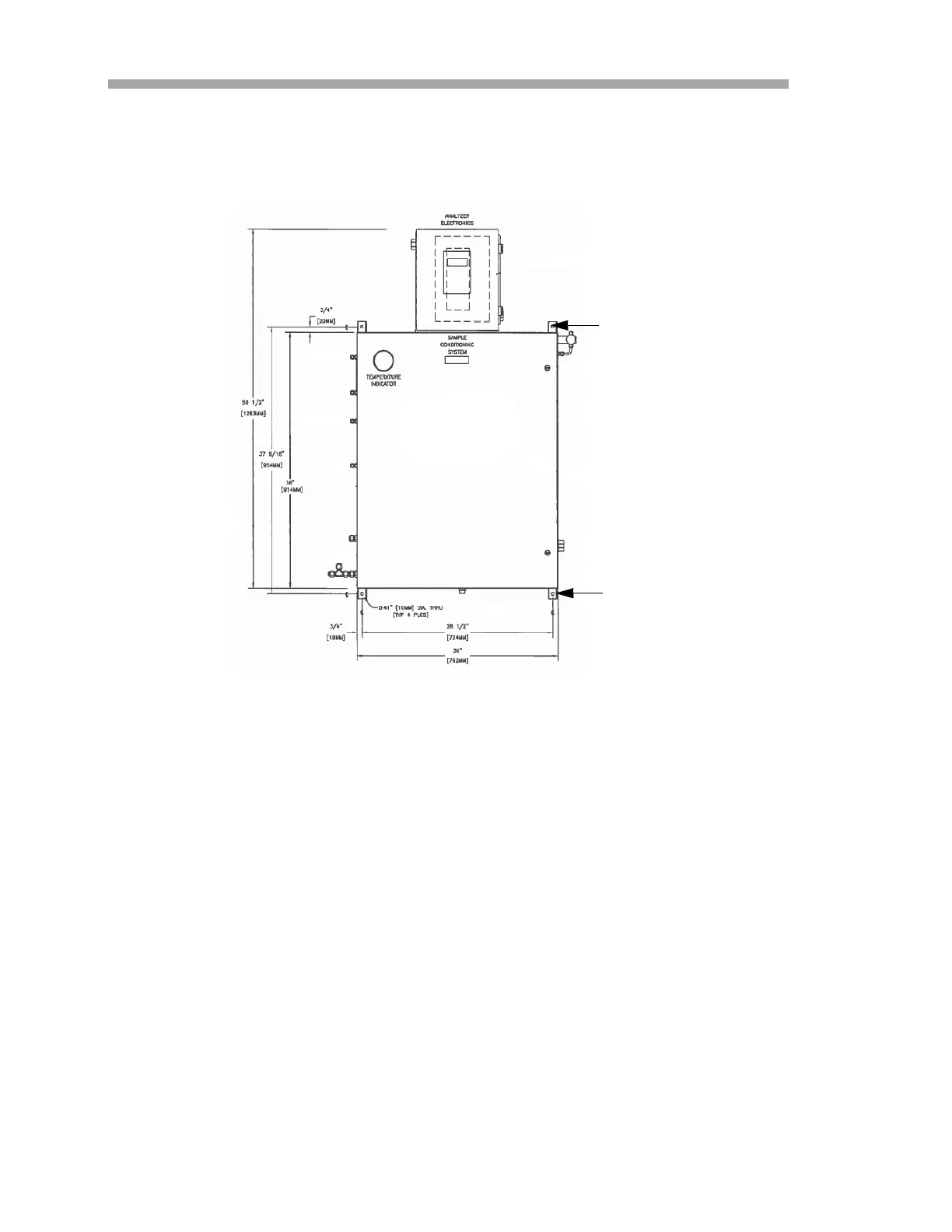

Figure 3–1 Lifting points for the
SS2100 H
2
S analyzer
MOUNTING POINTS
(BOTH SIDES)
MOUNTING POINTS
(BOTH SIDES)
