SS500/SS2000 Analyzer
B–10 4900002285 rev. B 3-25-20
9. Remove the pressure sensor cable from the circular connector.
For new model pressure sensors with quick-disconnects, detach the
pressure sensor cable from the pressure sensor at the connector
using a Phillips-head screwdriver. Do not remove the black connector
from the cable.
10. Remove the foam insulation from around the measurement cell.
11. Dismount the cell from the bracket by removing the four securing
screws (four on top and four on the bottom) using a 9-64” Allen
wrench. Place the measurement cell on a clean, flat surface with the
pressure sensor facing up. Refer to Figure B–5.
12. Using a 9/16” wrench, secure the flange while using a 7/8” wrench
to remove the old pressure sensor. Refer to Figure B–6.
Orient the measurement cell to avoid any debris from entering the
cell.

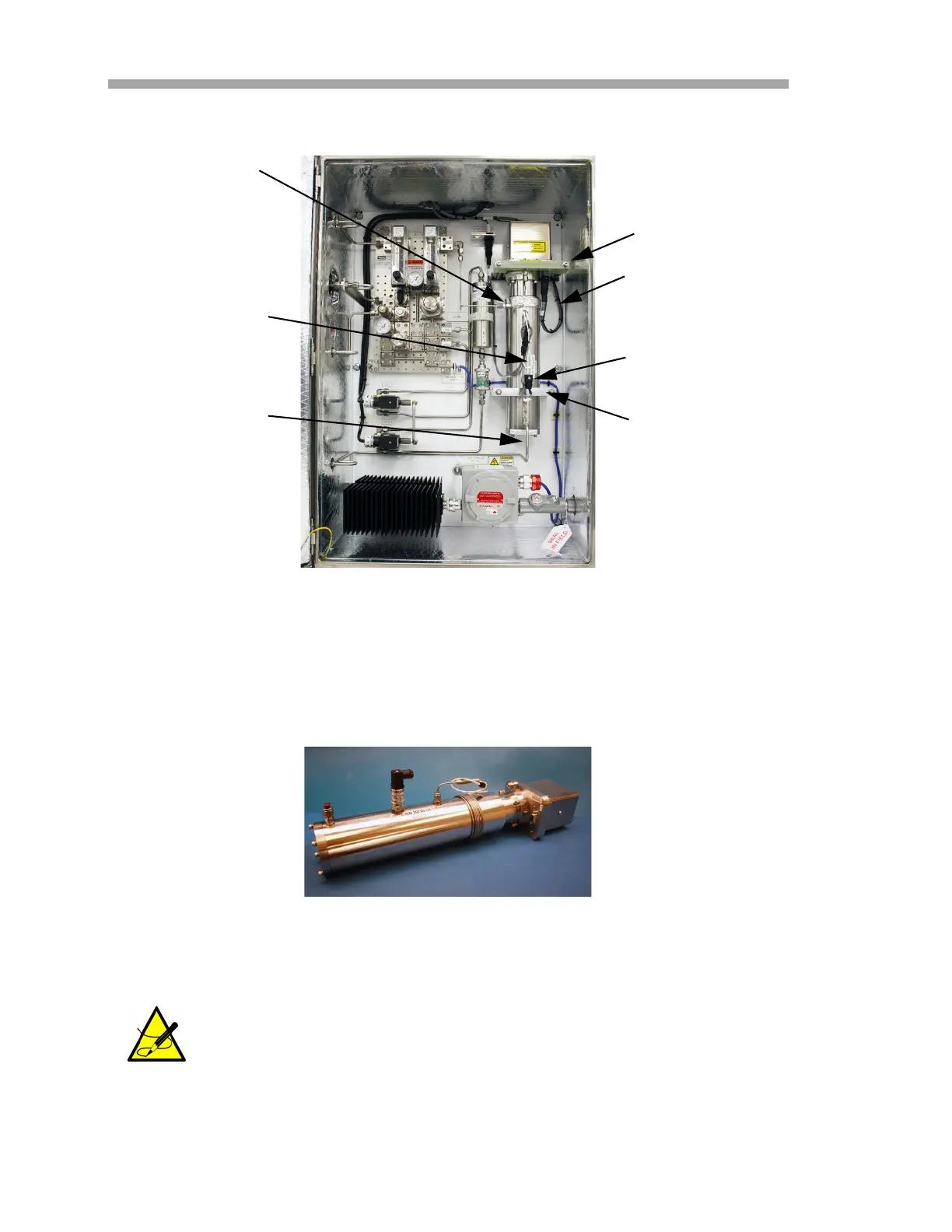

Figure B–5 Removed measurement cell with
pressure sensor face up
Figure B–6 Removing the old pressure
sensor
