Endress+Hauser SpectraSensors SS500 - Figure A-7. Drawing of Analyzer with Full-Featured Sample System in 30 X 30 Enclosure with Heat Trace Power (SS500;SS2000

Specifications
Hardware Installation and Maintenance Manual A
–9

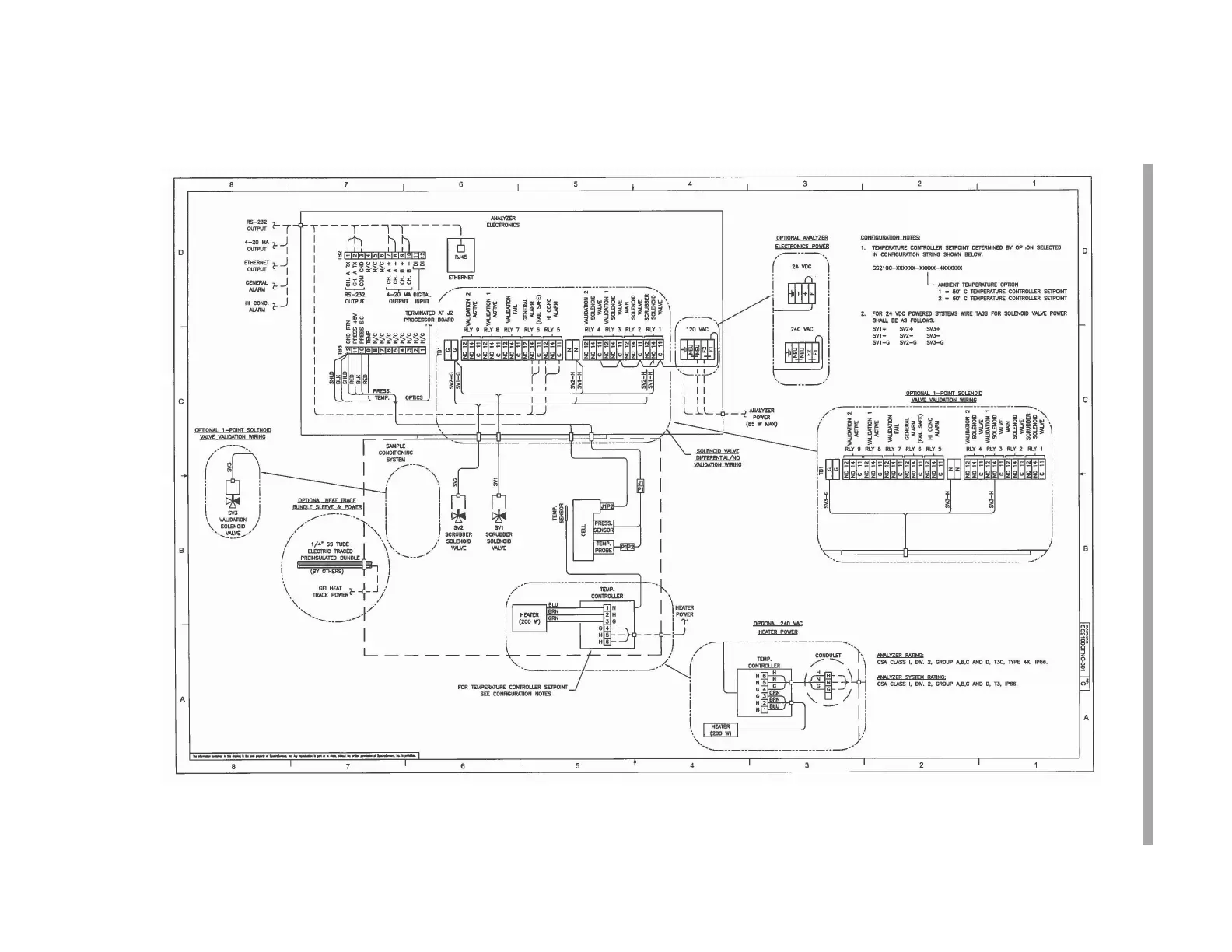

Figure A–7 Drawing of analyzer with full-featured sample system in
30” x 30” enclosure with heat trace power (SS500/SS2000)
120 VAC
HEATER POWER
SAMPLE PORT
THERMOSTAT
SAMPLE INLET
HEATER
LIQUID TRAP
SAMPLE PORT SHUT
OFF
MEMBRANE SEPARATOR
BYPASS FLOW
(.25 SLPM TYPICAL)
INLET SHUT OFF
INLET PRESSURE
REGULATOR
ANALYZER FLOW
1 SLPM TYPICAL)
THERMOMETER
SIGNAL WIRING
HEAT TRACE SAMPLE
INLET
ANALYZER POWER
VENT
GFI HEAT
TRACE POWER
31.56
30.00
4 X 0.406
30.00
28.50
8.80
11.16
