SS2100 TDLAS H
2
S Gas Analyzer BA02191C
3-12 Endress+Hauser
3. Pull the customer-supplied cables for the current loop, alarms,
digital input, Ethernet and the serial cable through the conduit into
the H
2
S analyzer electronics enclosure. (No connections are required
for the analyzer to run and function properly. Only make connections
for signals that will be used for communication with the analyzer).
4. Strip back the jacket and insulation of the current loop and serial
cable just enough to connect to the mating terminal block, shown in
Figure 3–6. The mating terminal block can be pulled up and removed
from its base to make the cable connection process easier.
5. Connect the 4-20 mA current loop signal wires to the appropriate
terminals, as indicated in Table 3–1 on page 3–13.
6. Connect the serial cable wires to the appropriate terminals according
to Table 3–1 on page 3–13. For reference, Table 3–1 on page 3–13
also shows the corresponding pin numbers for configuring a nine-pin
Sub-D connector for connection to a computer serial port.
7. Re-insert the mating terminal block into its base and verify that each
connection is secure.
8. Strip back the jacket and insulation of the alarm cables just enough
to connect to the alarm relays.
9. Connect the cable for the General Fault Alarm to the common and
NO terminals on the corresponding relays shown in Figure 1–6 on
page 1–11 or Figure 1–7 on page 1–12.
10. Connect the cable for the Assignable Alarm to the common and NO
or NC terminals (for OPEN or CLOSED, respectively, when activated)
on the corresponding relay shown in Figure 1–6 on page 1–11 or
Figure 1–7 on page 1–12.
The external serial cable included in the shipping container is
provided for service and troubleshooting purposes and is not
intended for permanent installation.

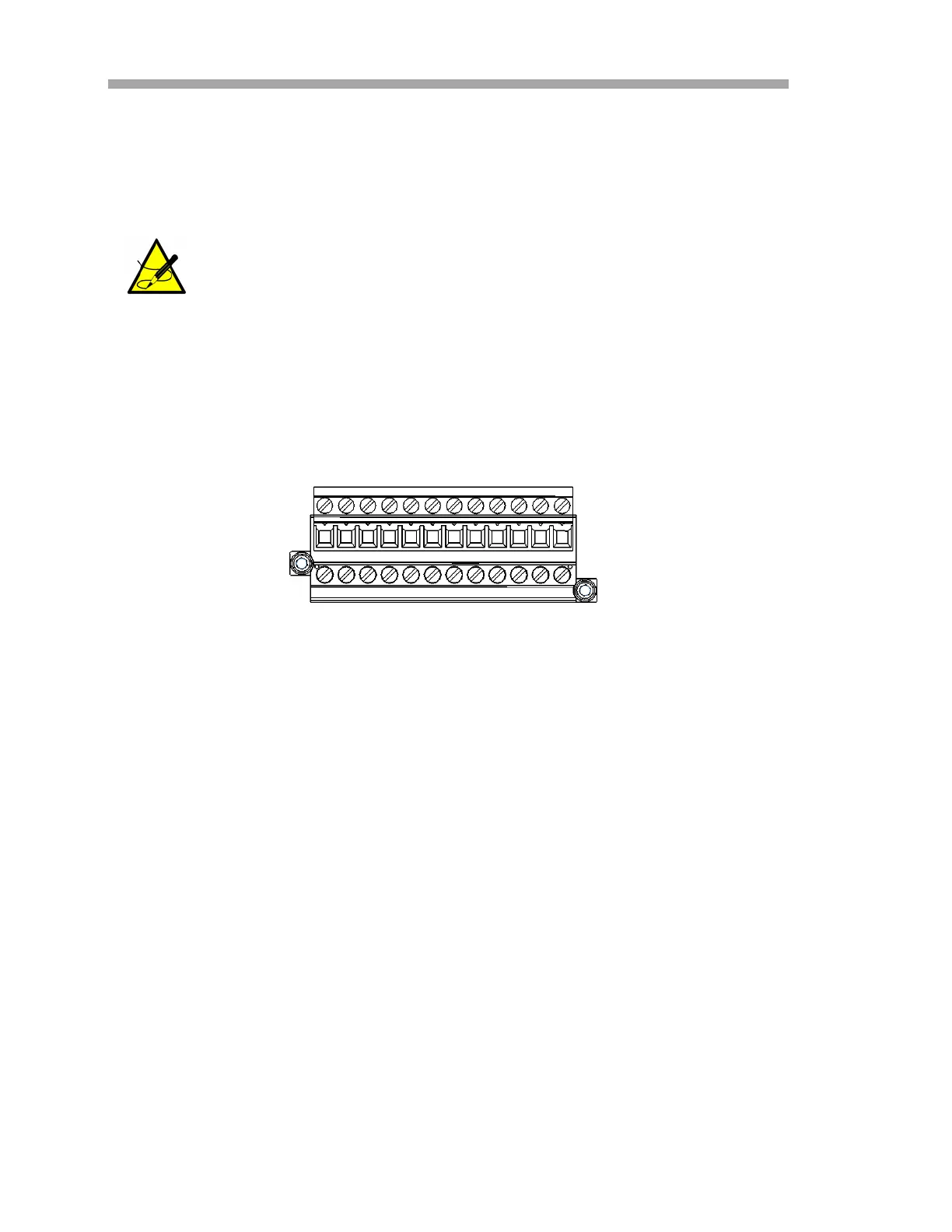

Figure 3–6 H
2
S analyzer mating terminal block (TB2)
for connecting signal cables
TB2
121110987654321
