Hardware Installation and Maintenance Manual 3–1
3 - INSTALLATION
This section describes the processes used to initially install and configure your
SS500 or SS2000 and optional sample conditioning system (SCS). Once the
analyzer arrives, you should take a few minutes to examine the contents before
installing the unit.
What Should be Included in the Shipping Box
The contents of the crate should include:
• The SpectraSensors SS500 or SS2000
• Documentation media, which includes this manual and other system
manuals
• One external RS-232 serial cable(s) to connect the analyzer to a
computer
• Additional accessories or options as ordered
If any of these contents are missing, please refer to “Service Contact” on
page B-22.
Inspecting the Analyzer
Unpack and place the unit on a flat surface. Carefully inspect all enclosures for
dents, dings, or general damage. Inspect the inlet and outlet connections for
damage, such as bent tubing. Report any damage to the carrier.
Each analyzer is configured with various accessories and options. If there is any
discrepancy in your order, please refer to “Service Contact” on page B-22.
The safety of the analyzer is the responsibility of the installer and
the organization he/she represents.

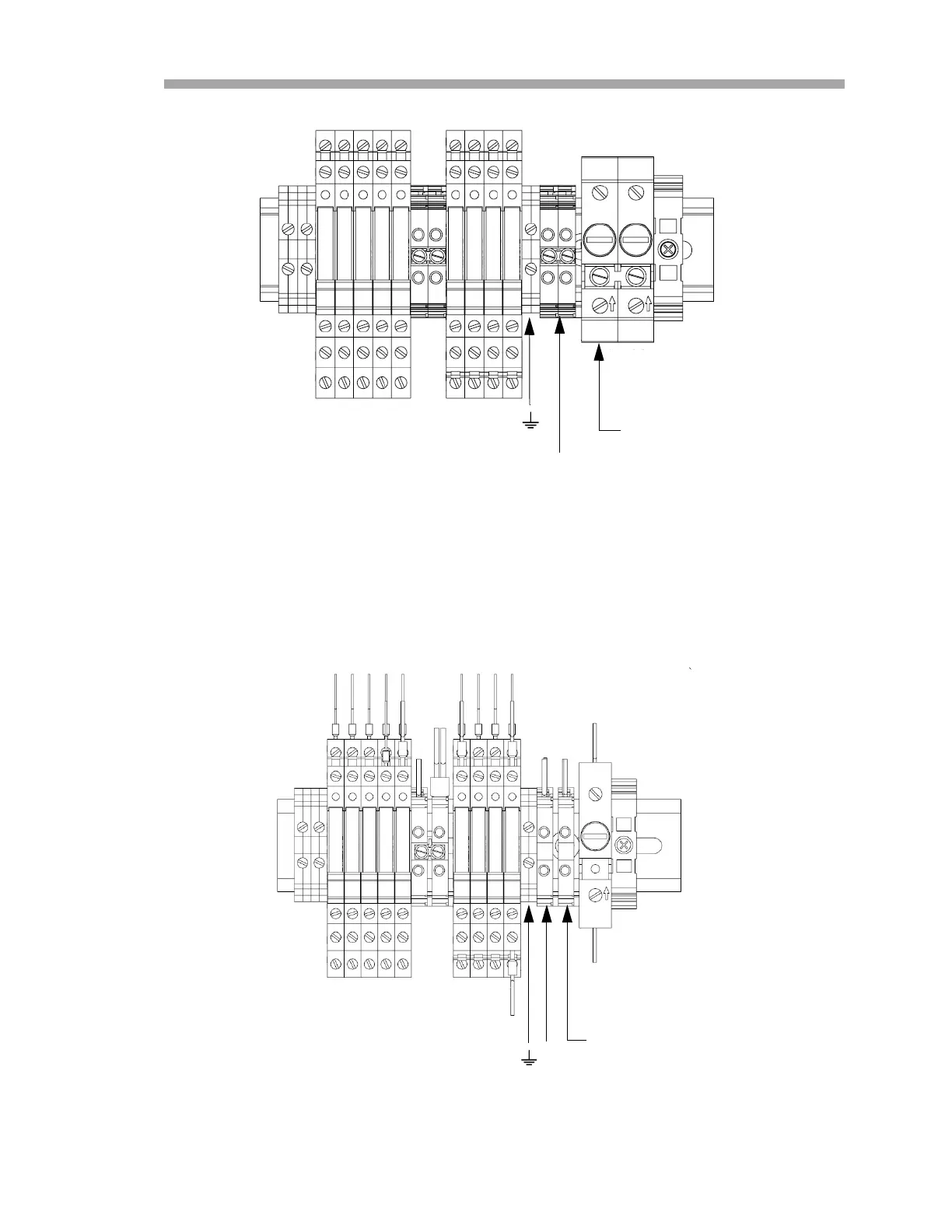

SpectraSensors Class 1 Division II analyzers use a non-incendive
protection method, and as such all portions of the local installation
codes apply. The maximum allowed inductance to resistance ratio
(L/R ratio) for the field wiring interface must be less than 25
µH/Ω.
Avoid jolting the instrument by dropping it or banging it against a
hard surface. Do not attempt to pick up the instrument using the
sample cell. Either action may disturb the optical alignment.
