Modbus settings
Instruction manual Ensite Pro Configuration Tool Page 55
If ‘RS-232C’ is selected, while in reality RS-485 hardware is applied,
communication can not be established.

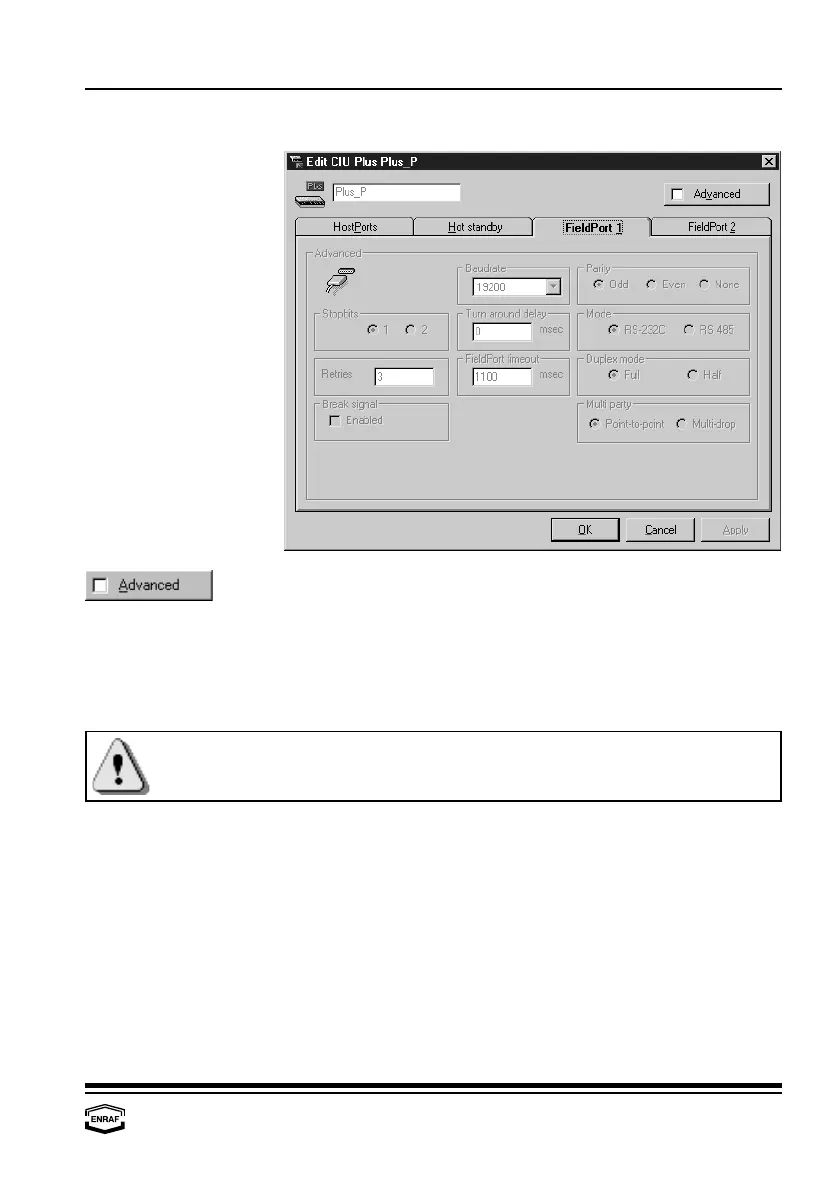

FieldPort 1 & 2
Baudrate
Select: 1200, 2400, 4800, 9600 or 19200
Parity
Select: Odd, Even or None
Stop bits
Select: 1 or 2
Turn around delay
Enter reply waiting time in ms (default = 0 ms)
Mode
Select: RS-232C or RS-485
Retries
Enter number of retries (default = 3)
FieldPort timeout
Enter timeout in ms (default = 1100 ms)
Duplex mode
Select: Full or Half
Break signal
Check to enable
Multi party
Select: Point-to-point or Multi-drop
