Installing Optional Mini-GBICs
3-4 Hardware Installation
2. Carefully aligntheMini‐GBICwiththeportslot.
3. PushtheMini‐GBICintotheportslotuntiltheMini‐GBIC“clicks”andlocks into
place.

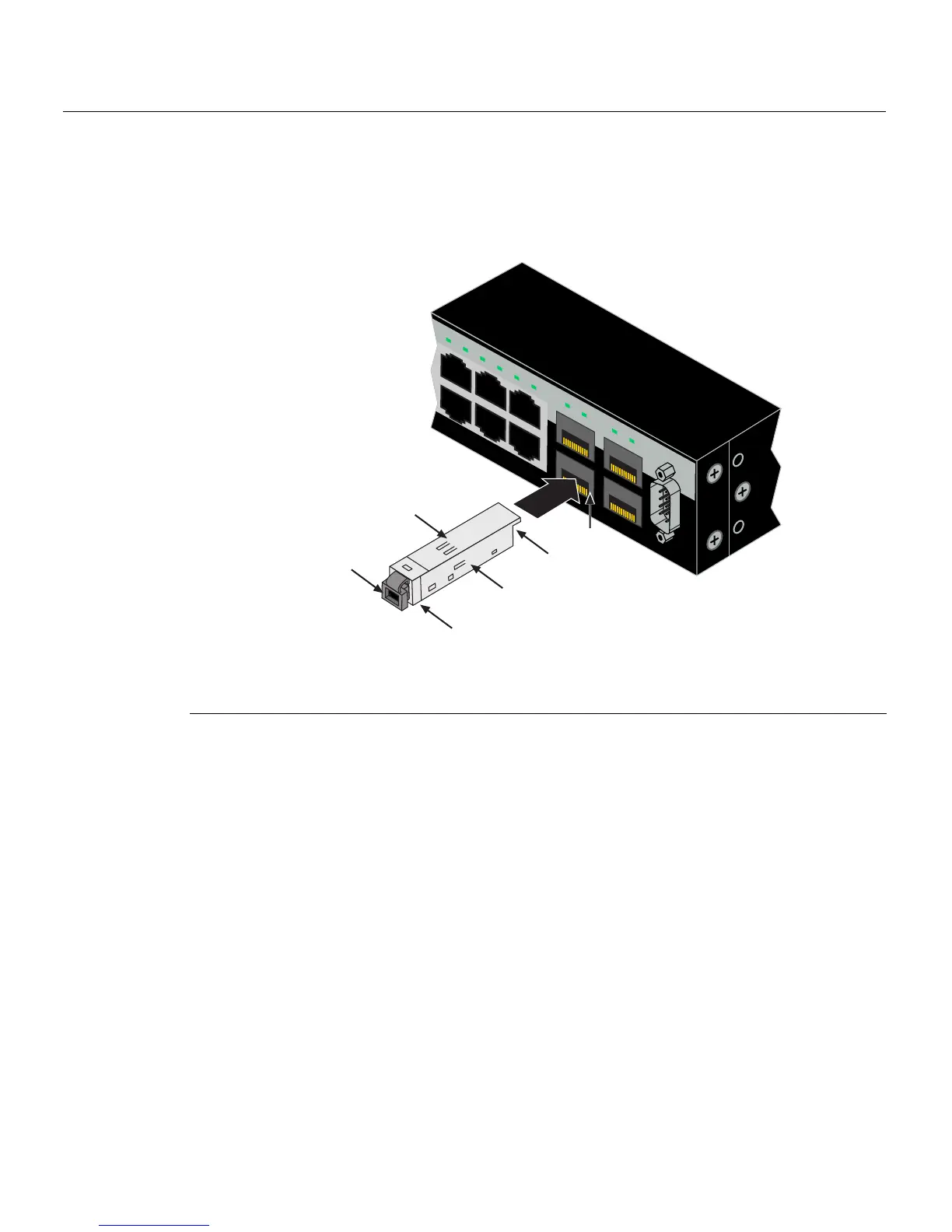

Figure 3-1 Mini-GBIC with MT-RJ Connector
1 Mini-GBIC (MGBIC-MT01) 4 Port slot
2 Mini-GBIC, top side 5 Protective dust cover
3 7-pin edge connector (insertion side) 6 Release tab
