Enterasys SecureStack C2 C2G124-48P - Eight-Wire Crossover Cable RJ45 Pinouts for 10;100;1000 BASE-TX

Connecting to the Network
3-24 Hardware Installation

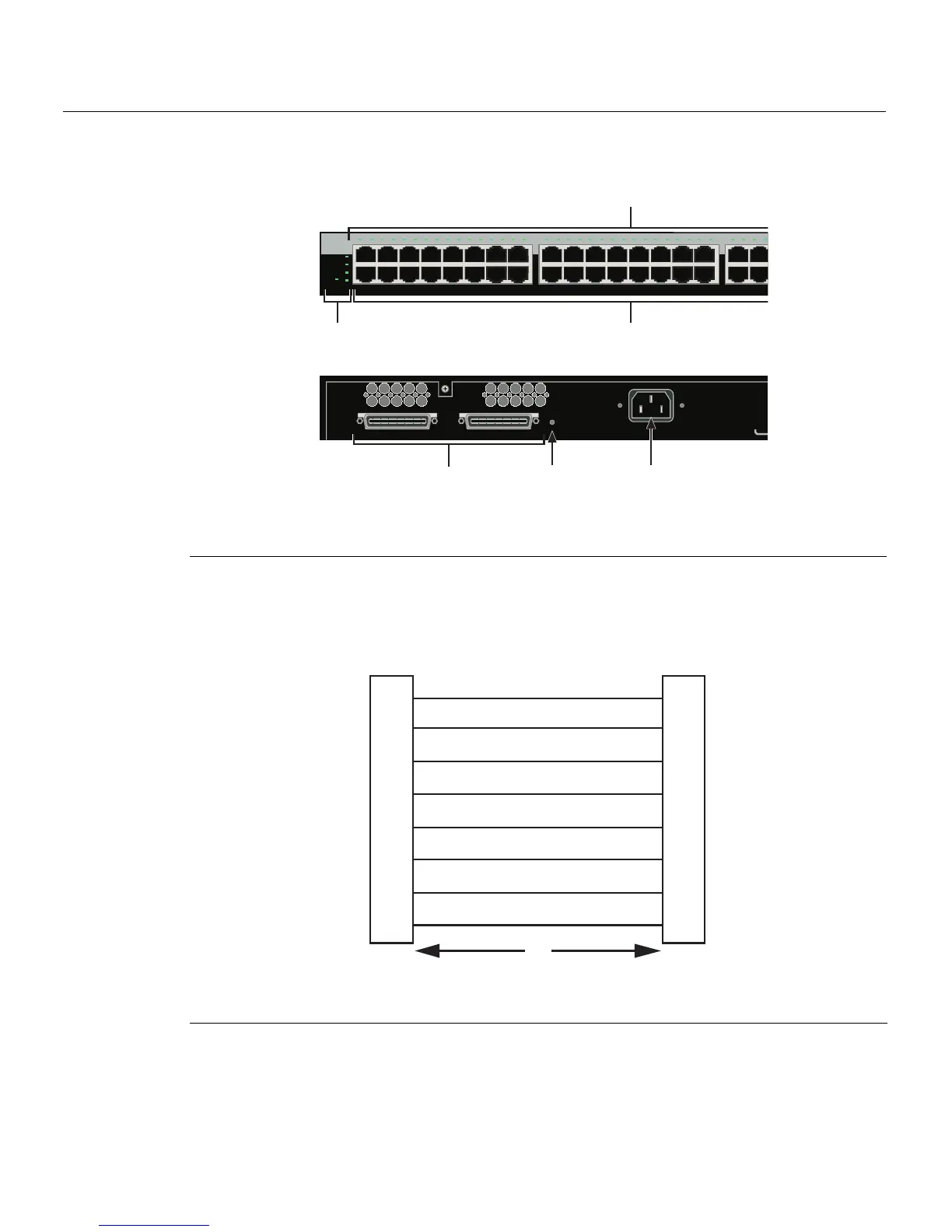

Figure 3-16 Eight-Wire Crossover Cable RJ45 Pinouts for 10/100/1000BASE-TX
Figure 3-17 Eight-Wire Straight-Through Cable RJ45 Pinouts for 10/100/
1000BASE-TX
1 RJ45 device port 3 RJ45-to-RJ45 crossover cable
2 Other device port
1 RJ45 device port 3 RJ45-to-RJ45 straight-through cable
2 Other device port
