2. Installation
96 RC700 / RC90 Option Fieldbus I/O Rev.14

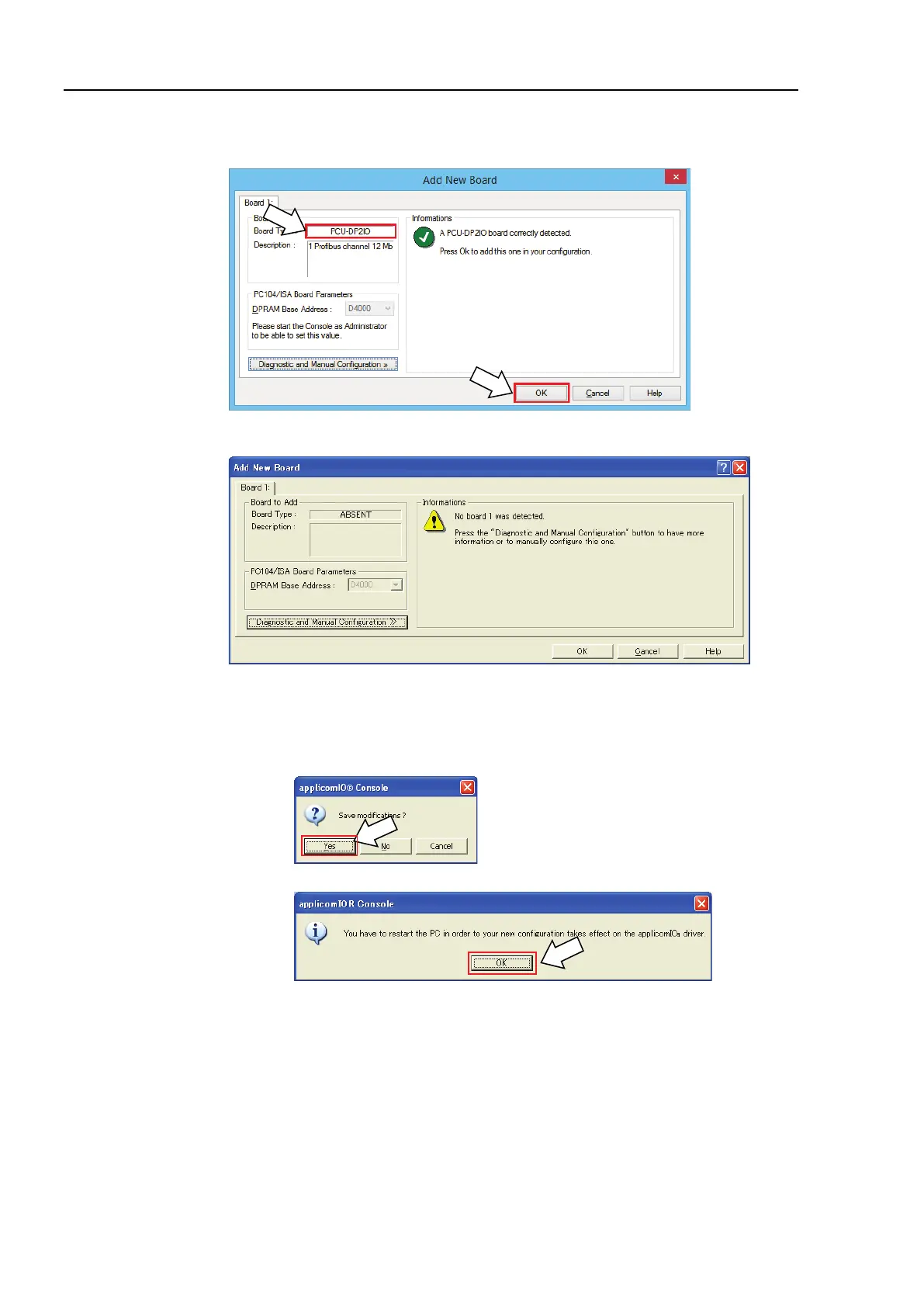

7. The [Add New Board] dialog box appears.
Confirm that “PCU-DP2IO” is displayed in [Board to Add]-[Board Type] and click
<OK>.
If the board cannot be detected, the following dialog box appears. Make sure that the
board is correctly inserted.
8. When you finish adding the PROFIBUS-DP master board manufactured by molex to
the applicomIO Console application, reboot the PC.
8-1 Close the applicomIO Console application.
When closing the applicomIO Console application, the following message
box appears. Click <Yes>.
8-2 The following dialog box appears. Click <OK>.
8-3 Reboot the Windows.
9. After the PC is rebooted, refer to the next section Master Mode and continue the step.
