Confirmation and Configuration of EPSON RC+ 7.0
When the EtherNet/IP slave board is installed to the Controller, it is recognized
automatically. Confirm whether EPSON RC+ 7.0 has recognized the EtherNet/IP slave
board using the following procedure.

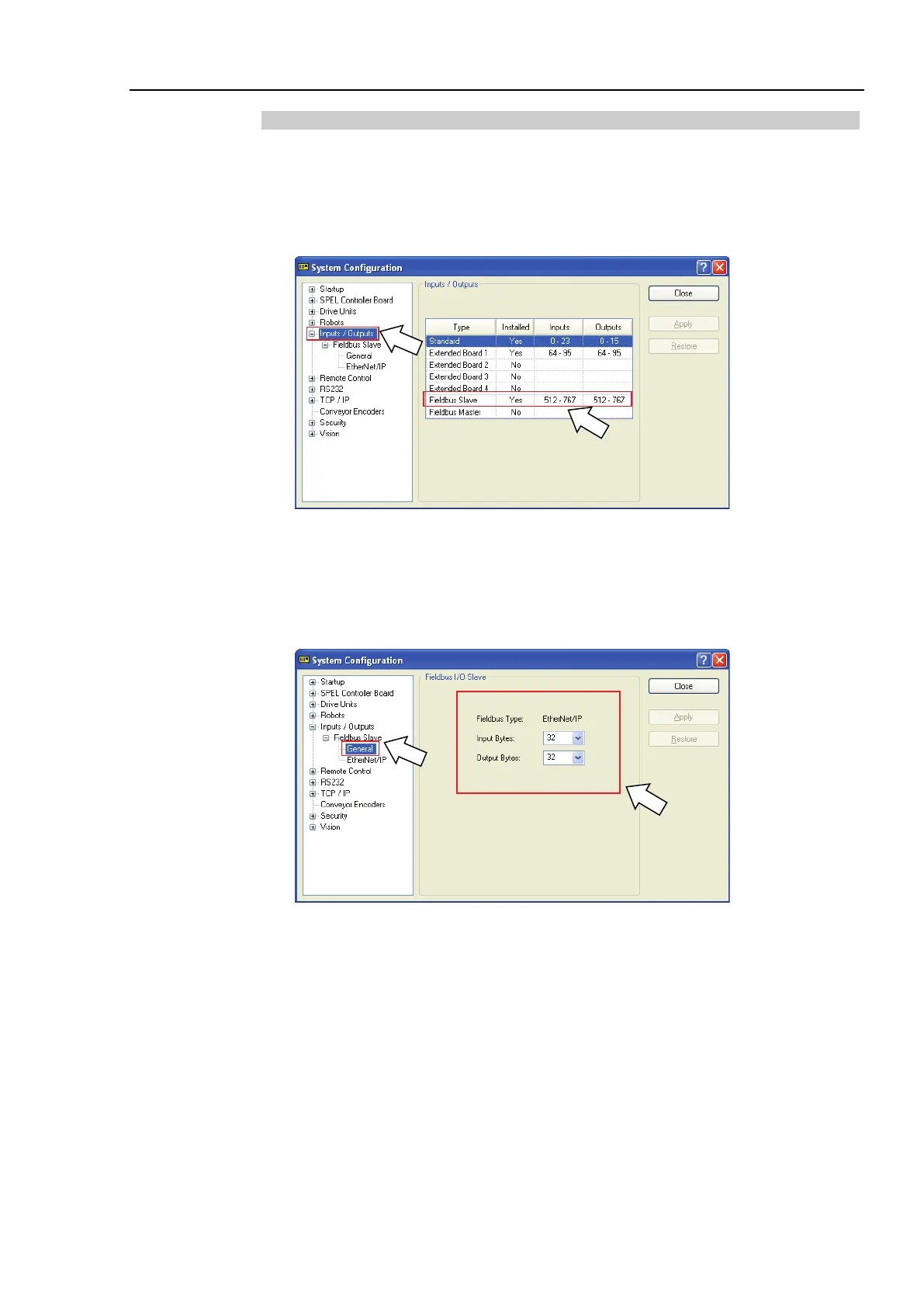

1. Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(2)
(3)
2. Select [Inputs / Outputs].
3. Confirm that the following items are displayed in “Fieldbus Slave”.
Installed : Yes
Inputs : 512-767 (default setting)
Outputs : 512-767 (default setting)
4. Select [Fieldbus Slave]-[General].
(4)
(5)
5. Confirm that the following items are displayed.
Fieldbus Type : EtherNet/IP
Input Bytes : 32 (default setting)
Output Bytes : 32 (default setting)
6. Click <Close>.
