Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 137
SE Group Confidential (Related Staff Only)
3.4.4.9 Power Supply Board Cooling Fan
1. Remove the Board Box Cover. (p117)
2. Disconnect the cable from the connector (CN40) on the Main Board.
3. Release the cable from the clamp and wire saddle.

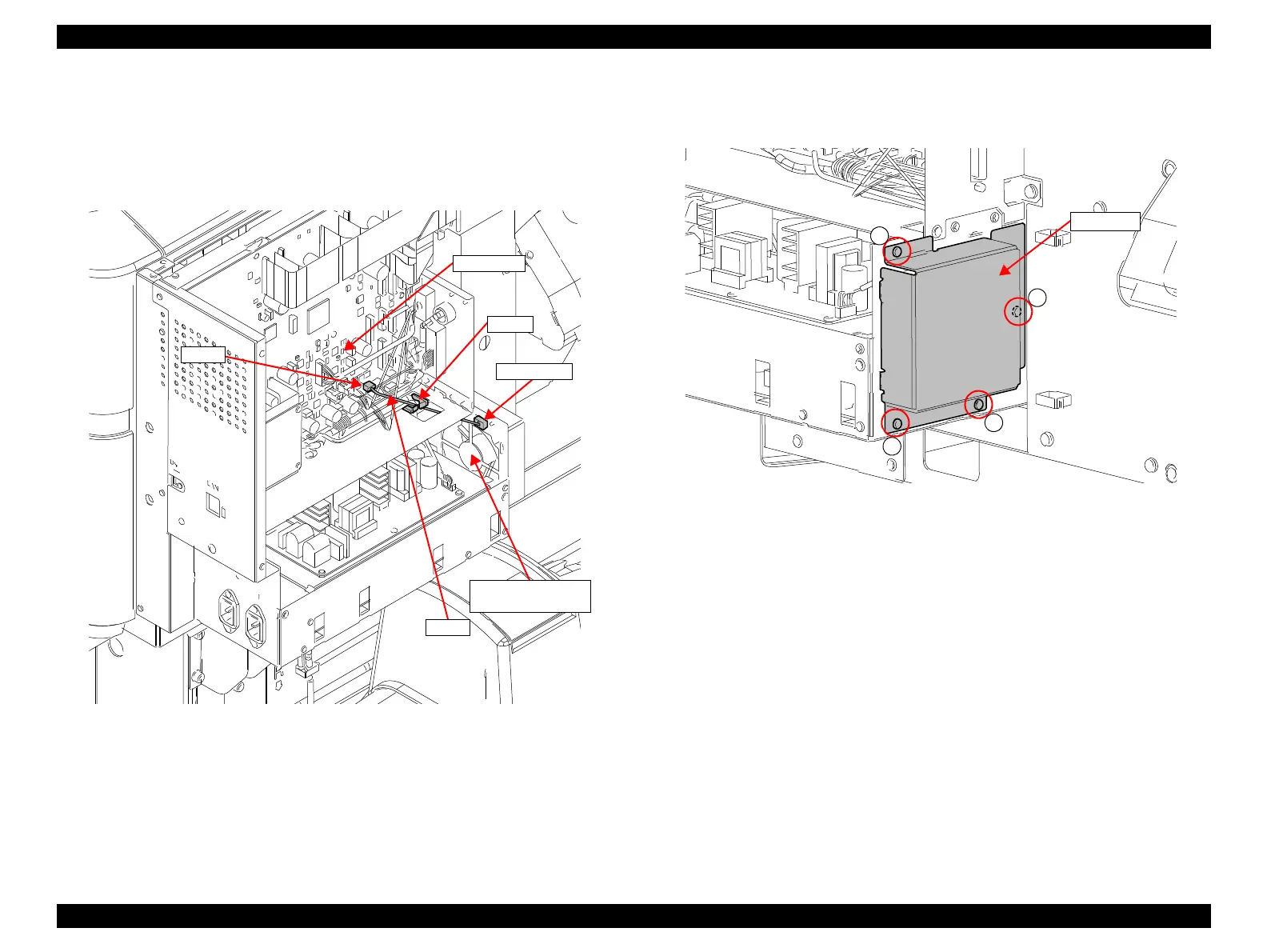

Figure 3-69. Releasing the cable
4. Remove the four screws, and remove the Fan Cover.
A)Silver M3x6 Bind machine screw: 4 pcs
Figure 3-70. Removing the Fan Cover
Main Board
CN40
Power Supply Board
Cooling Fan
Clamp
Wire saddle
Cable
Fan Cover
A
A
A
A
