AFTER REPLACEMENT
1. Install the eight ink cartridges for service. (p207)
2. Lower the lock levers.
3. Turn the printer on.
4. Select Cleaning.
Select CL3 and all channels and press the [Run] button to perform CL3.
5. Select Nozzle Check.
Select Nozzle Check Pattern Print, and press the [Run] button to perform the
nozzle check. (p311)
6. Select Switch between Ink cartridges and Ink tanks.
Select All channels and Ink Cartridge for service, and press the [Run] button to
validate the ink tanks. (p329)
7. Turn off the printer.
8. Remove the cartridge, and install the user’s ink tank.
9. Lower the lock levers.
10. Turn on the printer.
11. Confirm that there are no errors.

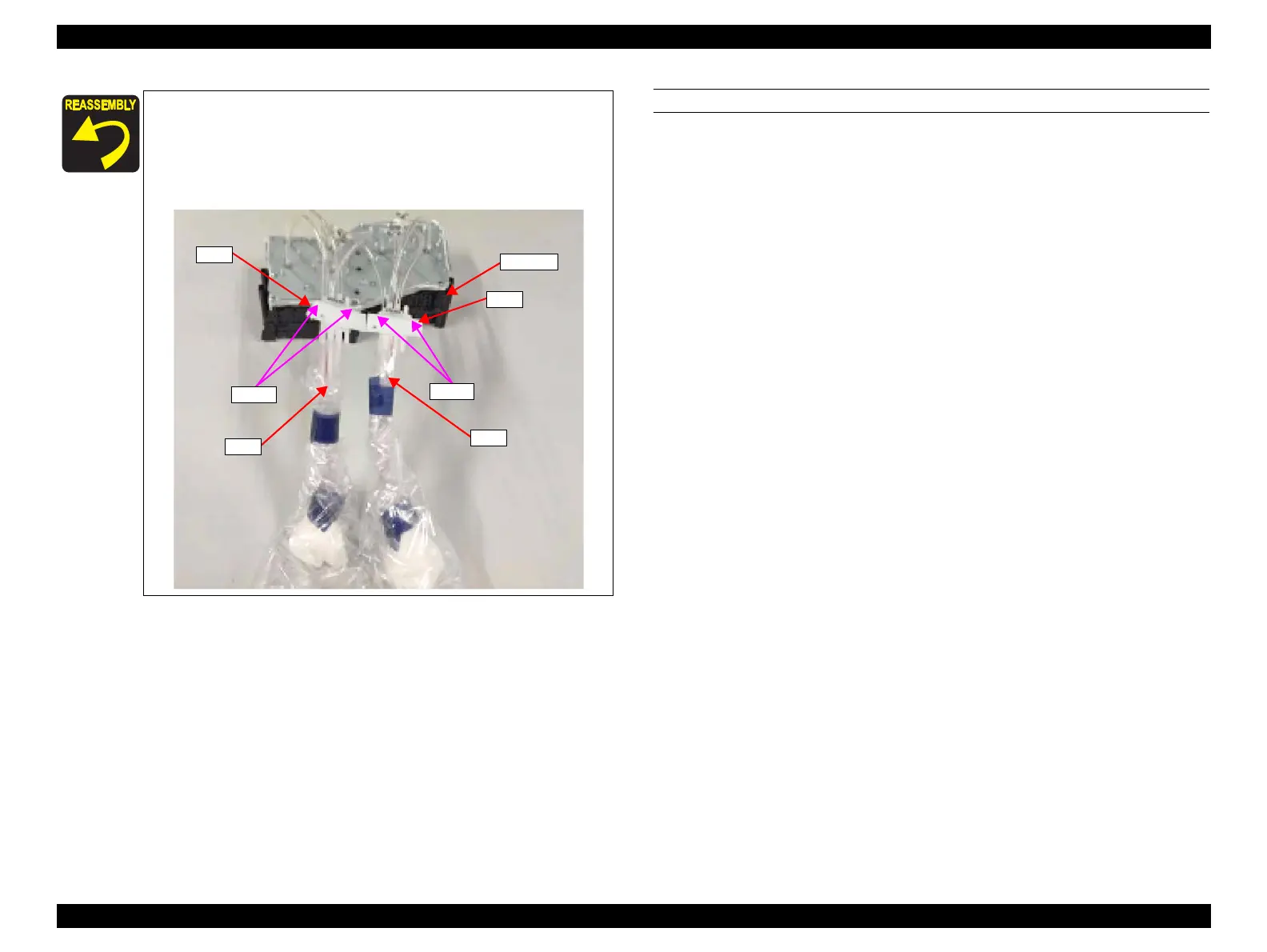

Before installing the new Duct CR, be careful of the following
points.
Loosen the two each screws of the joints, and remove the tubes.
Since ink still remains in the removed tube, make sure to
dispose of it according to local regulations.
Joint
Screws
Duct CR
Joint
Screws
Tube
Tube
