SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 217
SE Group Confidential (Related Staff Only)
3.4.6.7 PF Timing Belt
1. Remove the Left Rear Cover. (p110)
2. Remove the Left Upper Cover. (p111)
3. Remove the Left Cover. (p114)
4. Loosen the two screws (A) that secure the PF Motor Mounting Plate.
5. While pressing the mounting plate in the direction of the arrow, loosen the tension
of the PF Timing Belt, and remove the belt from the pinion gear of the PF Motor.
6. Disconnect the FFC from the PF Encoder, and release the FFC from the PF
Encoder Holder.
7. Remove the PF Timing Belt.

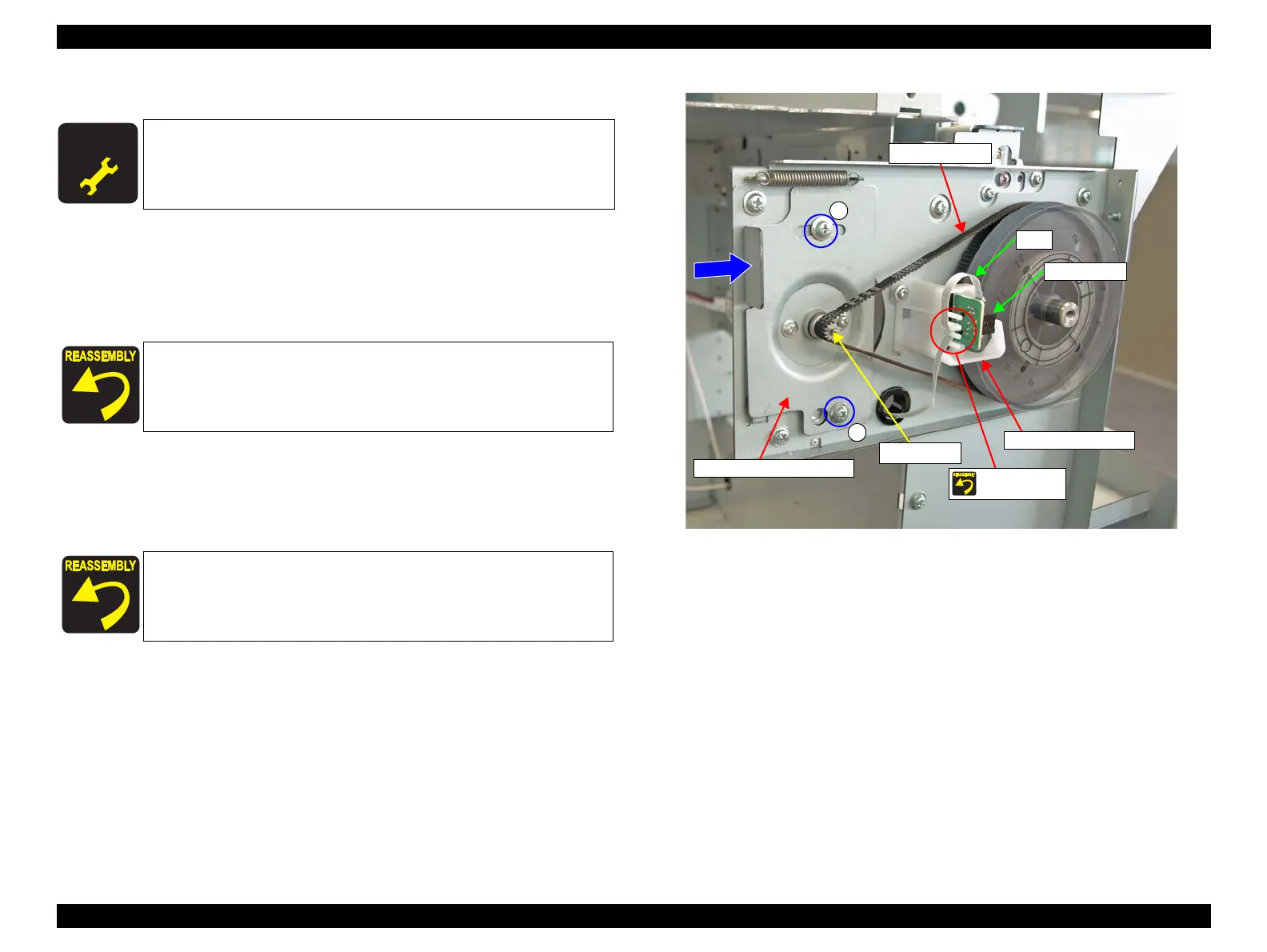

Figure 3-167. Removing the PF Timing Belt
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p260) and make sure to
perform the specified operations including required adjustment.
Before tightening the screw A, move the PF Motor Mounting Plate
frontward and rearward several times, and make sure that the
plate moves smoothly and tension of the tension spring is applied
properly.
Make sure to route the FFC through the pins of the PF Encoder
Holder.
A
A
Pinion gear
PF Timing Belt
FFC
PF Encoder
PF Motor Mounting Plate
PF Encoder Holder
Route the cable
To Next Page
