Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 225
SE Group Confidential (Related Staff Only)
3.4.6.11 Driven Roller Gear
1. Perform Step 1 to Step 6 of “3.4.6.2 Media Loading Lever Sensor” (p211).
2. Remove the six screws and remove the shaft.
A) Silver M3x8 P-tite screw with built-in washer: 6 pcs

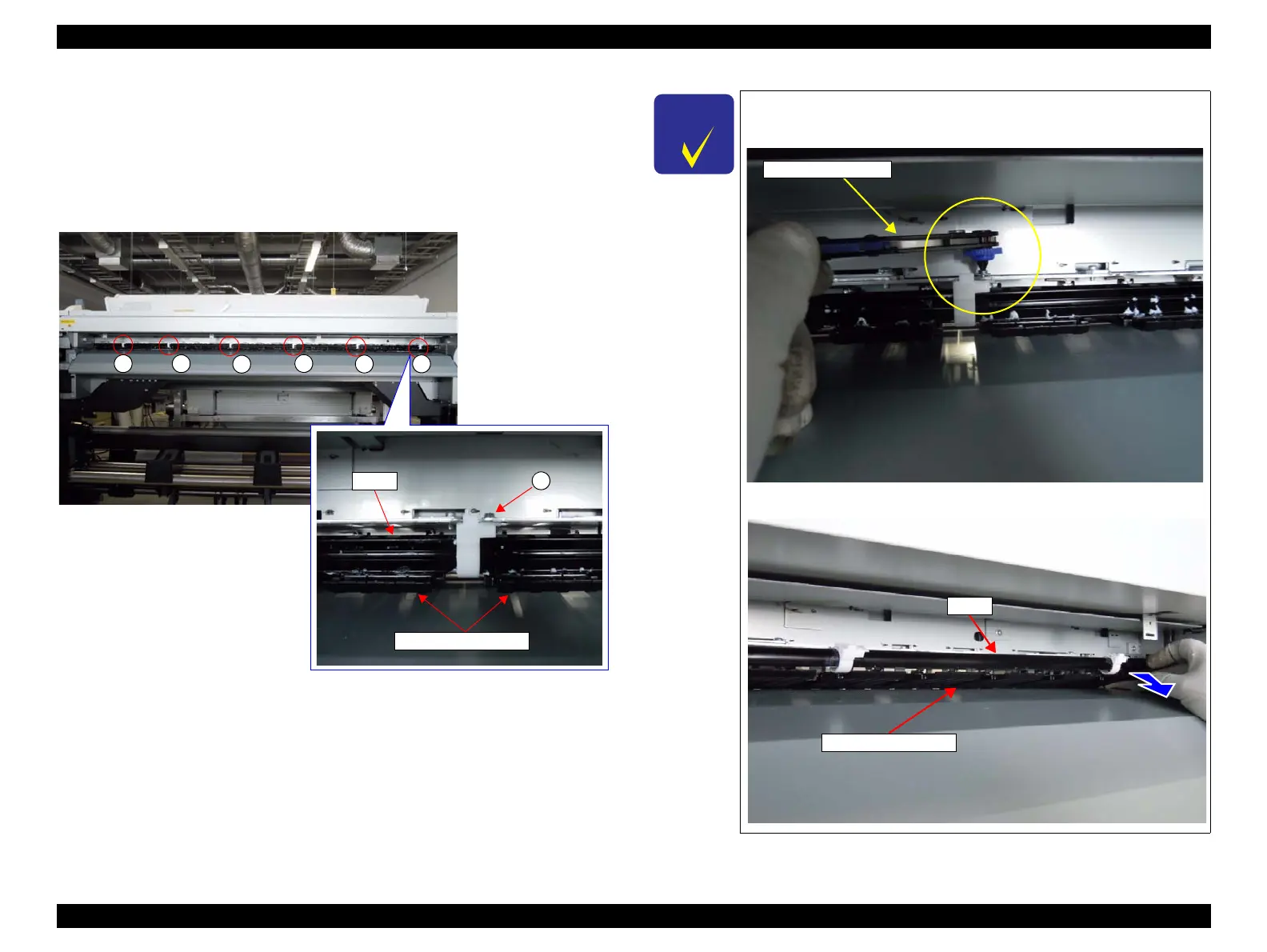

Figure 3-176. Removing the shaft
A A
A
A
A
A
A
Shaft
Driven Roller holder
C H E C K
P O I N T
 Remove the screw shown below using a ratchet screwdriver
with a 20-mm or shorter head.
 If remove the shaft, from right side as picture.
Ratchet screwdriver
Shaft
Driven Roller holder
