Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 224
SE Group Confidential (Related Staff Only)

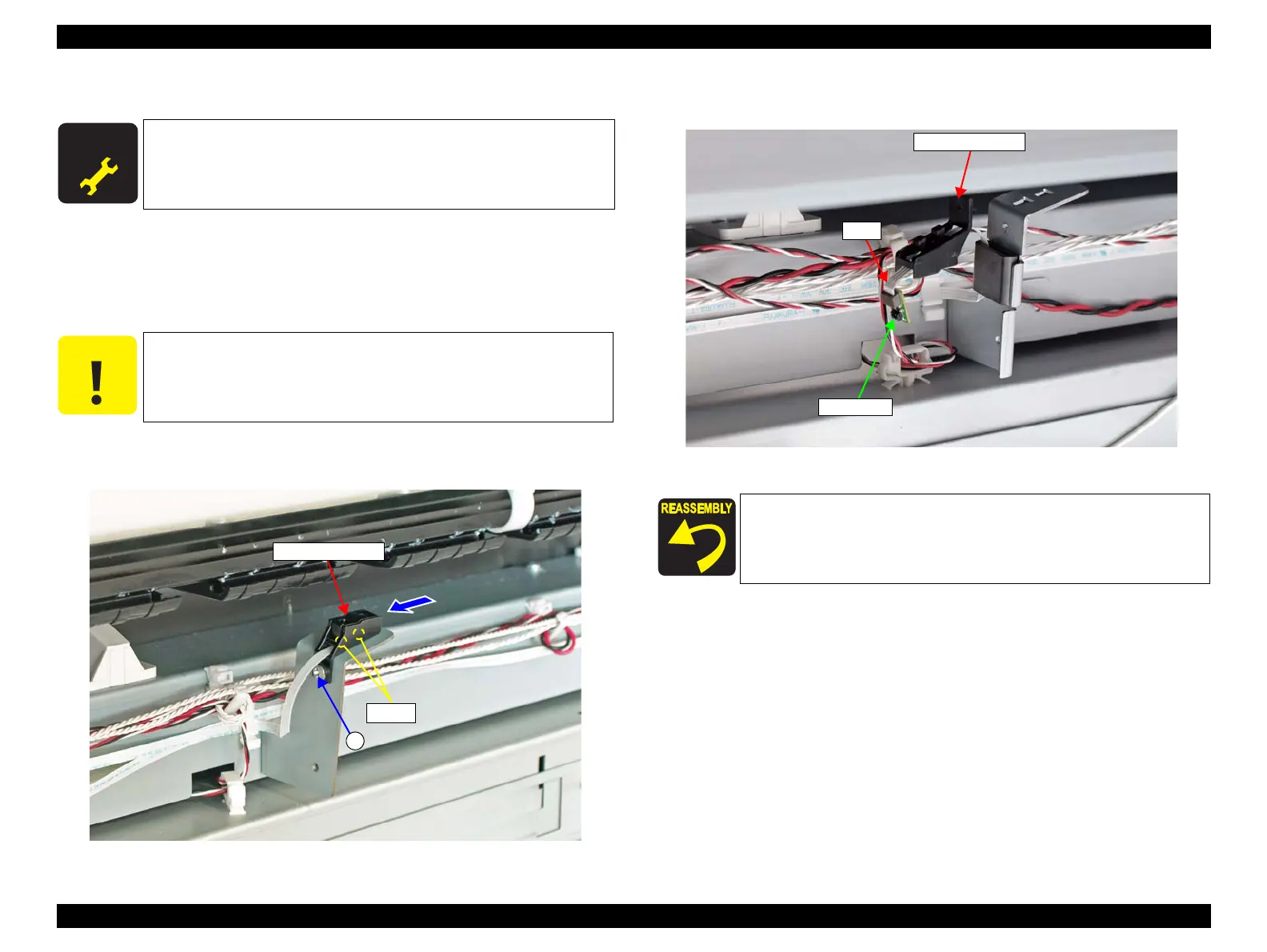

3.4.6.10 PE Sensor
1. Remove the Loading Guide. (See Step 7 in “3.4.6.12 PF Roller Center
Support” (P. 227)
)
2. Remove the screw, and remove the PE Sensor Holder.
A) Silver M3x8 S-tite screw: 1 pcs
3. Slide the PE Sensor Holder in the direction of the arrow to disengage the two
hooks.
Figure 3-174. Removing the PE Sensor Holder
4. Remove the PE Sensor from the PE Sensor Holder, and disconnect the FFC.
Figure 3-175. Removing the PE Sensor
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p260) and make sure to
perform the specified operations including required adjustment.
C A U T I O N
When removing/attaching the screw, be careful not to scratch the
FFC.
Hooks
PE Sensor Holder
A
The area around the PE Sensor is shaded with acetate tape. Make
sure to restore the tape you peeled when disassembling back to the
original condition.
PE Sensor Holder
PE Sensor
FFC
