SC-F9200 Series Revision B
MAINTENANCE Cleaning 379
SE Group Confidential (Related Staff Only)
3. Wipe off the ink, lint and dust accumulated on the colored area shown in Figure
5-9 and Figure 5-10.
Ink easily adheres to the outer periphery or gap (indicated by the arrows), so
be sure to wipe off any ink found.
If any lint or dust is caught, hook it using the tip of a Cleaning Stick.
x

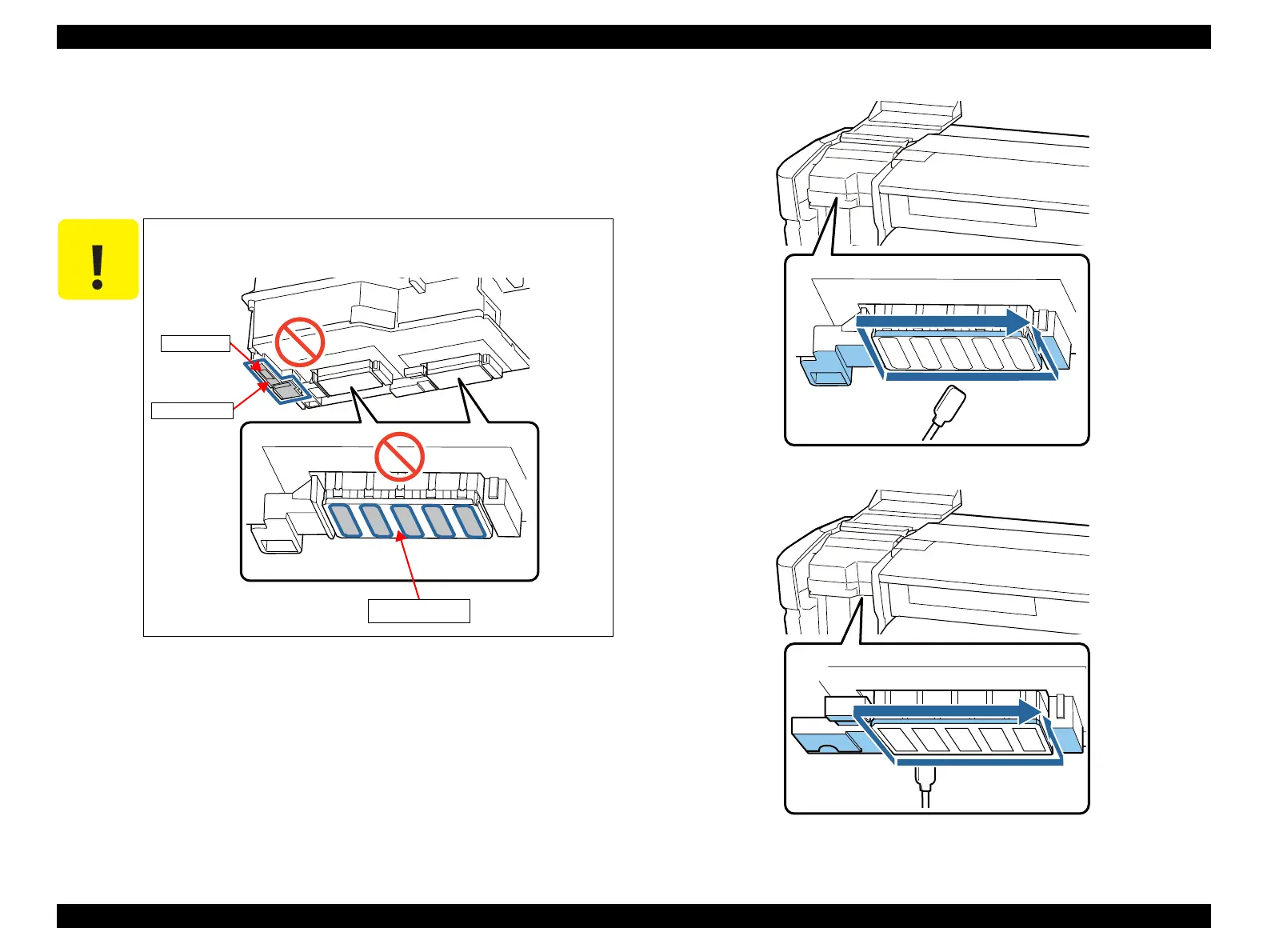

Figure 5-9. Cleaning the Print Head (left side)
Figure 5-10. Cleaning the Print Head (right side)
C A U T I O N
Do not touch the parts framed below. Failure to observe this
precaution could affect print quality
Nozzle surface
IM Sensor
PW Sensor
