EPSON Stylus COLOR 3000
Rev. A
3-3
5
ASF Transmission Gear Set
LD Gear
E-ring
Bushing
PF Roller
Edge Guide
Bushing
LD shaft
LD Rollers

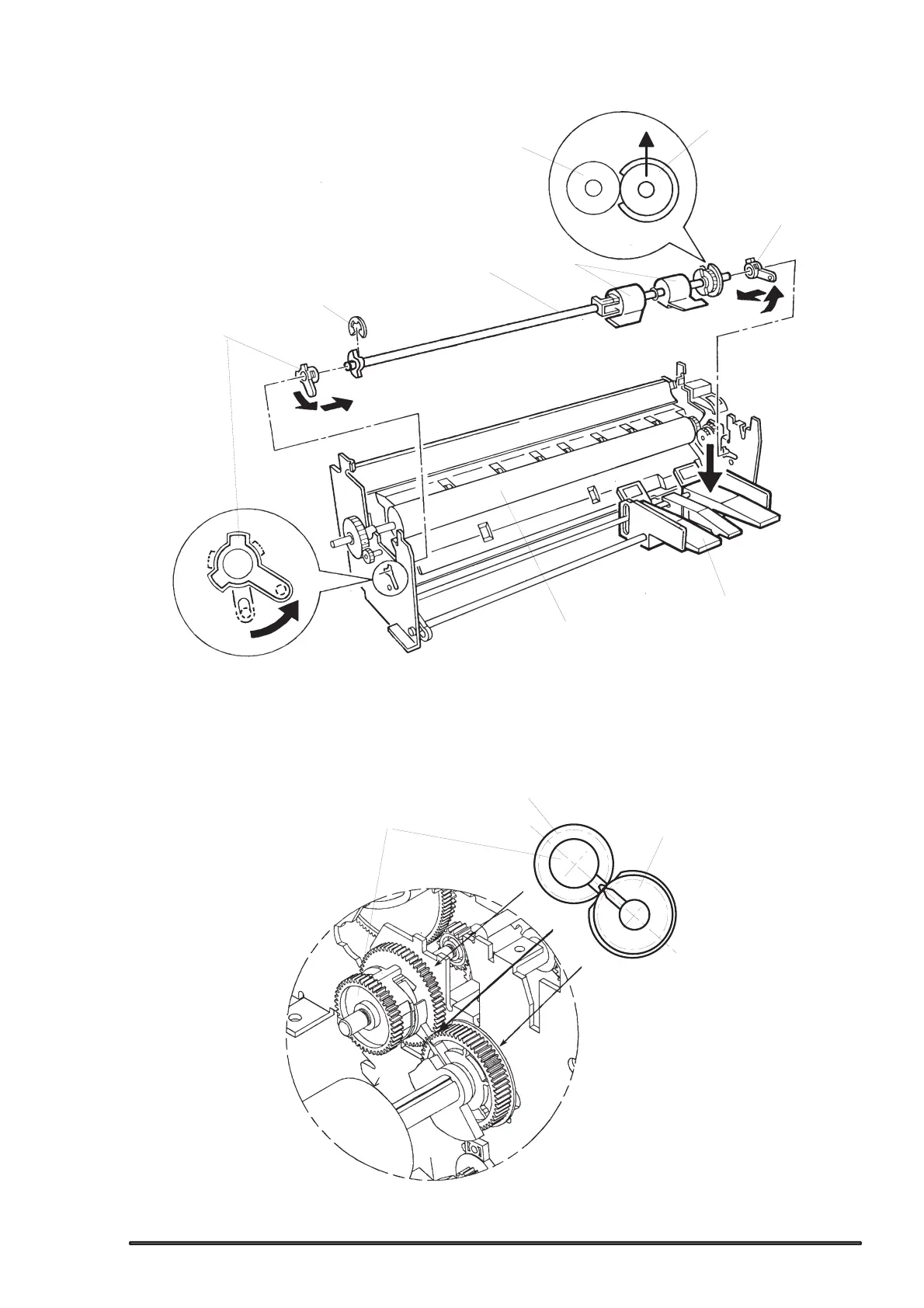

Figure 3-32. LD shaft Removal
Gear ,29 (ASF Transmission Gear Set)
LD Gear
ASF Transmission Ratchet
Figure 3-33. ASF Gear Set Engagement
